Featuring:

Hammer Mills

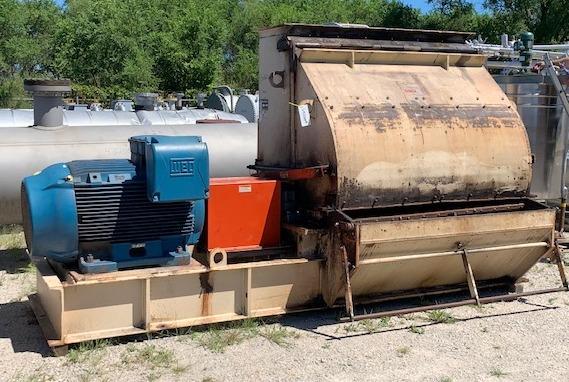

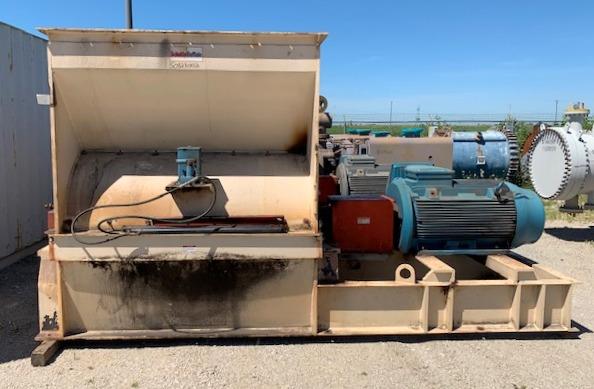

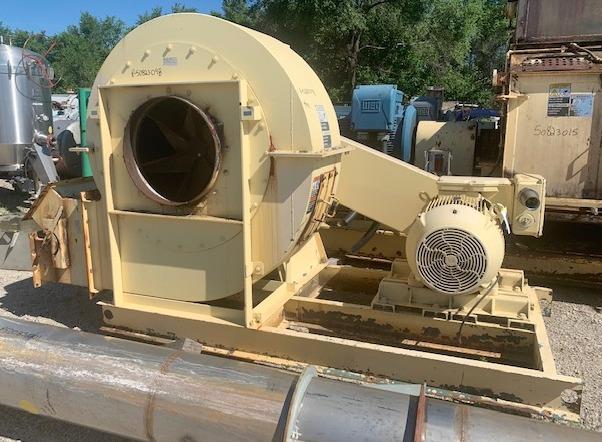

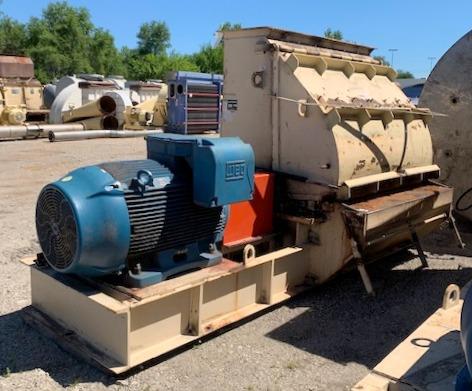

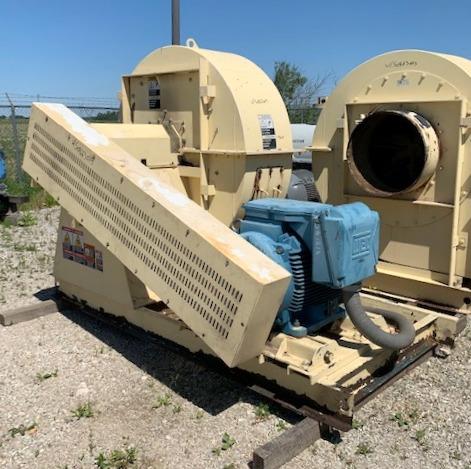

Schutte-Buffalo-Astec Hammermill, Model AHM-20, Carbon Steel. Approximate (2) 48" diameter x 24" wide rotors. 2-3/4"w x 4"L x 5/16" thick swinging hammers, approx 7 rows of (14 hammers) 2 sections, 3/16" screen. 15"W x 60" Long Top feed with hopper, 60-1/2"L x 11"T bottom discharge. Driven by a 600 HP, 3/60/460 volt, 1790 rpm motor. Mounted on a frame. Includes a Twin City blower, Type RBR-SW, size 926, driven by a 200 HP, 3/60/230/460 volt, 1785 rpm motor. Astec Serial # 16-086-299260-22-1.

Schutte-Buffalo-Astec Hammermill, Model AHM-20, Carbon Steel. Approximate (2) 48" diameter x 24" wide rotors. 2-3/4" wide x 4" long x 5/16" thick swinging hammers, approximate 7 rows of (14 hammers) 2 sections, 3/16" screen. 15" wide x 60" long Top feed with hopper, 60-1/2" long x 11" tall bottom discharge. Driven by a 600 HP, 3/60/460 volt, 1790 rpm motor. Mounted on a frame. Includes a Twin City blower, Type RBR-SW, size 926, driven by a 200 hp, 3/60/230/460 volt, 1785 rpm motor. Astec Serial # 16-086-299260-22-1.

Schutte-Buffalo-Astec Hammermill, Model AHM-20, Carbon Steel. Approximate 48" diameter x 50" wide rotor. Top feed with hopper, bottom discharge. Driven by a 600 HP, 3/60/460 volt, 1790 rpm motor. Mounted on a frame. Serial# 16-087-299328-19-1. Includes a Twin City blower, Type RBR-SW, size 926, driven by a 200 HP, 3/60/230/460 volt, 1785 rpm motor. Astec Serial # 16-087-299328-19-1.

Schutte-Buffalo-Astec Hammermill, Model AHM-20, Carbon Steel. Approximate 48" diameter x 50" wide rotor. Top feed with hopper, bottom discharge. Driven by a 600 HP, 3/60/460 volt, 1790 rpm motor. Mounted on a frame. Serial # 16-087-299328-19-1. Includes a Twin City blower, Type RBR-SW, size 926, driven by a 200 HP, 3/60/230/460 volt, 1785 rpm motor. Astec Serial # 16-087-299328-19-1.

Schutte-Buffalo-Astec Hammermill, Model AHM-20, Carbon Steel. Approximate 48" diameter x 50" wide rotor. Top feed with hopper, bottom discharge. Driven by a 600 HP, 3/60/460 volt, 1790 rpm motor. Mounted on a frame. Serial # 16088HM2. Includes a Twin City blower, Type RBR-SW, size 926, driven by a 200 HP, 3/60/230/460 volt, 1785 rpm motor. Astec Serial # 16088HM2.

Wood Grinders

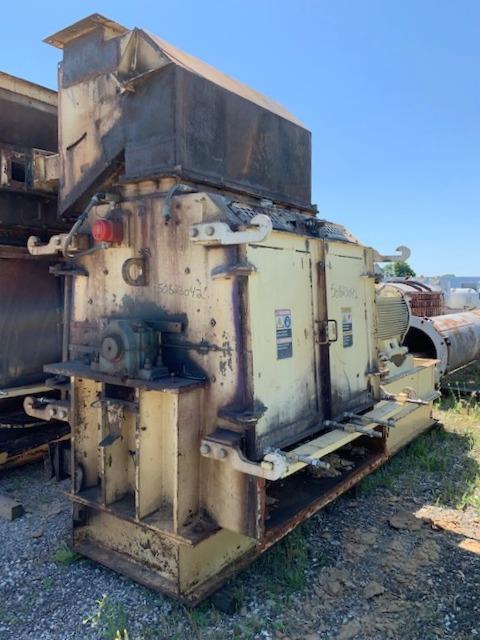

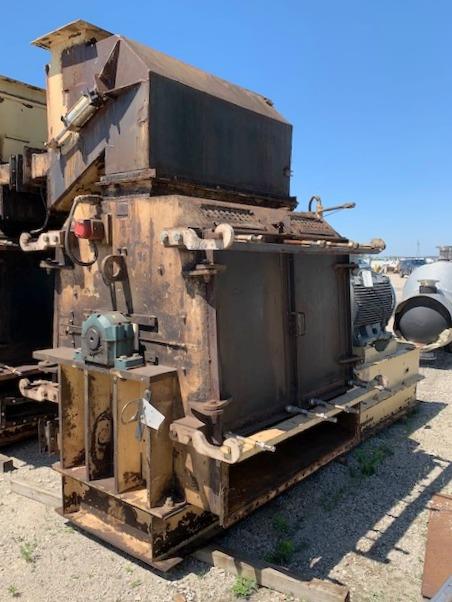

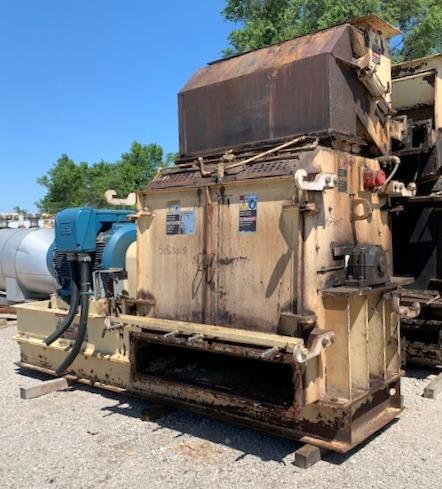

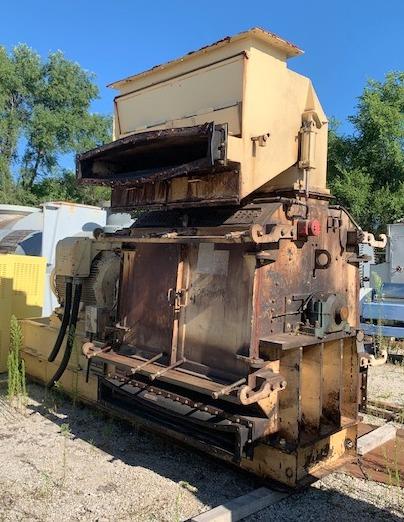

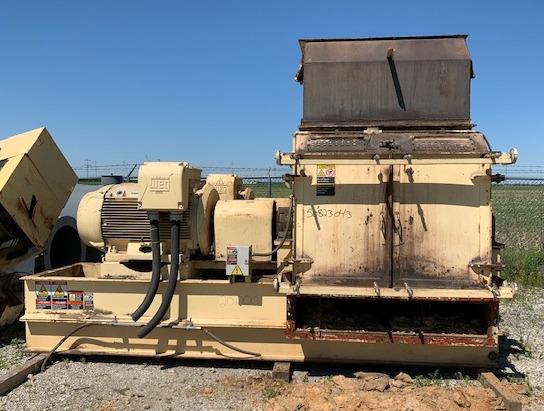

Schutte-Buffalo 15 Series Wood Grinders, Model 15300, Carbon Steel. Rotor approximate 44" diameter x 72" long with approximate (6) rows of 23 hammers each row, 3" wide x 3/4" thick swinging hammers, tip speed 20,700. Top feed approximately 72" x 19", bottom discharge, bottom screen approximate 5040 square inch area, clam shell housing. Driven by a 500 HP, 3/60/460 volt, 1785 rpm motor. Mounted on an I beam frame. Serial # 17-12027A

Schutte-Buffalo 15 Series Wood Grinder, Model 15300, Carbon Steel. Rotor approximate 44" diameter x 72" long with approximate (6) rows of 23 hammers each row, 3" wide x 3/4" thick swinging hammers, tip speed 20,700. Top feed approximately 72" x 19", bottom discharge, bottom screen approximate 5040 square inch area, clam shell housing. Driven by a 500 HP, 3/60/460 volt, 1785 rpm motor. Mounted on an I beam frame. Serial # 1709002C.

Schutte-Buffalo 15 Series Wood Grinder, Model 15300, Carbon Steel. Rotor approximate 44" diameter x 72" long with approximate (6) rows of 23 hammers each row, 3" wide x 3/4" thick swinging hammers, tip speed 20,700. Top feed approximately 72" x 19", bottom discharge, bottom screen approximate 5040 square inch area, clam shell housing. Driven by a 500 HP, 3/60/460 volt, 1785 rpm motor. Mounted on an I beam frame. Serial# 1709002B.

Schutte-Buffalo 15 Series Wood Grinder, Model 15300, Carbon Steel. Rotor approximate 44" diameter x 72" long with approximate (6) rows of 23 hammers each row, 3" wide x 3/4" thick swinging hammers, tip speed 20,700. Top feed approximately 72" x 19", bottom discharge, bottom screen approximate 5040 square inch area, clam shell housing. Driven by a 500 HP, 3/60/460 volt, 1785 rpm motor. Mounted on an I beam frame. Serial # 1709002A.

Pumps

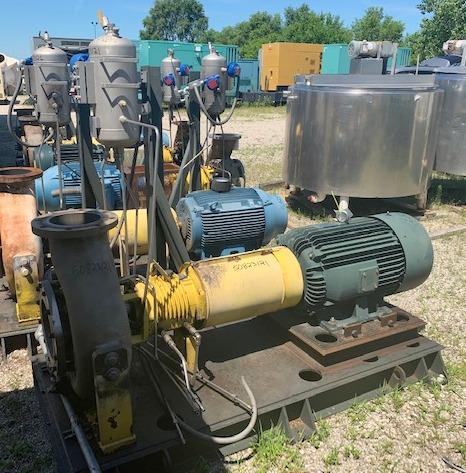

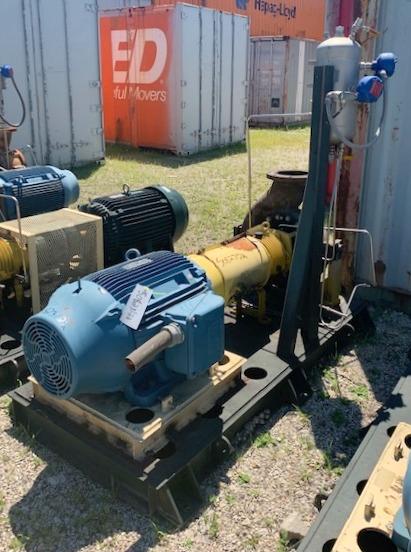

Blackmer System One Centrifugal Pumps, Model FRM, Stainless Steel. Size 8 X 10-13, approximate 4200 gallons per minute at 110' head at 275 psi at 100 degrees F. Driven by a 100 HP, 3/60/230/460 volt, 1775 rpm motor. Housing 316 stainless steel, internals (impellar) CD4MCU duplex stainless steel. Frame mounted. Serial# 1108454FM.

Blackmer System One Centrifugal Pumps; Model FRM. Size 8 X 10-13; approximate 4200 gallons per minute at 110' head at 275 psi at 100 degrees F. Driven by a 100 HP; 3/60/230/460 volt; 1775 rpm motor. Housing carbon steel; internals (impellar) CD4MCU duplex stainless steel. Frame mounted. Serial# 1080014FM.
Blackmer System One Centrifugal Pumps; Model FRM. Size 8 X 10-13; approximate 4200 gallons per minute at 110' head at 275 psi at 100 degrees F. Driven by a 100 HP; 3/60/230/460 volt; 1775 rpm motor. Housing carbon steel; internals (impellar) CD4MCU duplex stainless steel. Serial # 1080141FM.

Blackmer System One Centrifugal Pumps; Model FRM. Size 8 X 10-13; approximate 4200 gallons per minute at 110' head at 275 psi at 100 degrees F. Driven by a 100 HP; 3/60/230/460 volt; 1775 rpm motor. Housing carbon steel; internals (impellar) CD4MCU duplex stainless steel. Serial# 1094377FM.

Blackmer System One Centrifugal Pumps; Model FRM. Size 8 X 10-13; approximate 4200 gallons per minute at 110' head at 275 psi at 100 degrees F. Driven by a 100 HP; 3/60/230/460 volt; 1775 rpm motor. Housing 304 stainless steel; internals (impellar) CD4MCU duplex stainless steel. Serial#1094375FM.
