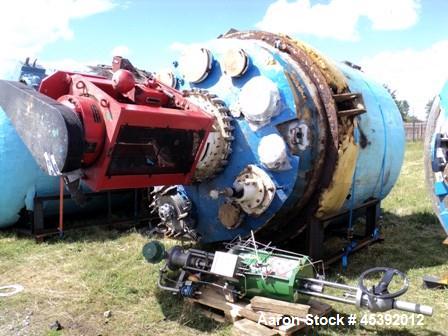

Used- 18,000 Litre Pfaudler Balfour White Glass Lined Reactor, Model CE16000
Stock# 45392012
Used- Pfaudler-Balfour Glass Lined Reactor, 16000 Liter (4226 gallon) Working Capacity, Model CE16000, Nucerite 8000 White Glass. Approximately 2600mm (102.36”) diameter x 4435mm (118") over welded dished top and bottom heads. Internal rated 6.9 bar/Full Vacuum design pressure at -40 to 200 degrees C., jacket rated 6.2 bar/full vacuum design pressure at -40 to 200 degrees C. Unit has top entry 3 blade retreat curve white glass agitator with top mounted drive 30 kW, 3/50/380-415 volt, 1471/1477 rpm motor with VSO 6 gearbox, ratio 5 to 1, approximate 90 rpm. Includes a 2 finger baffle, and a Schuf Hastelloy discharge valve. Mounted on (4) lugs.
Used- Pfaudler-Balfour Glass Lined Reactor, 16000 Liter (4226 gallon) Working Capacity, Model CE16000, Nucerite 8000 White Glass. Approximately 2600mm (102.36”) diameter x 4435mm (118") over welded dished top and bottom heads. Internal rated 6.9 bar/Full Vacuum design pressure at -40 to 200 degrees C., jacket rated 6.2 bar/full vacuum design pressure at -40 to 200 degrees C. Unit has top entry 3 blade retreat curve white glass agitator with top mounted drive 30 kW, 3/50/380-415 volt, 1471/1477 rpm motor with VSO 6 gearbox, ratio 5 to 1, approximate 90 rpm. Includes a 2 finger baffle, and a Schuf Hastelloy discharge valve. Mounted on (4) lugs.
