Used- Pfaudler Glass Lined Reactor, 2114 gallon (8,000 liter), 9145 white glass, vertical. Welded dished top and bottom. Int...

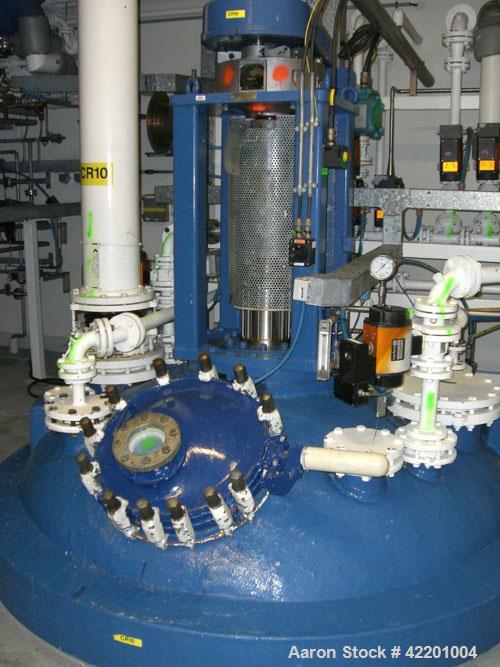

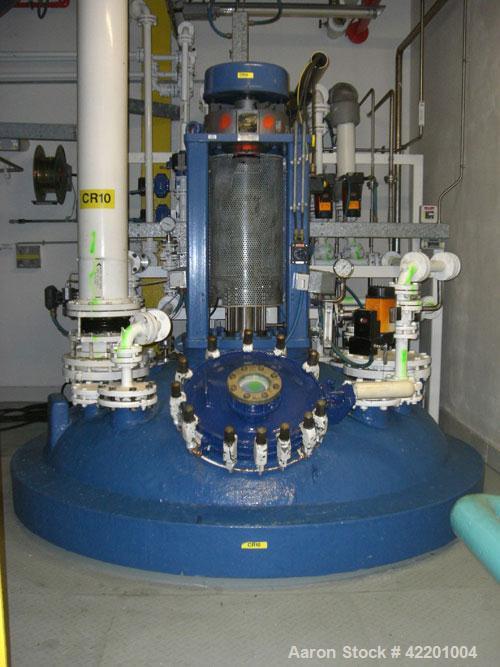

Used- Pfaudler Glass Lined Reactor, 2114 gallon (8,000 liter), 9145 white glass, vertical. Welded dished top and bottom. Internal rated 6.6 bar/full vacuum (95 psi/FV) at -29 to 200 deg C (-20 to 392 F). Mild steel jacket rated 6.6 bar/full vacuum (95 psi/FV) at -29 to 200 deg C (-20 to 392 F). Top mounted 3 blade retreat curve agitator with Pfaudler type VSO8 drive and belt driven by 11 kw, 3/50/415 volt, 1460 rpm motor. Mounted on (3) mild steel side support lugs.
