Used- Northland Approximate 24 Gallons Stainless Reactor

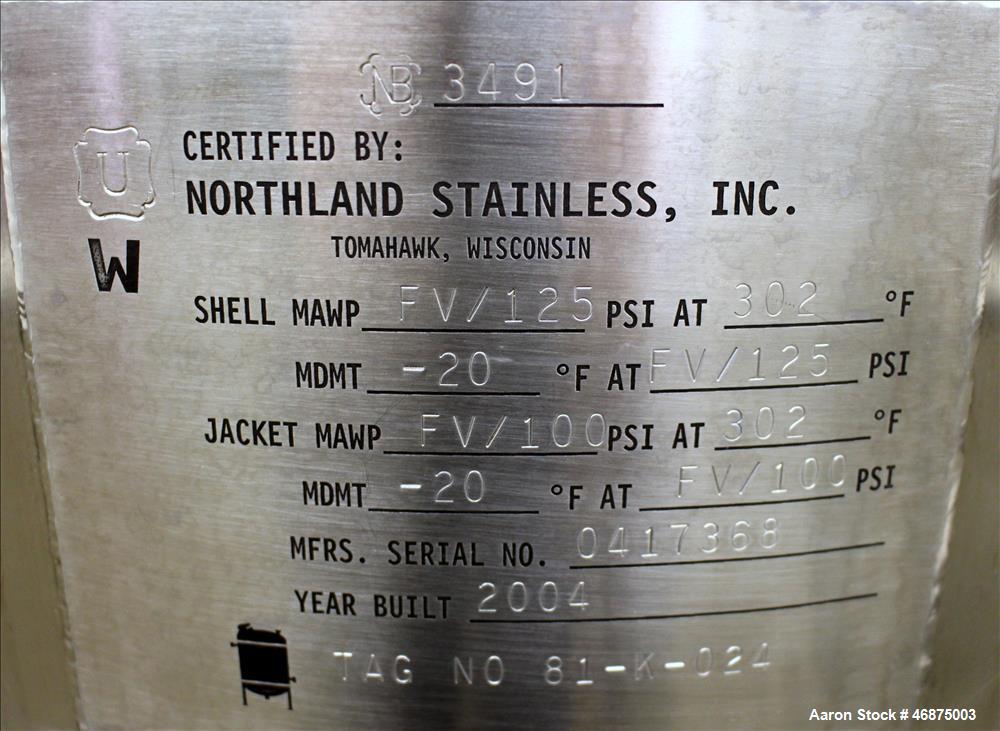

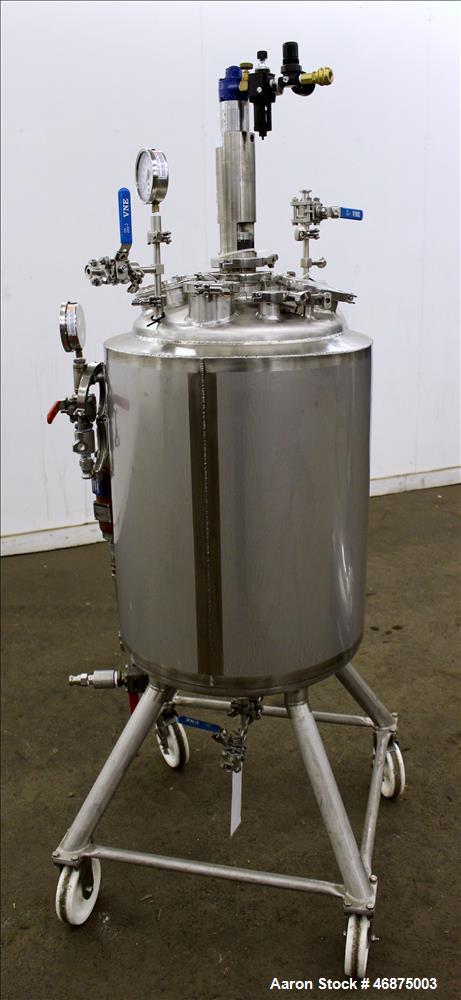

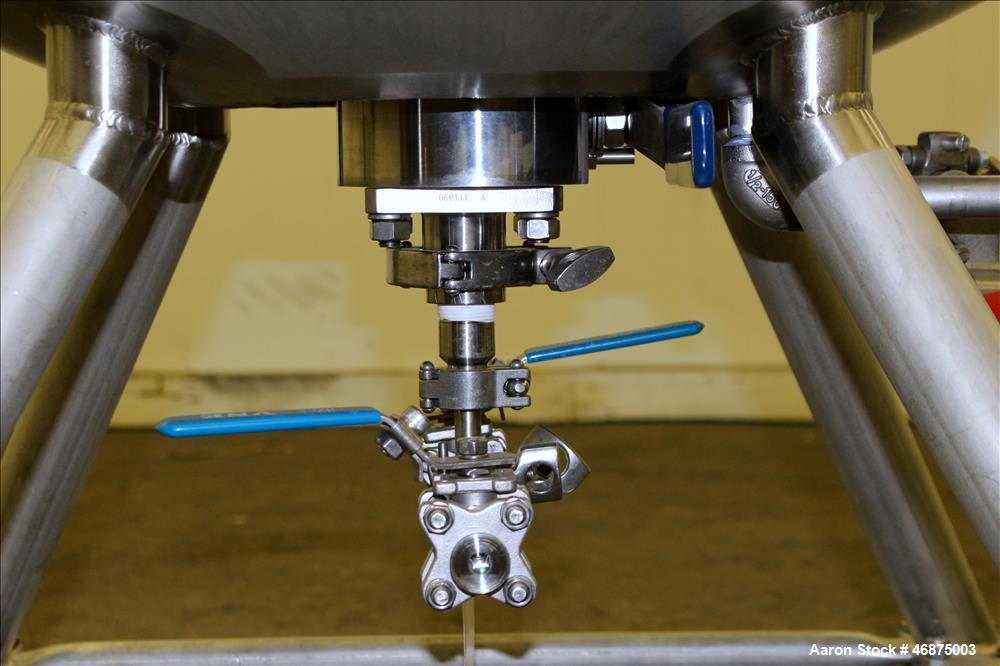

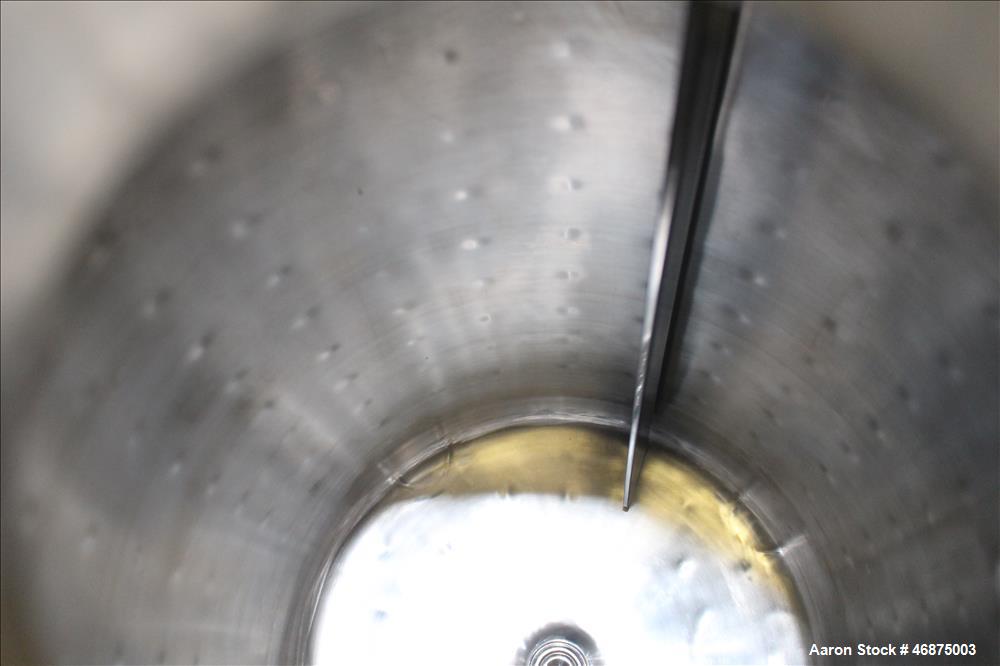

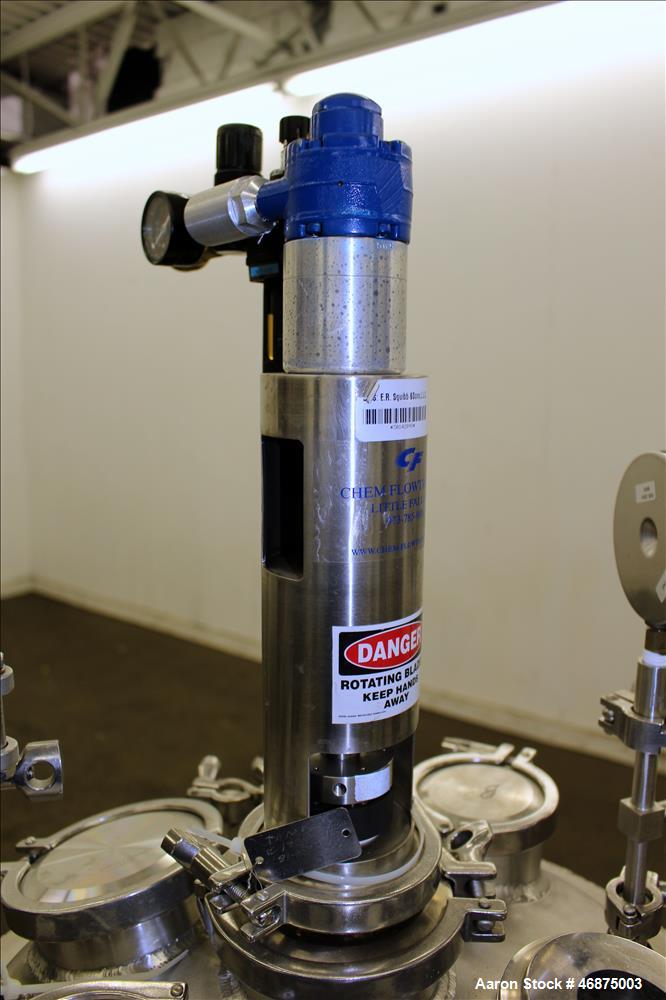

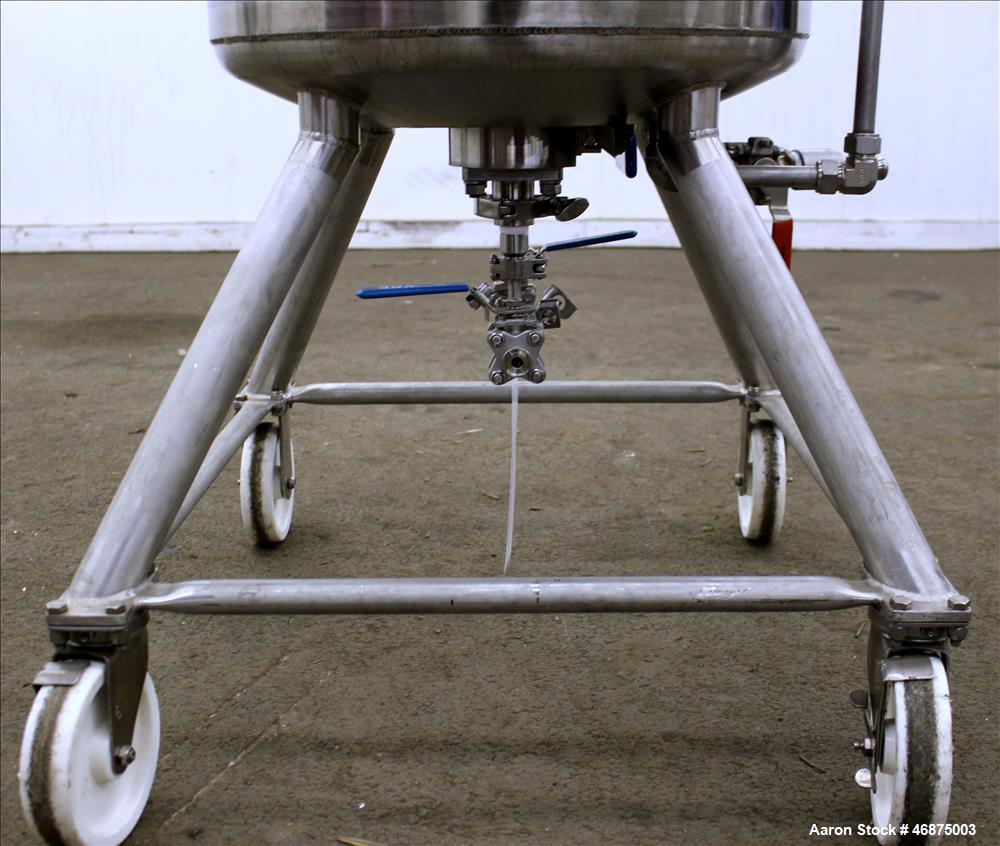

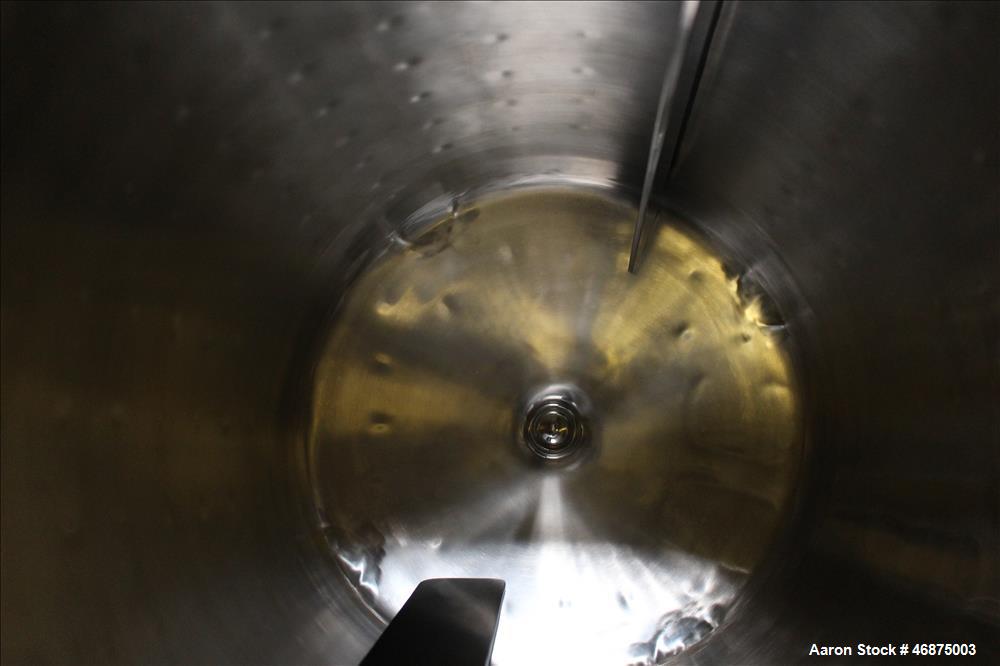

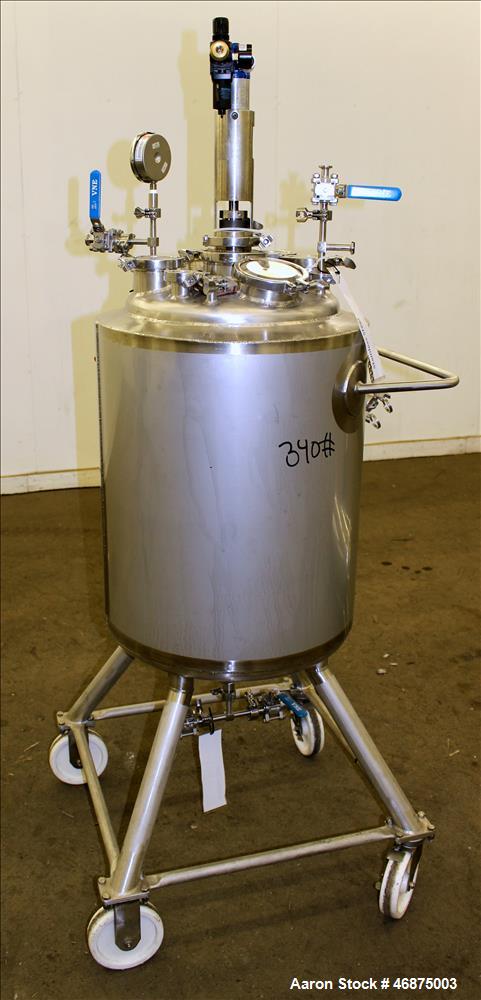

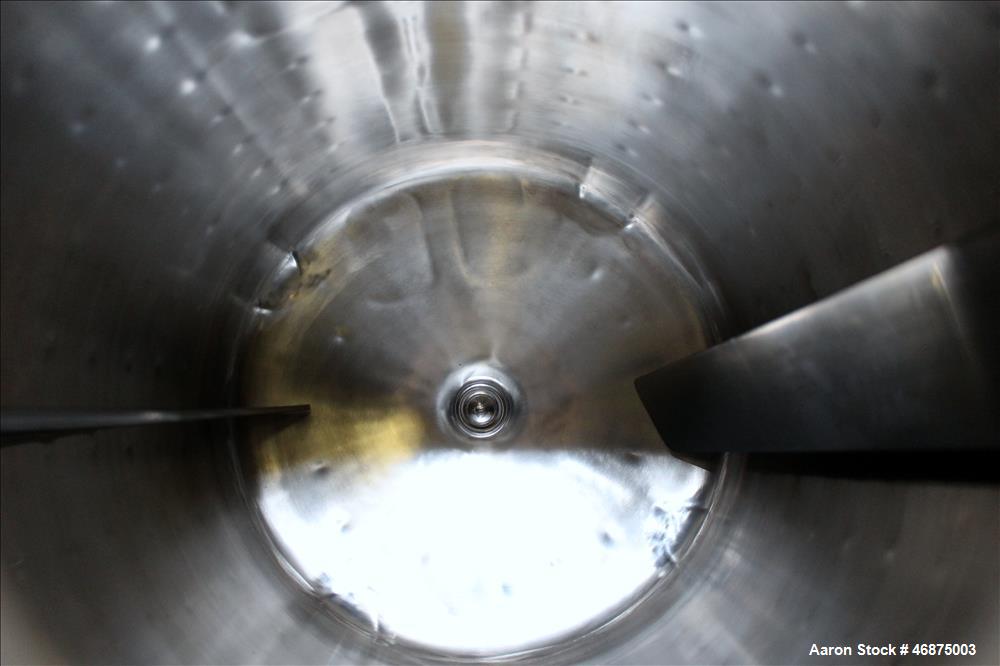

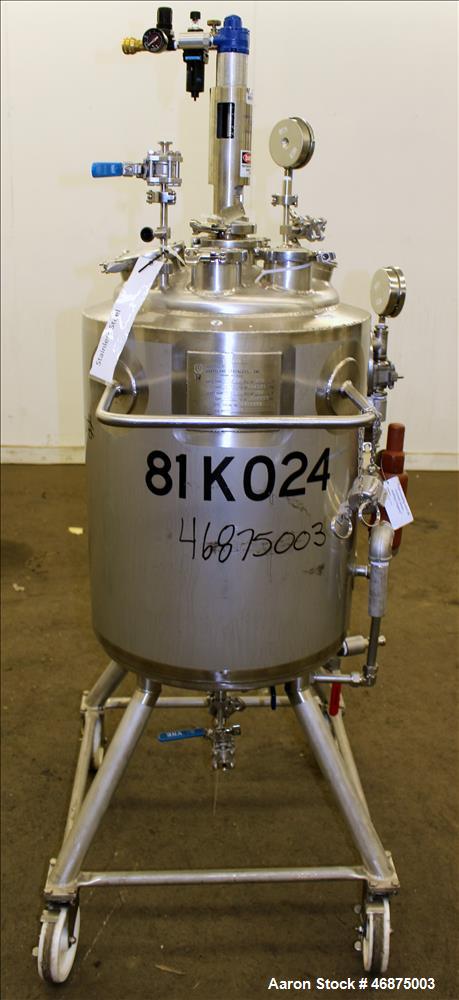

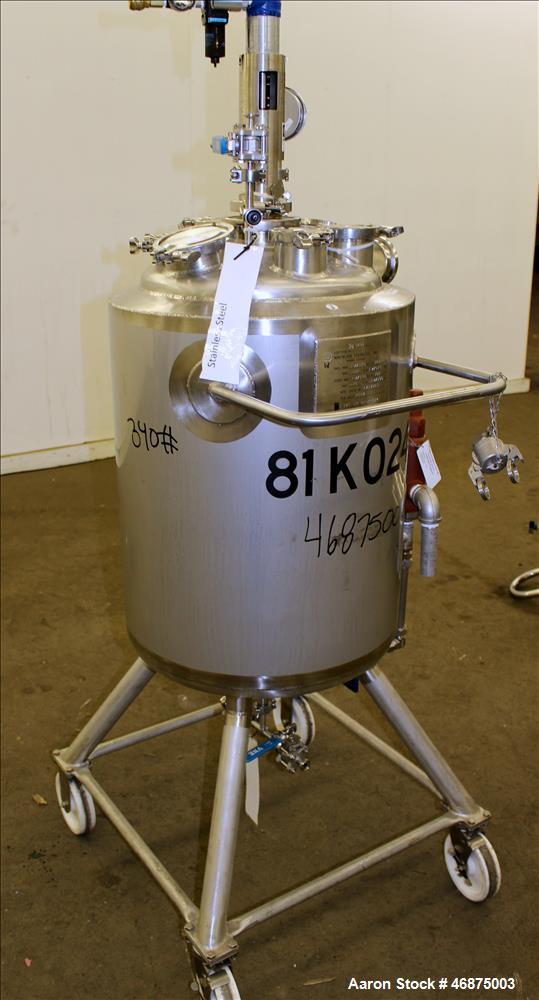

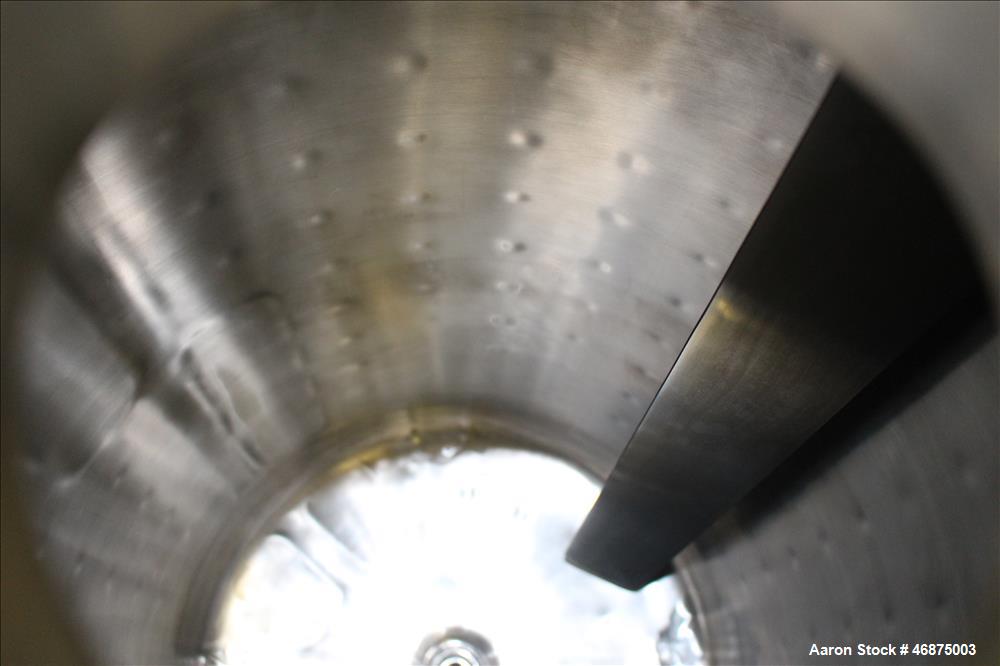

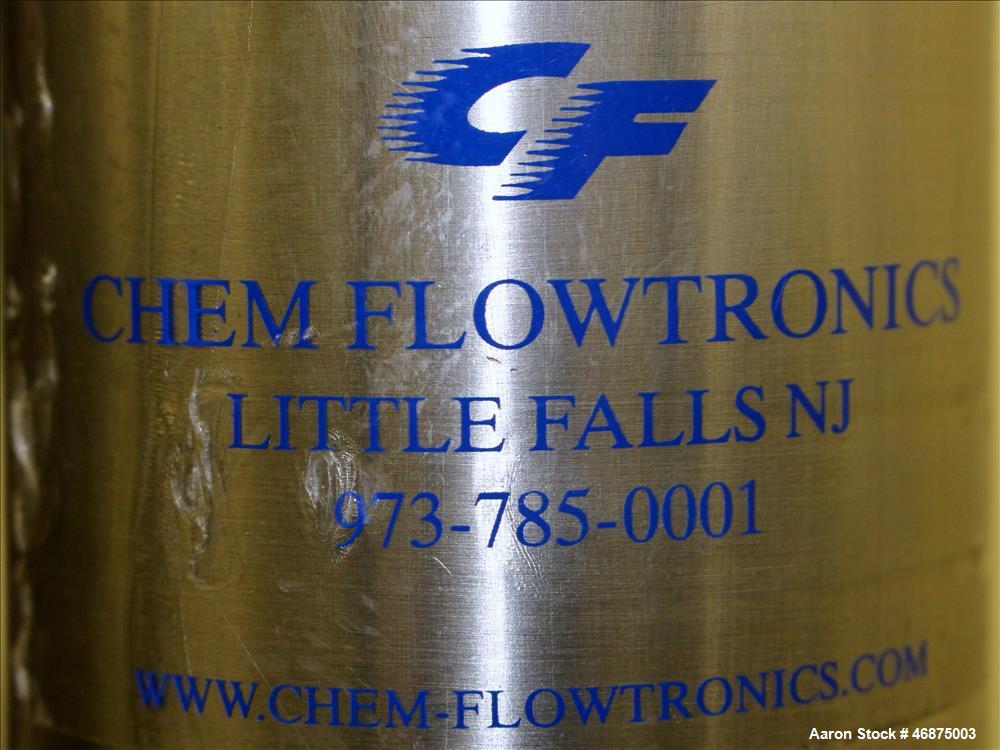

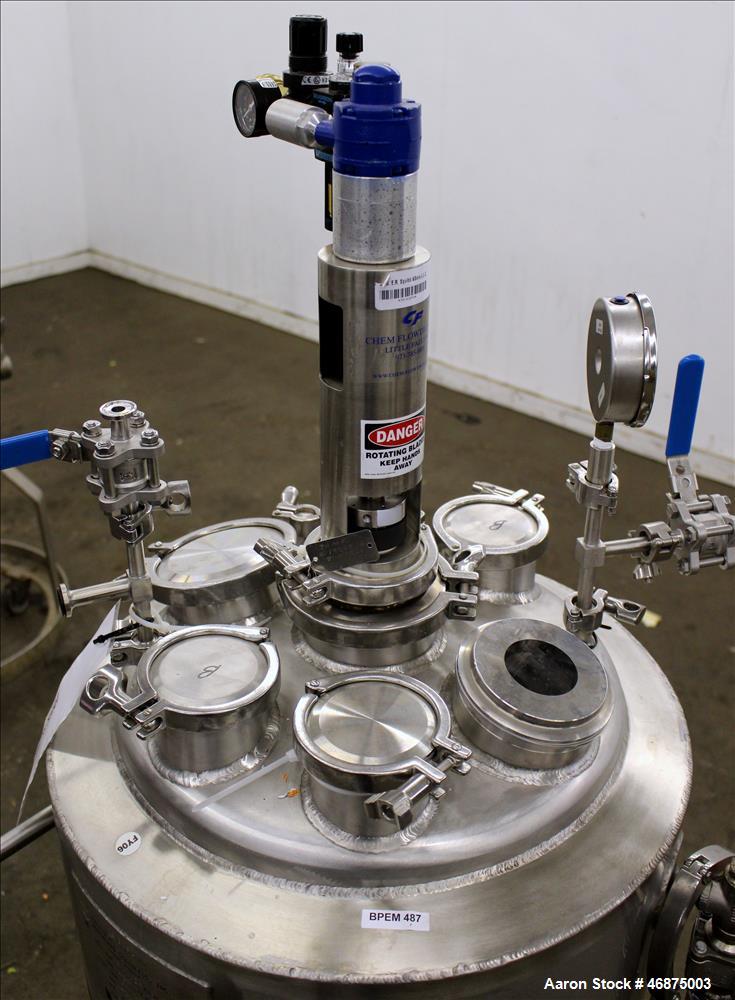

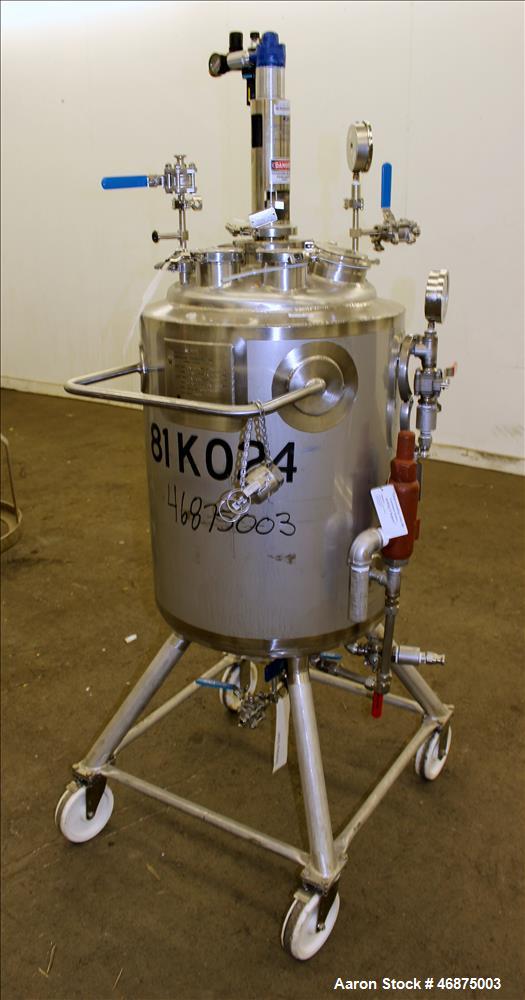

Used- Northland Stainless Reactor, Approximate 24 gallons, Hastelloy C22, Vertical. Approximate 16" diameter x 25" straight side, dished top and bottom. Shell rated 125 psi/full vacuum at -20 to 302 degrees F. 316L Stainless steel dimple jacket rated 100 psi/full vacuum at -20 to 302 degrees F. Top entering Chem Flowtronics air operated agitator with hastelloy C22 29" long x 3/4" diameter shaft with 4 blade turbine. (2) side wall baffles. Openings top:(3) 4", (3) 3", (1) 1-1/2", (3) 3/4". 1-1/2" Center bottom outlet. Mounted on (4) legs with casters. Serial# 0417368. National board# 3491, Built 2004.
