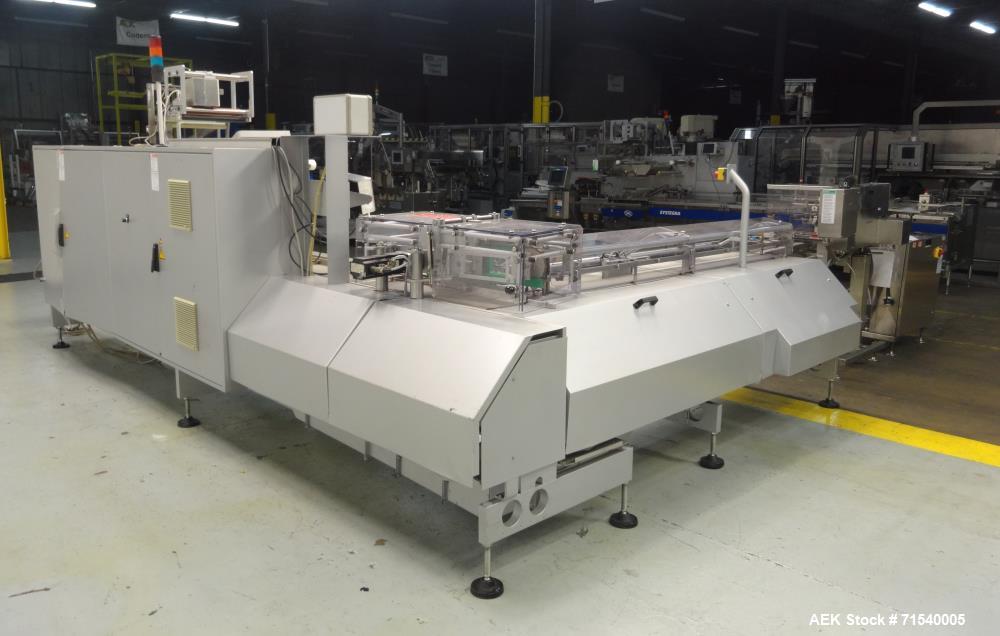

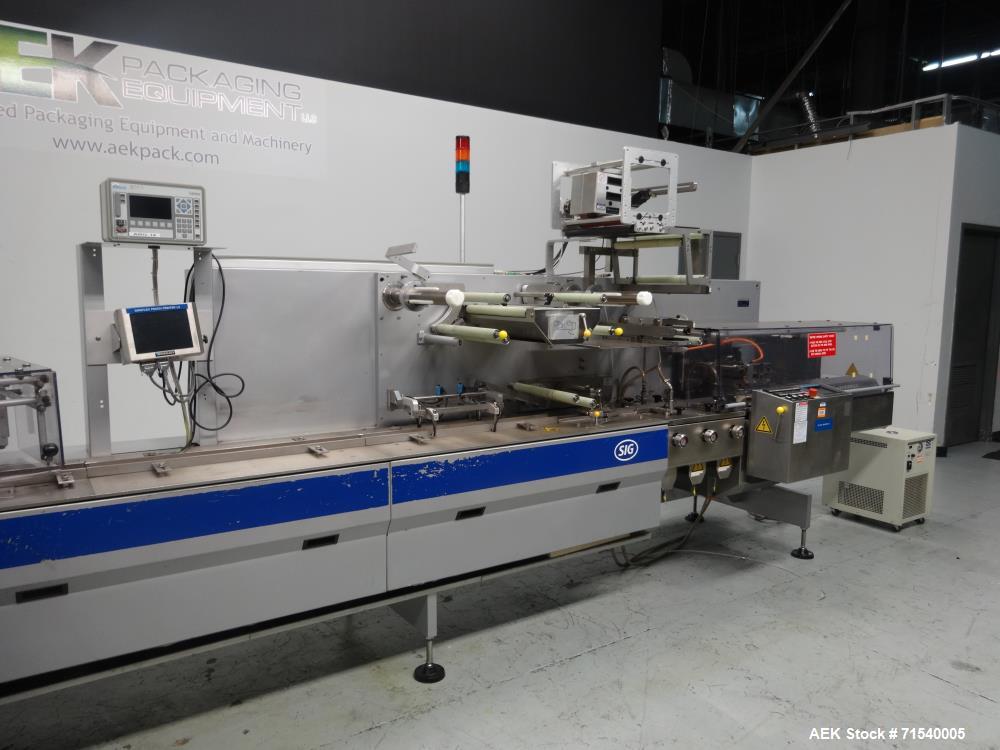

Used- SIG Model HBL Horizontal Flow Wrapper for Hermetic Packaging.
Stock# 71540005
Looking to Finance this item?
Apply Today!

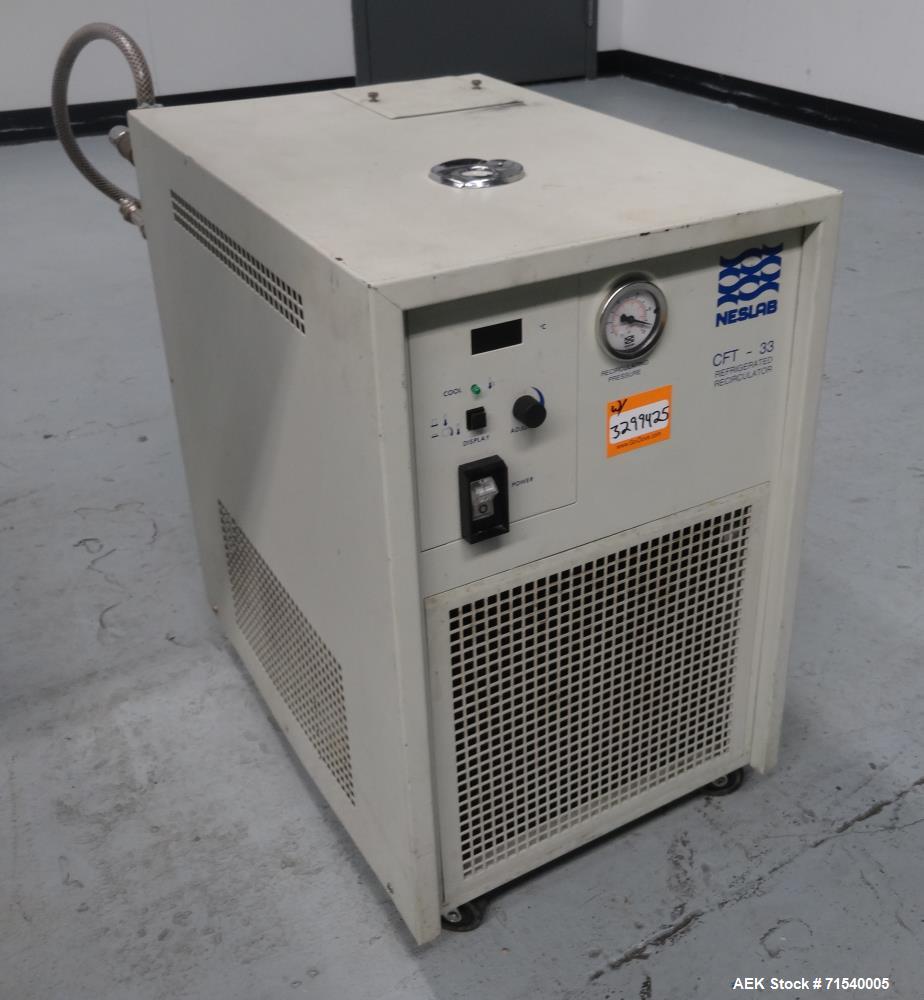

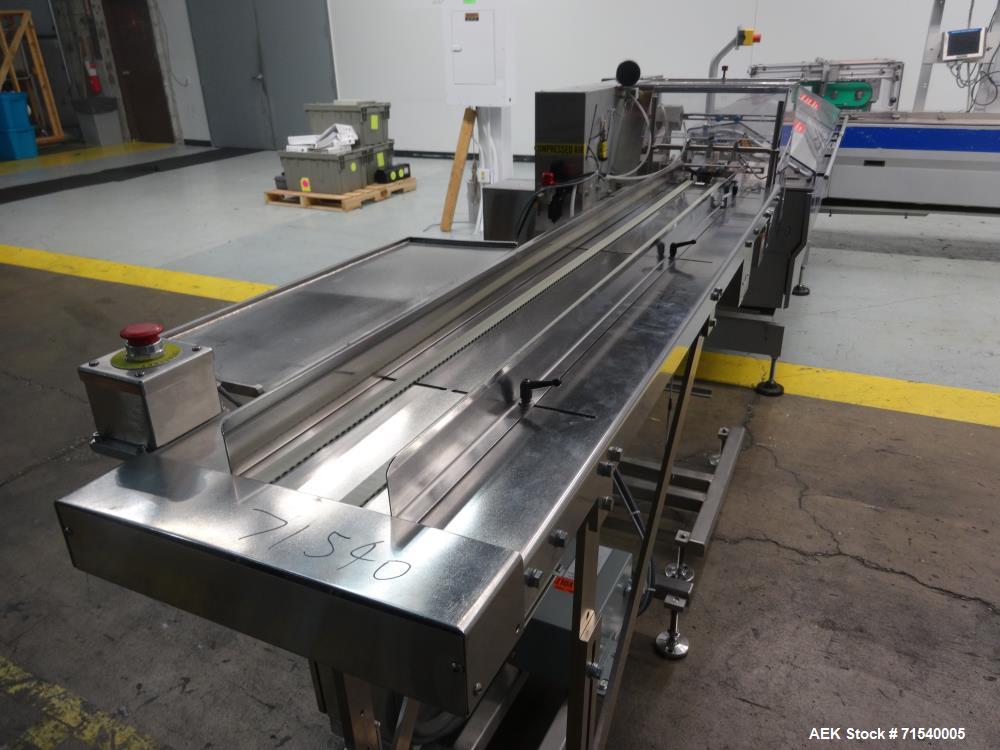

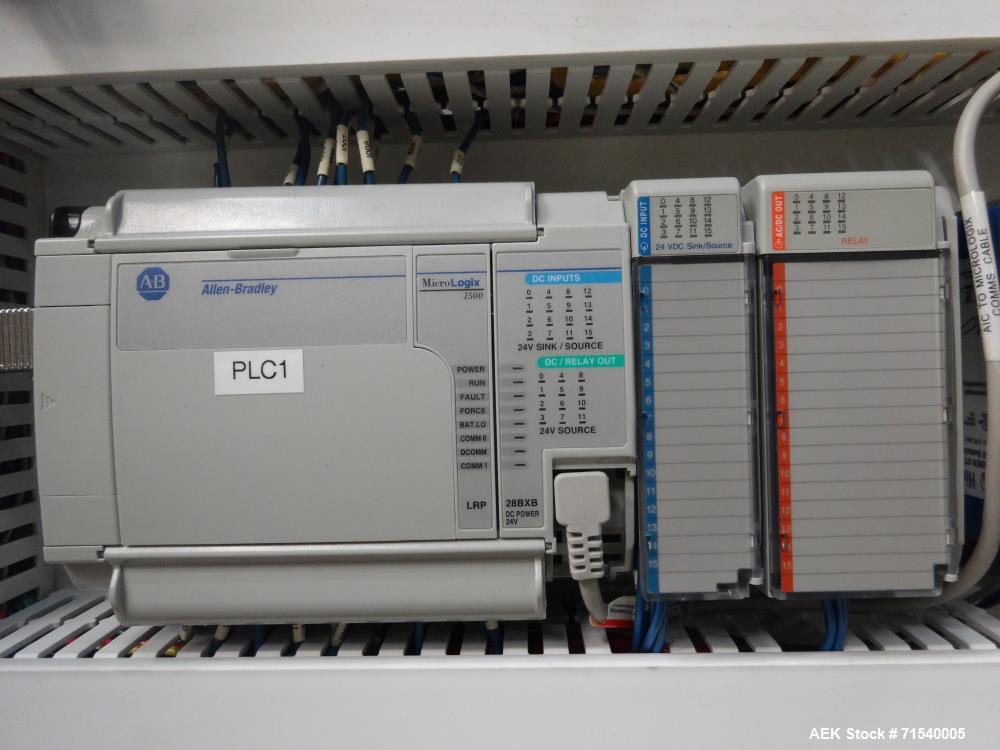

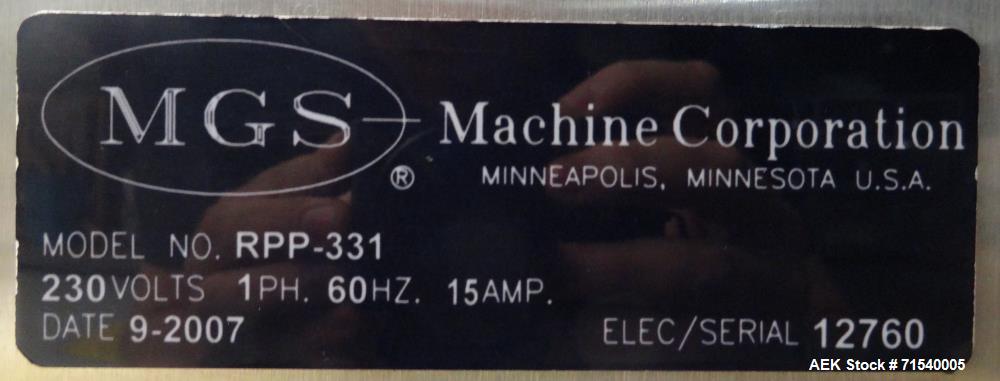

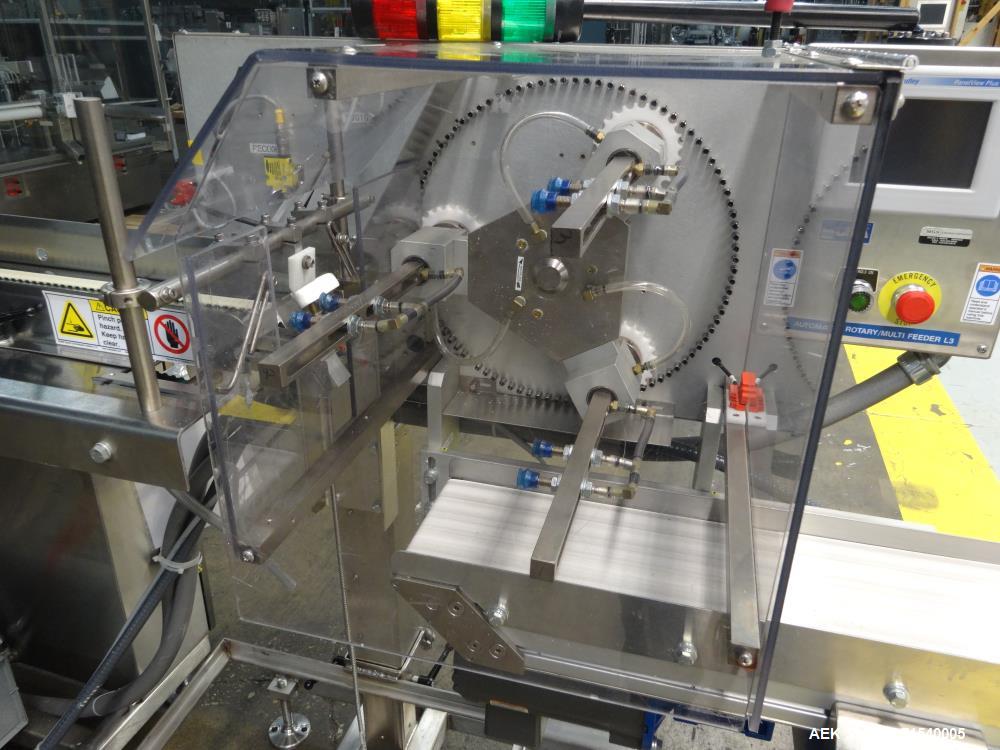

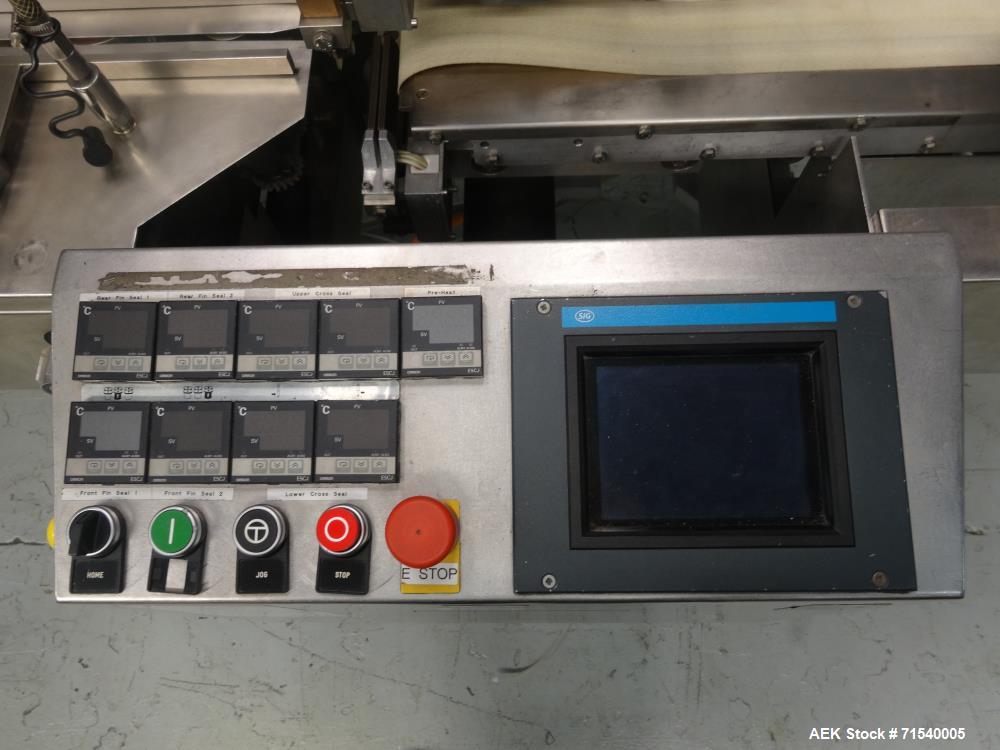

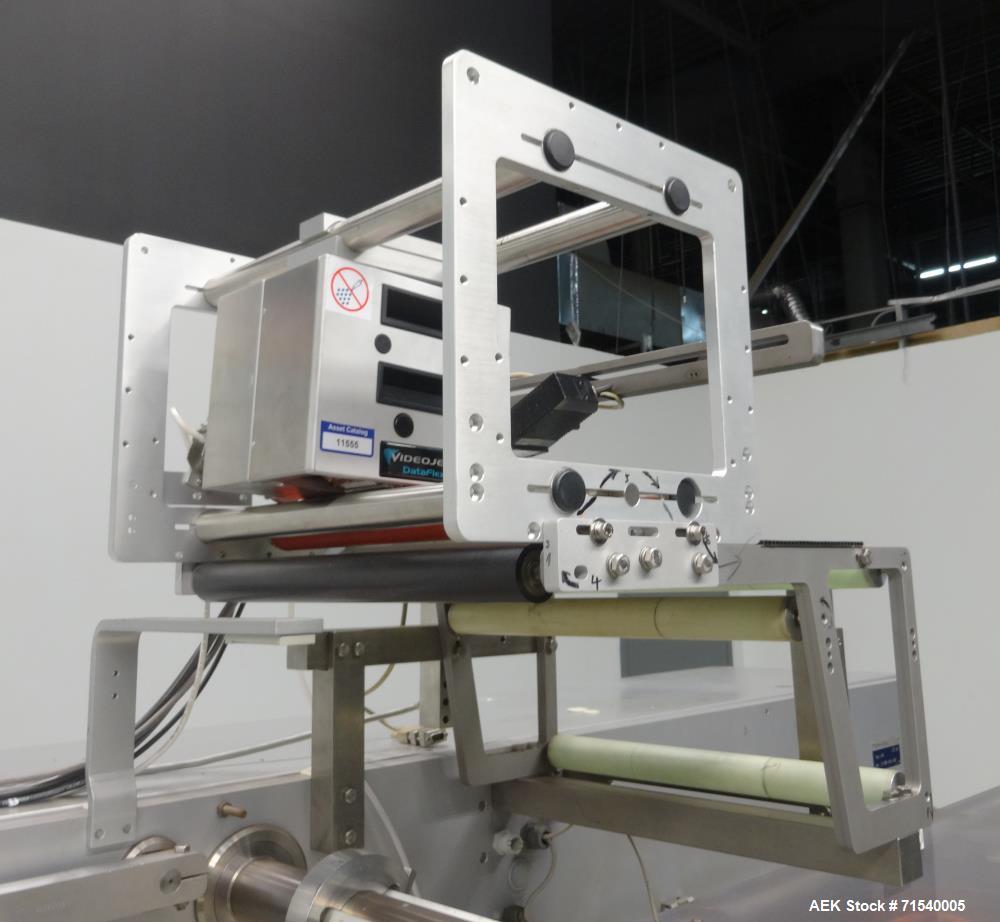

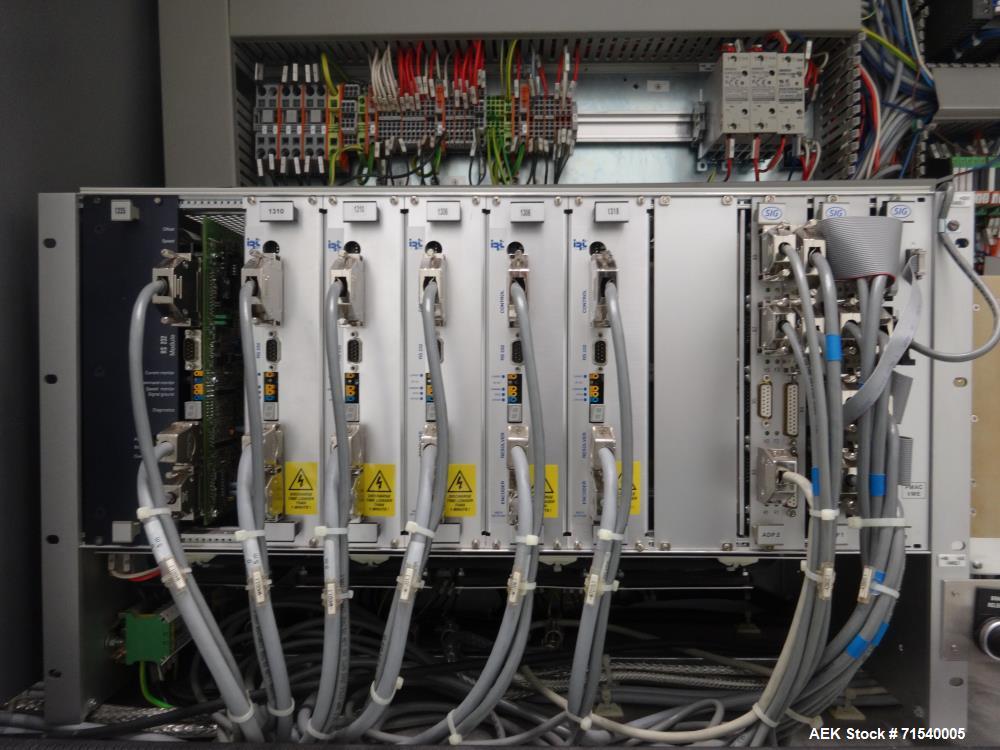

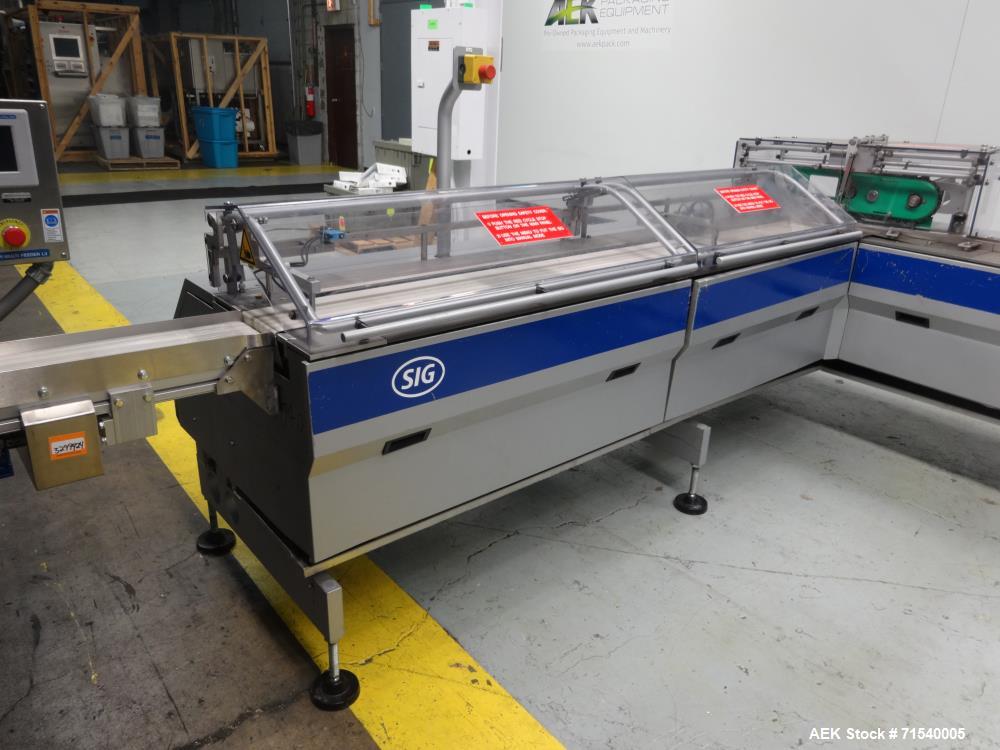

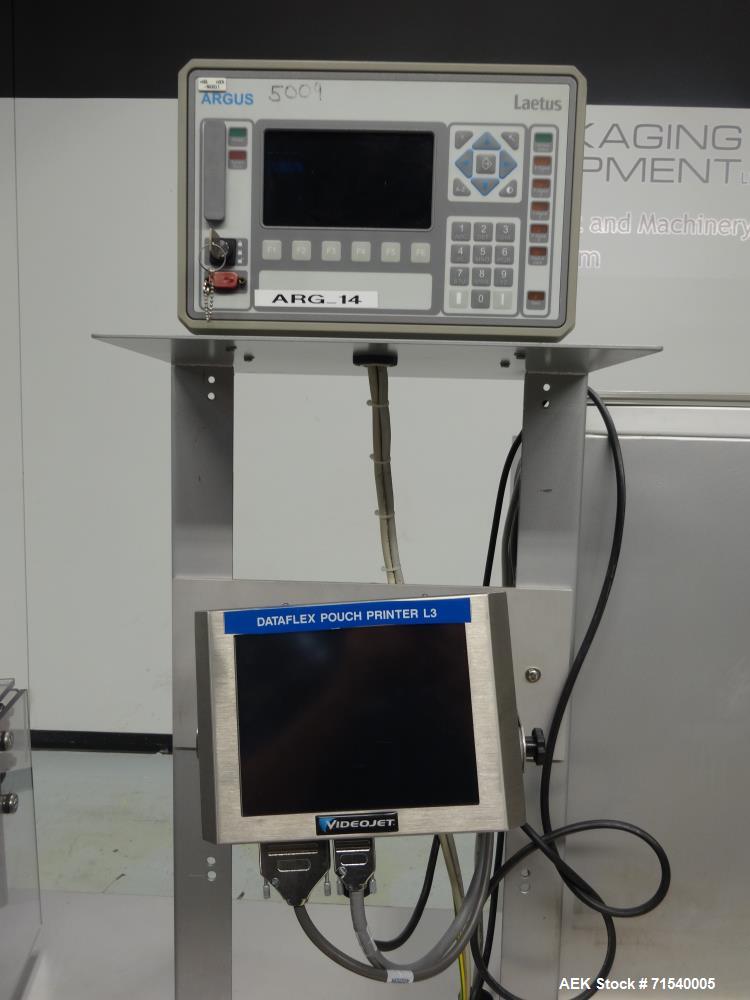

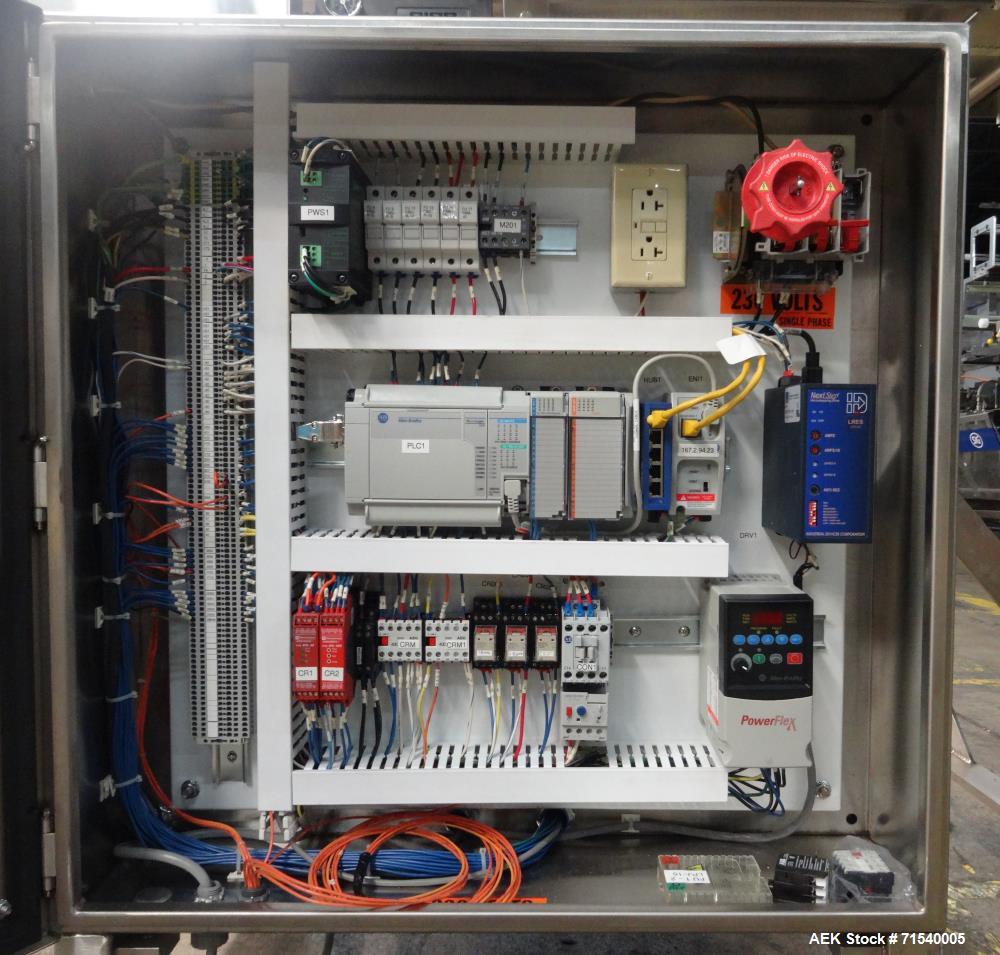

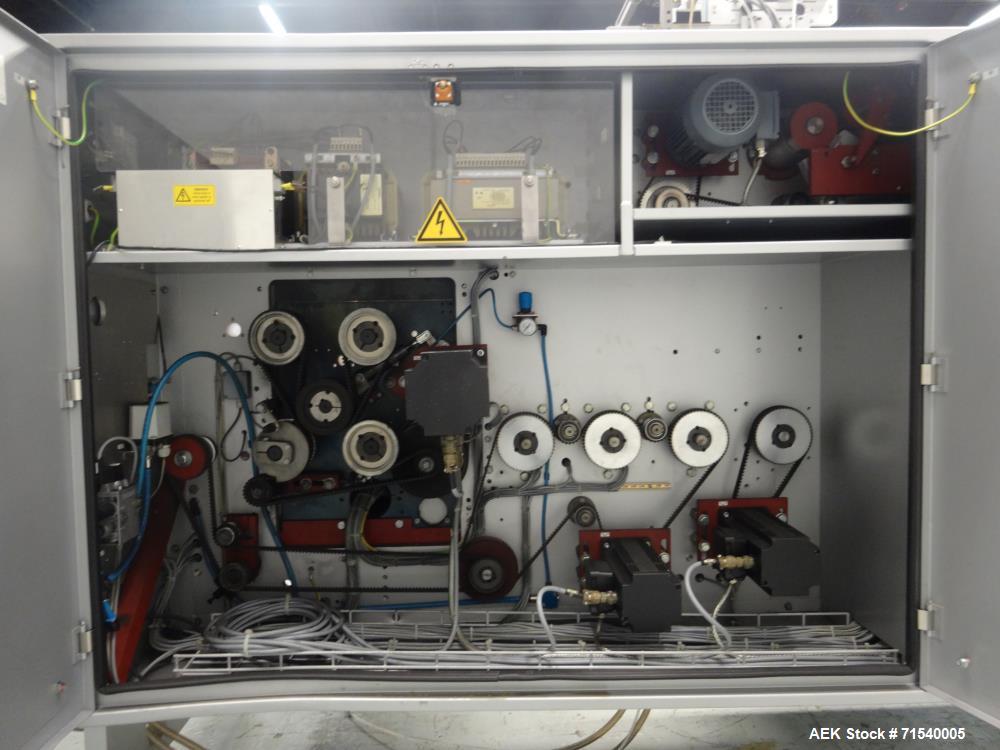

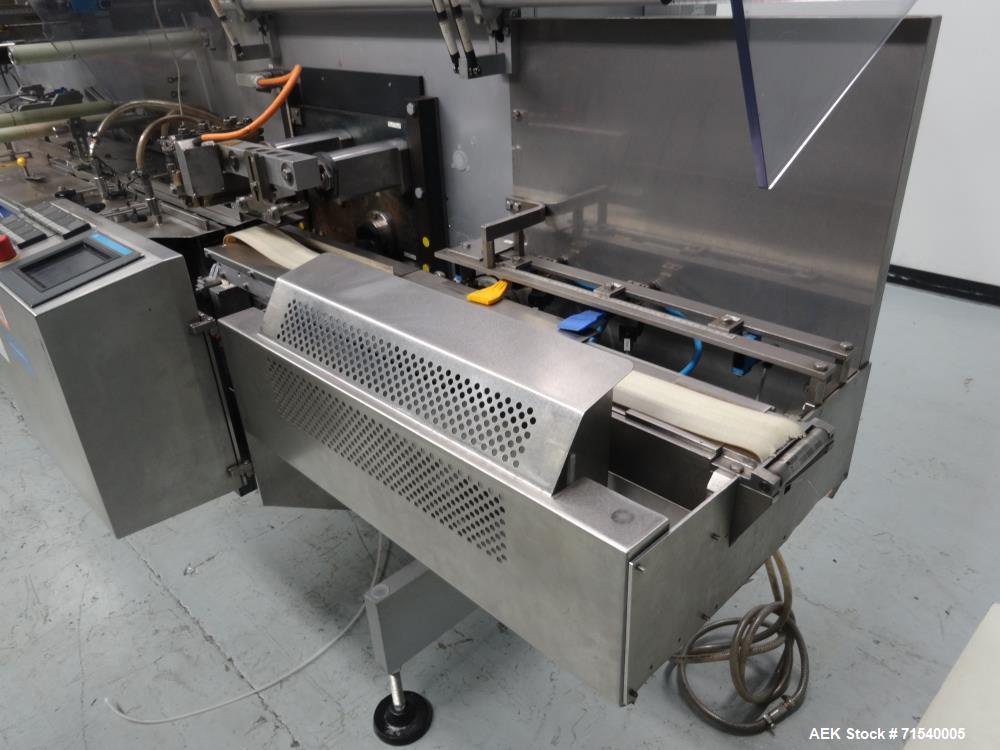

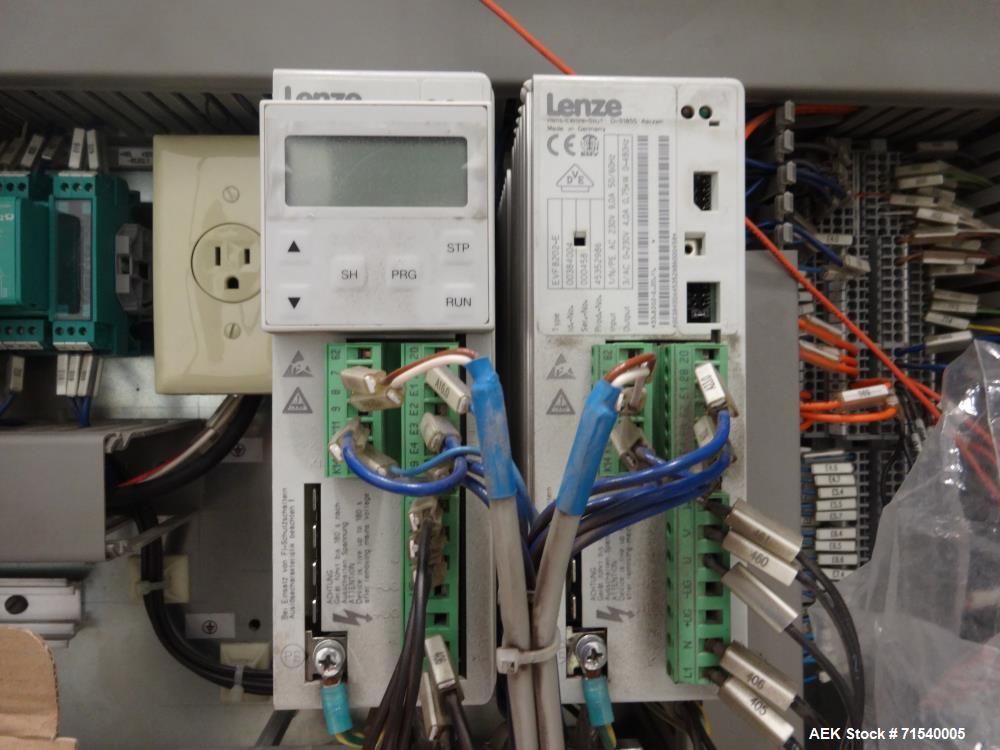

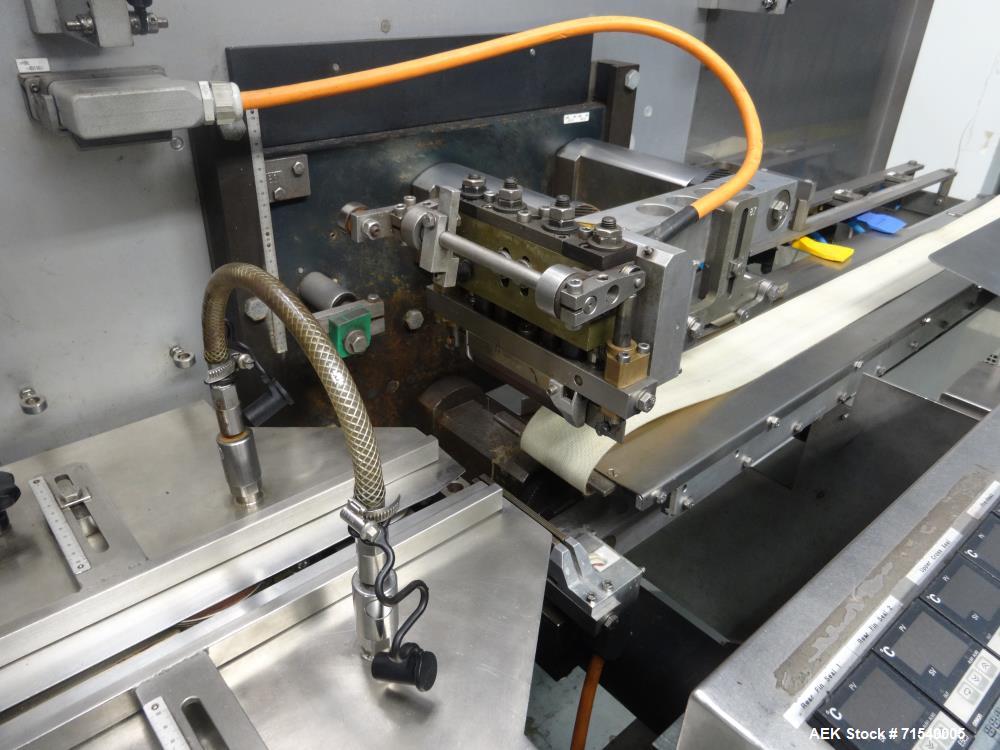

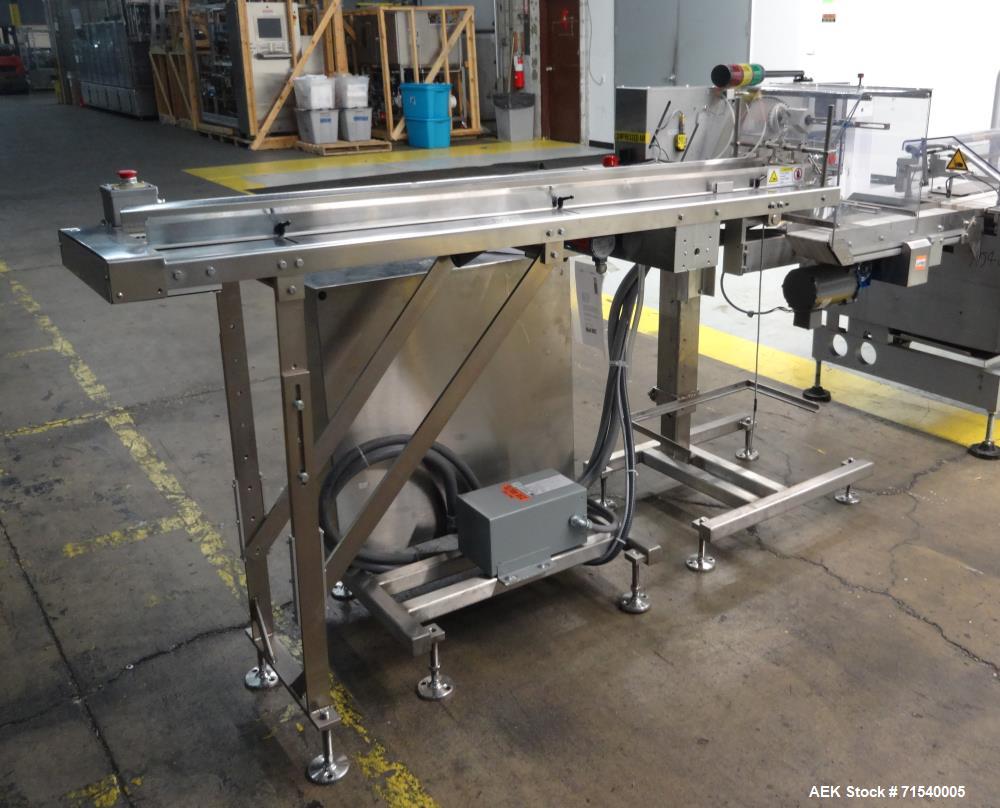

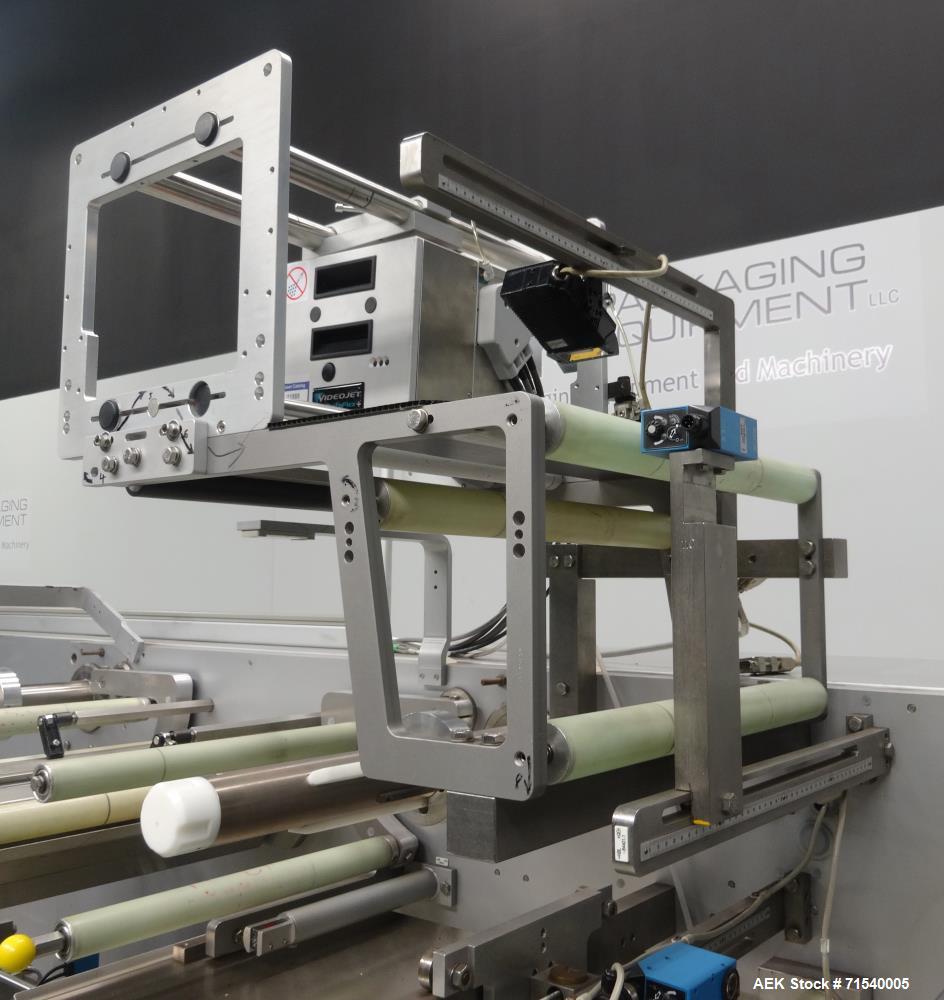

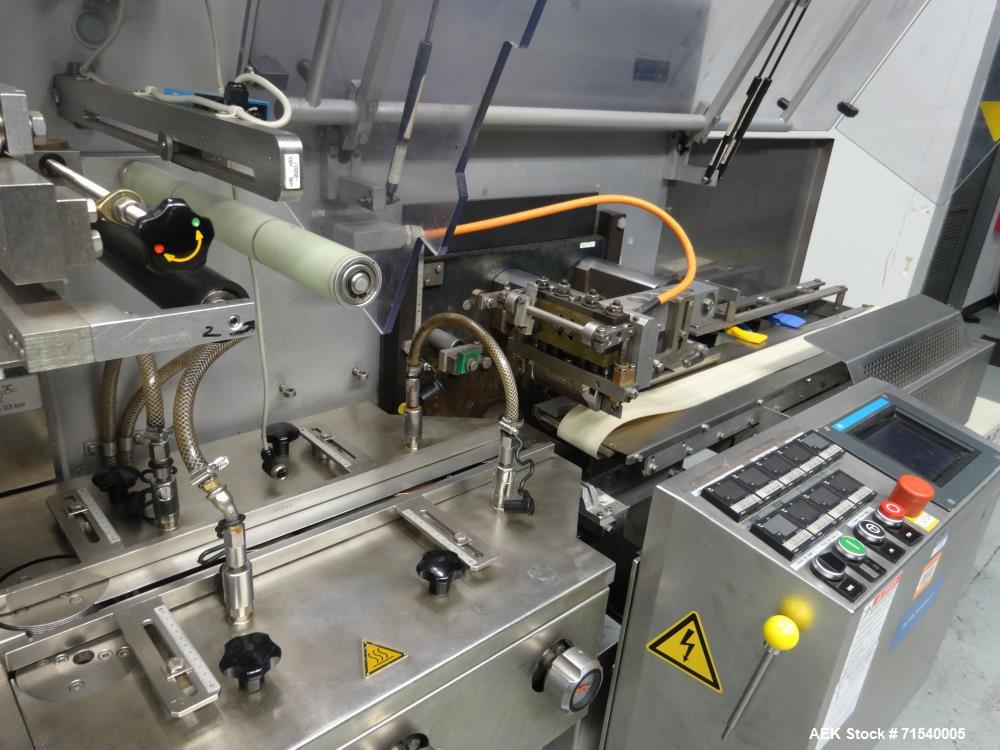

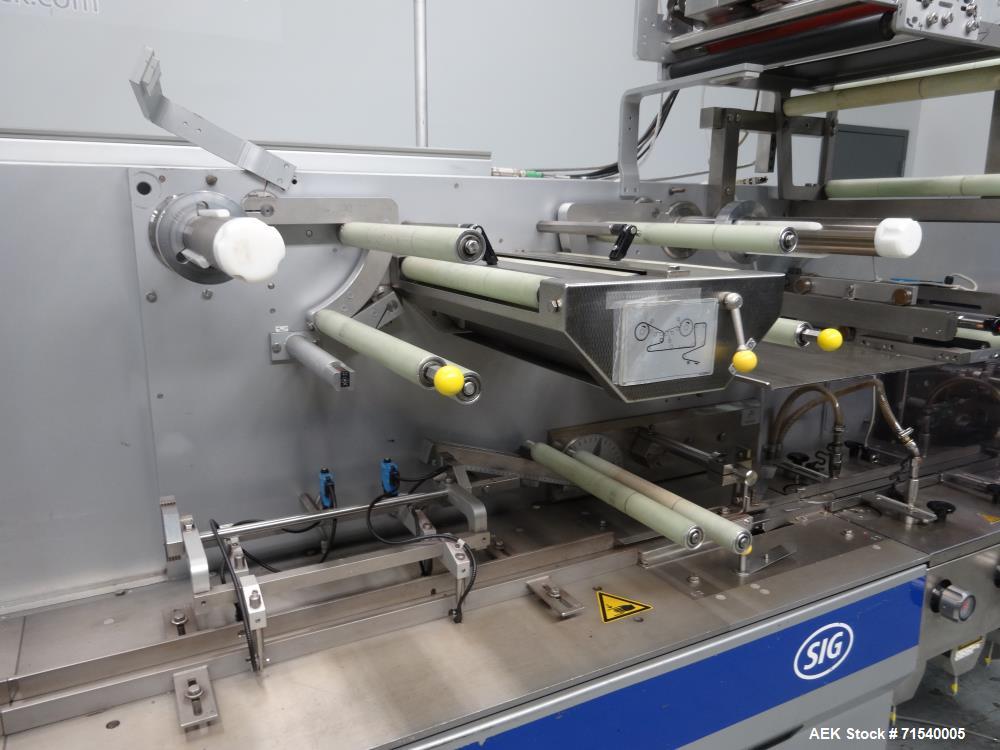

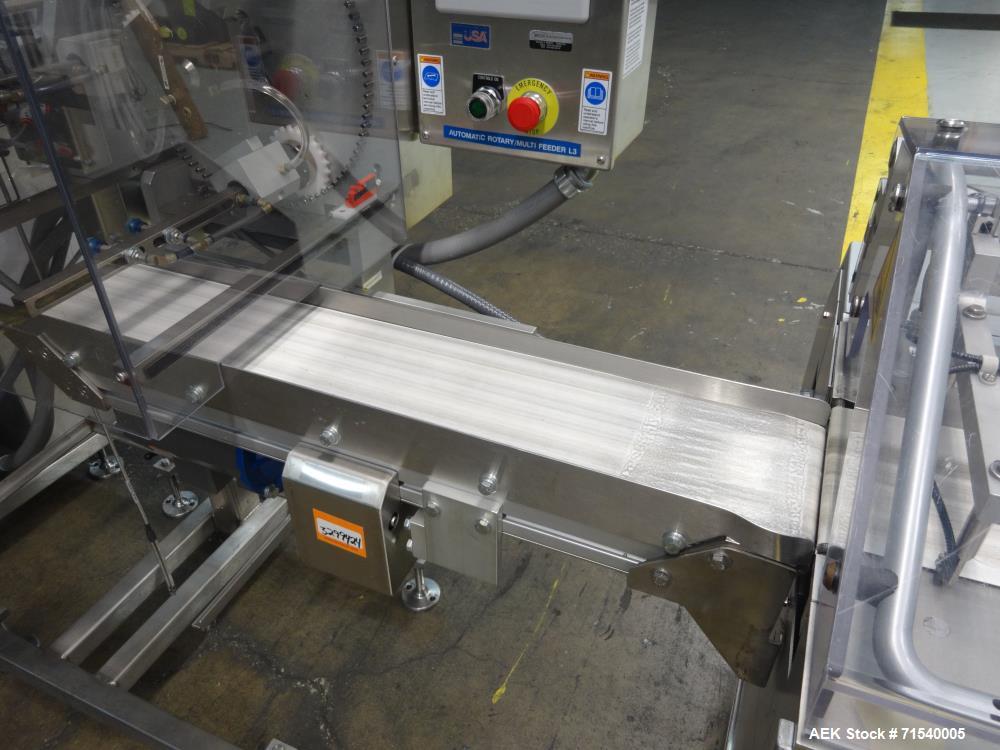

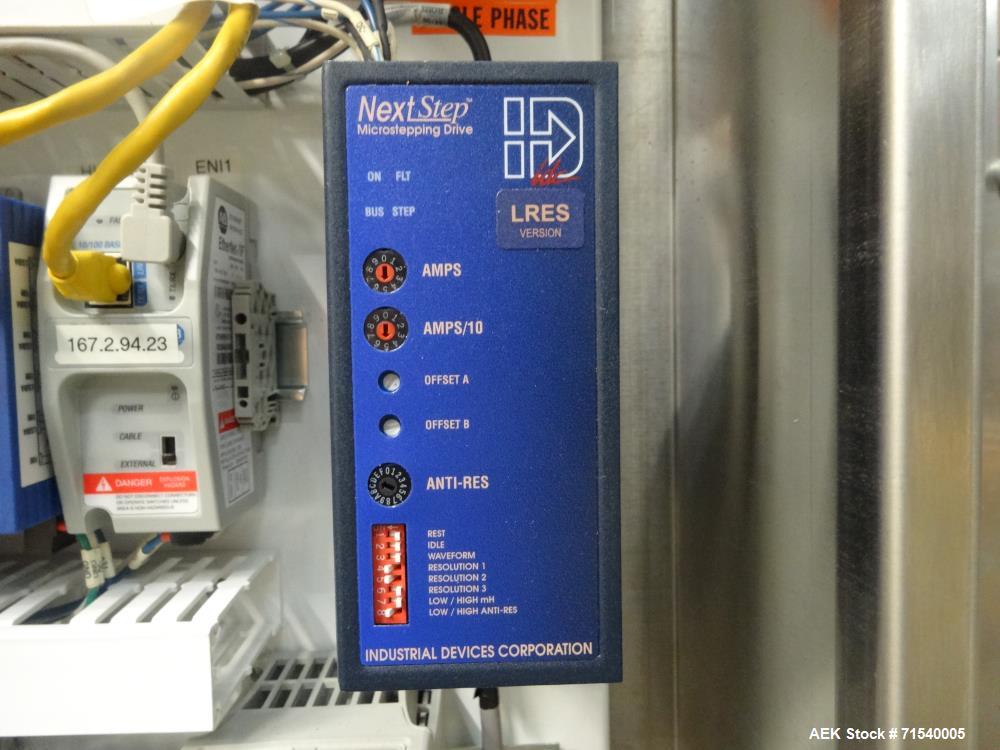

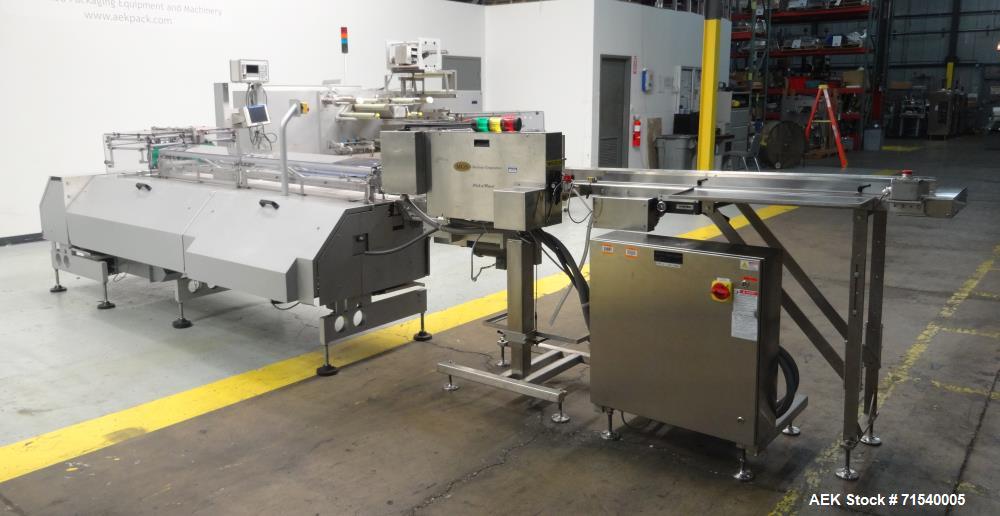

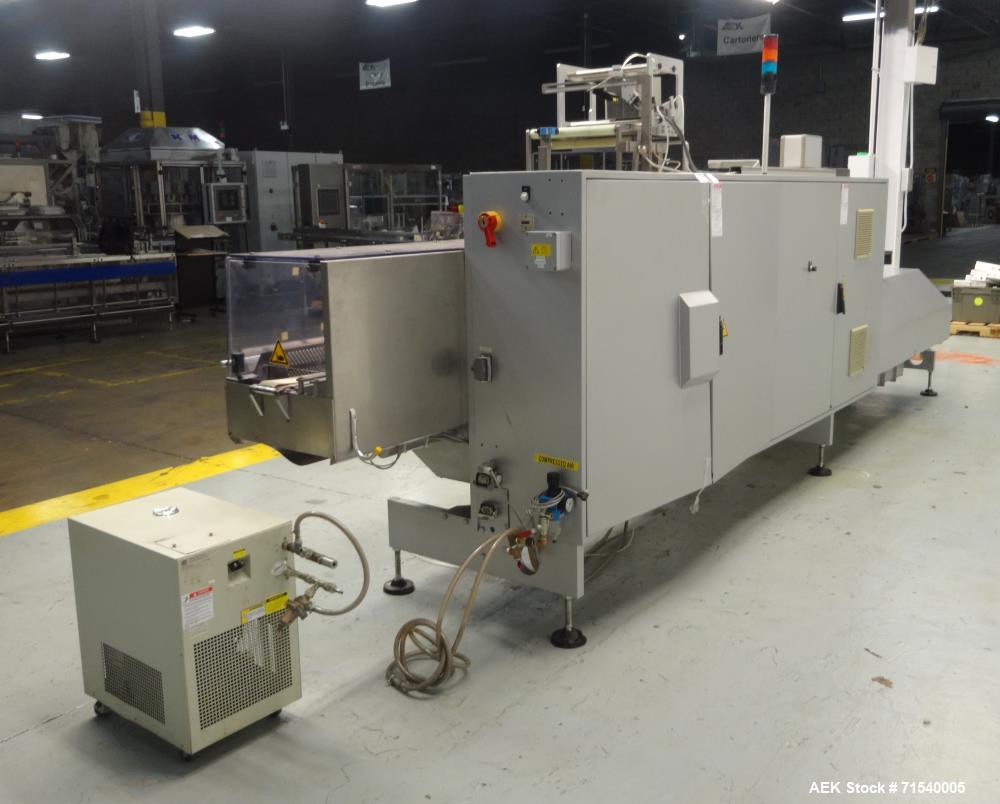

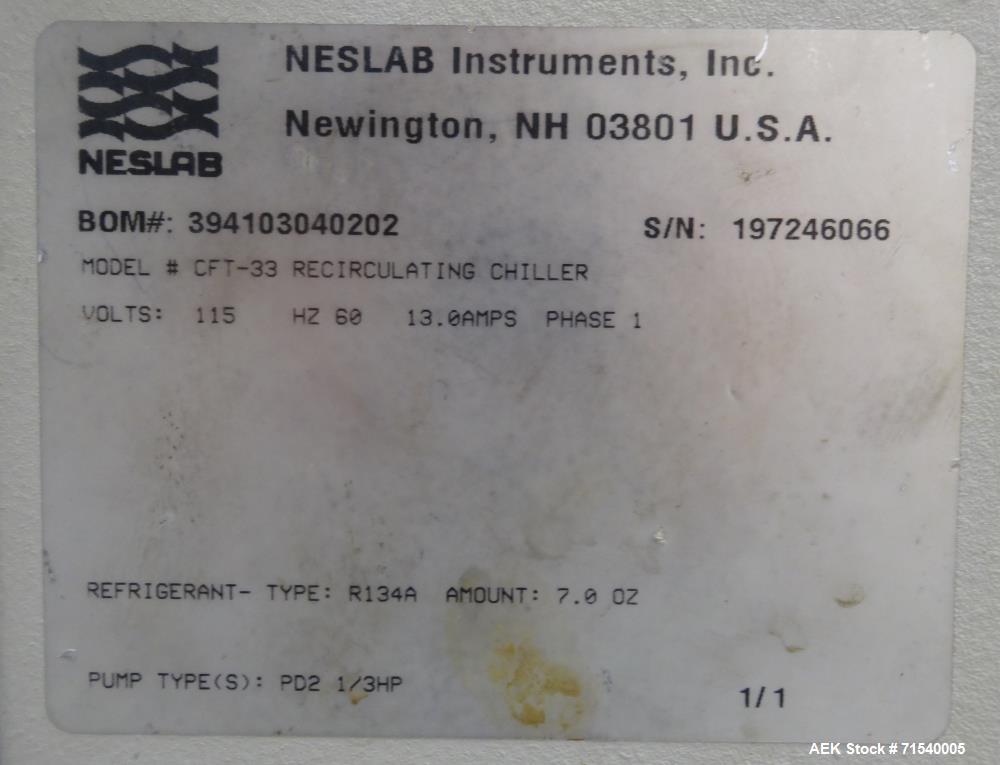

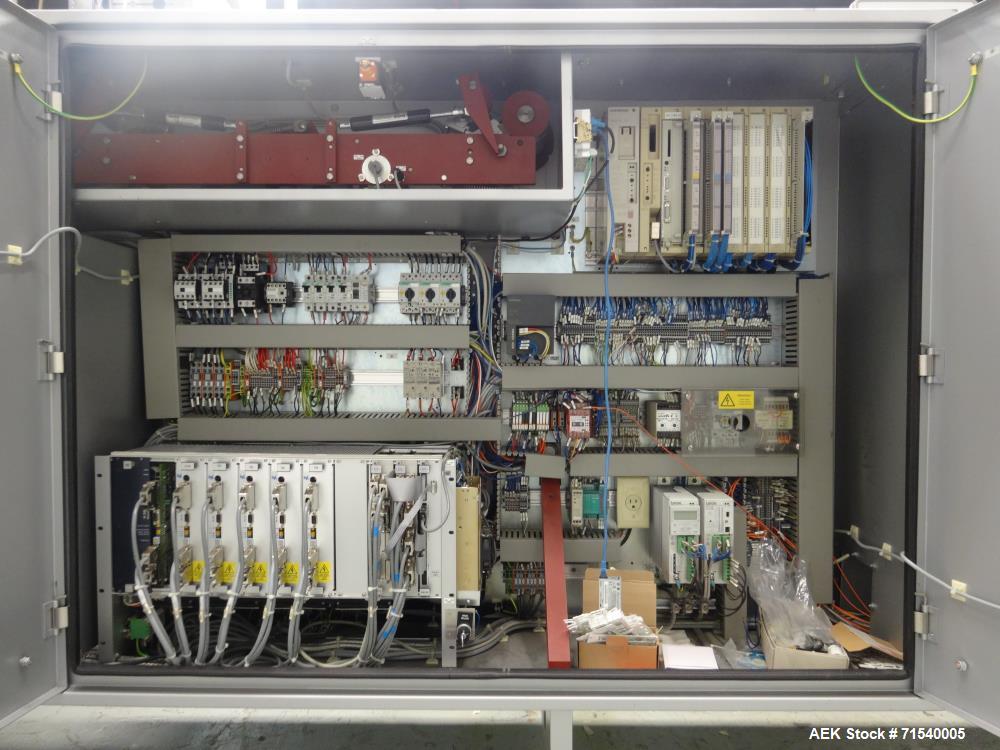

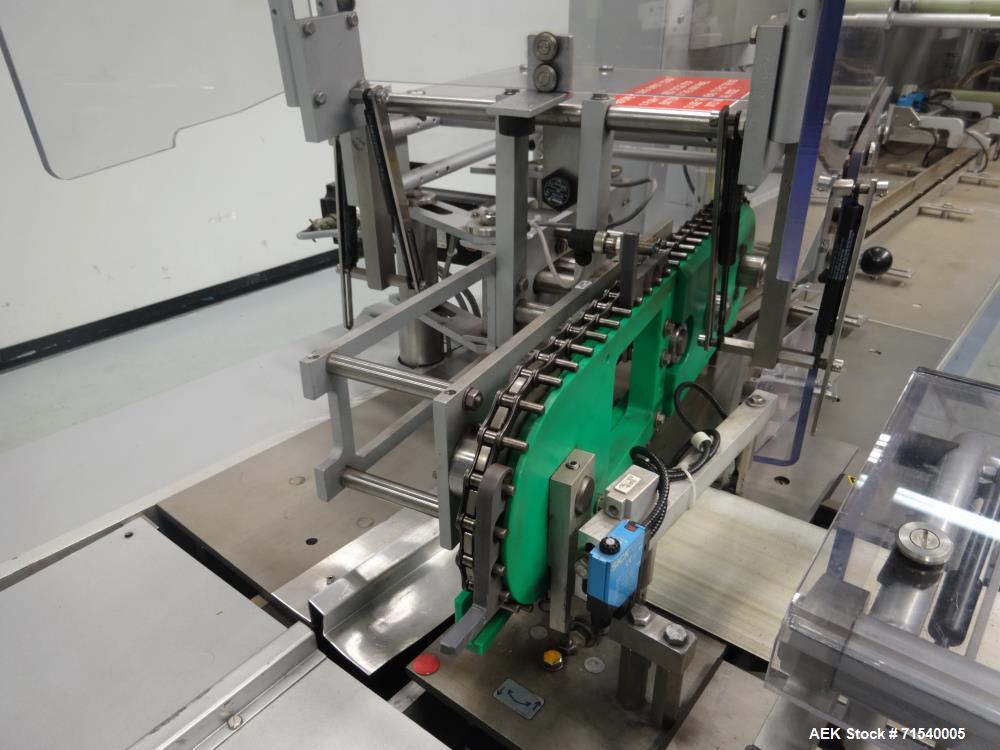

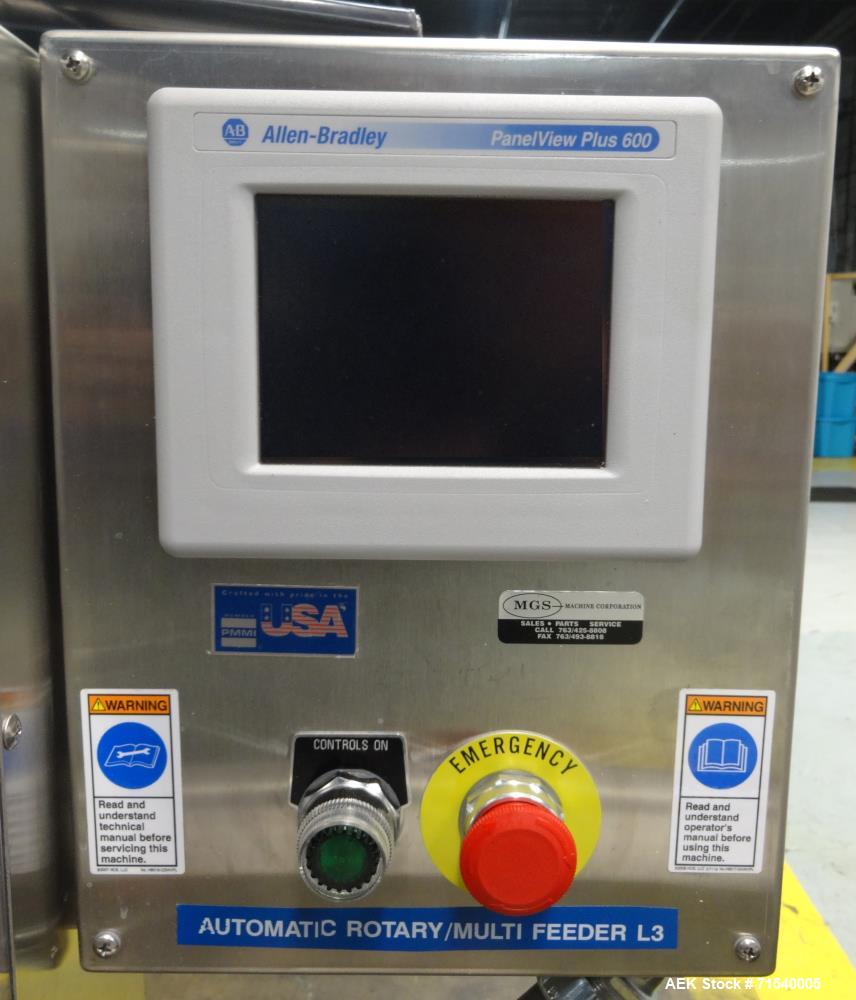

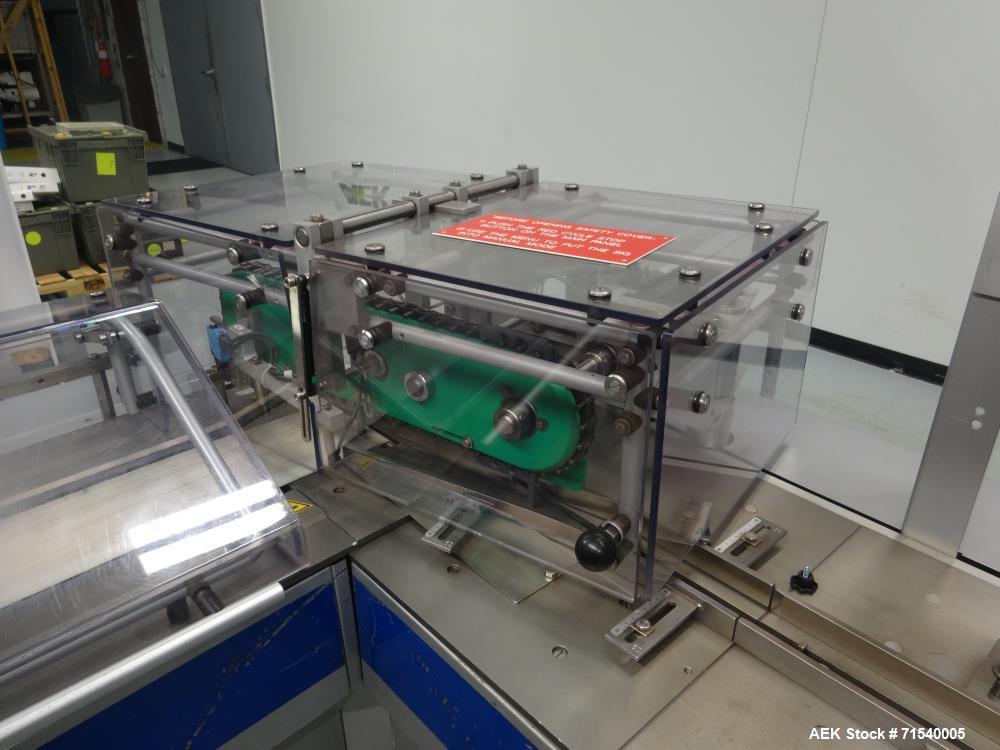

Used- SIG Model HBL Horizontal Flow Wrapper for Hermetic Packaging. Capable of speeds up to 150 packages per minute. Has a package size range: 2"-20" (50mm - 300mm) length; up to 4" (120mm) wide; and 3.94" (100mm) height. Has a long dwell walking beam or box motion hermetic sealing jaw. Film web width: up to Maximum 16" (400mm) on 3" (76mm) diameter core. Uses Allen Bradley Micrologix 1500 PLC controls. Equipped with servo drives, film registration, dual web arbors with automatic splice table, VideoJet Dataflex+ Date Coder with HMI control panel and Laetus Argus bar code scanner with reject. Equipped with a right-angle 7"x98" belt conveyor. Includes MGS RPP-331 Feeder and NESLAB portable chiller. 3/60/480V. Serial # S-1016-HBL-032. Built in 2002. Last used in Pharmaceutical Nebulizer Refill overwrapping.
| Manufacturer | SIG |
| Model | HBL/ZBGQ |

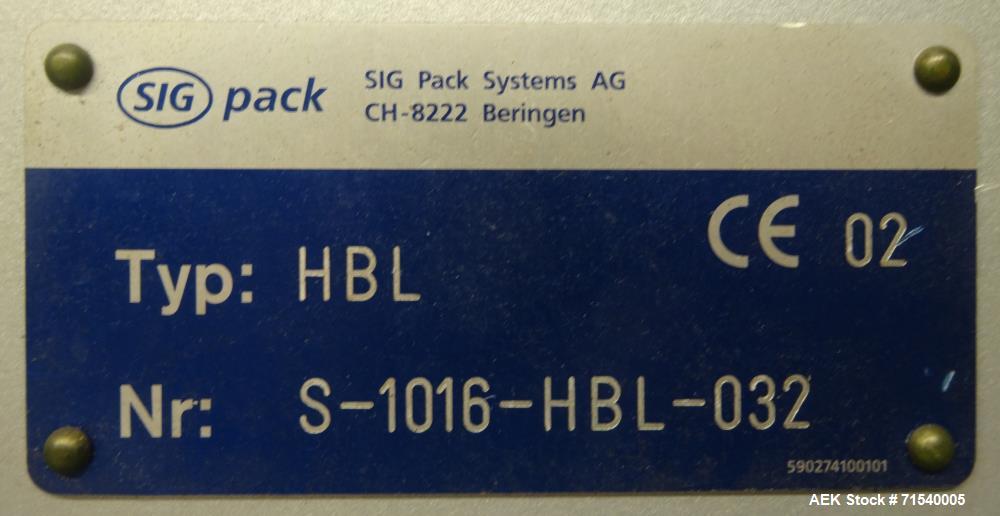

| Serial # | S-1016-HBL-032 |
| Category | Packaging EquipmentPackaging Equipment |
| Subcategory | Wrappers - Horizontal FlowWrappers - Horizontal Flow |
| Model Number | HBL |
| Speed Range CPM | 100 |
| Package Size Range (Length) | 2"-20" |
| Package Size Range (Width) | 4" |
| Package Size Range (Height) | 3.94" |
| Print Registraion | Yes |
| Brand of PLC | Allen Bradley |
| Number of End Seal Jaws | 2 Up |
| End Seal Jaw Width | 4.25 |
| End Seal Jaw Lines | Horizontal |
| End Seal Cut Off | Scissors Knife |
| Height Between End Seal Shafts | 7" |
| Infeed Type | Automatic |
| Length of Infeed | 70" (Feeder) |
| Center Distance on Infeed Lugs | None |
| Discharge Belt Size (W x L) | 3.25"x47" |
| Number of Web Arbors | Dual |
| Film Web Width | 17" |
| Current Voltage | 480V |
| OAD (Length) | 222 |
| OAD (Width) | 245 |
| OAD (Height) | 84 |

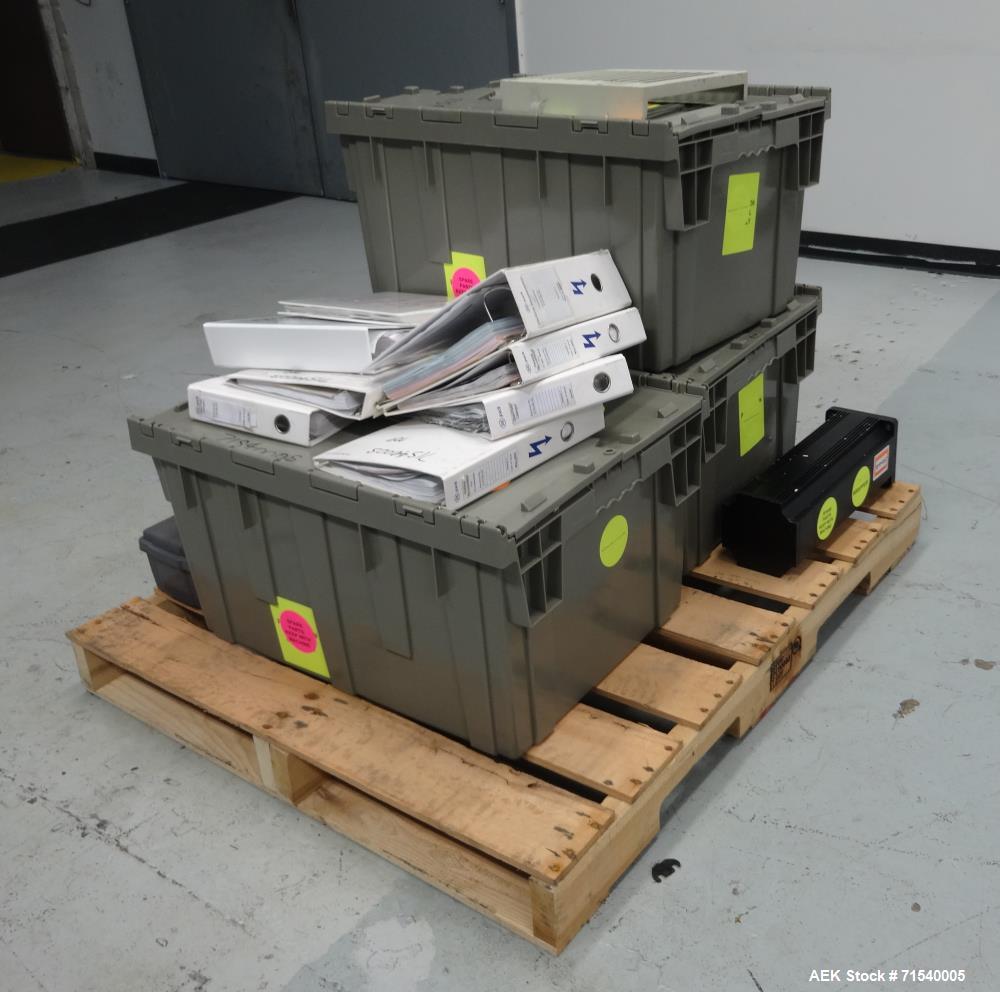

| Manual | Yes |
| Last Product Ran on Machine | Pharmaceutical Nebulizer Refills |
| Date Coder | Videojet |
| Casters | No |
| Gas Flush | Yes |
| Hole Punch | No |
| Splice Table | Yes |
| Low Film Sensor | Yes |
| High Product Detection | Yes |
| Year Built | 2002 |
