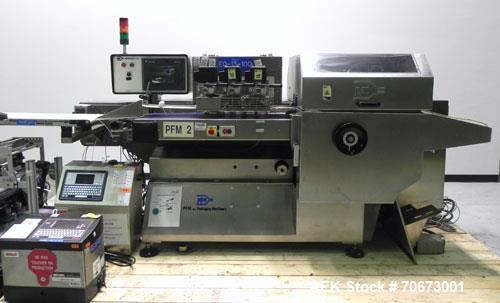

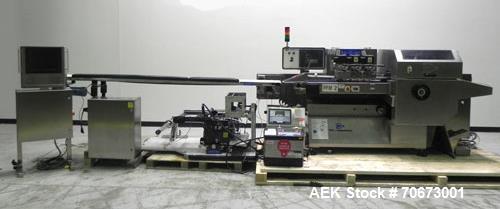

Used- PFM Model Tornado Inverted Seal Horizontal Flow Wrapper
Looking to Finance this item?
Apply Today!

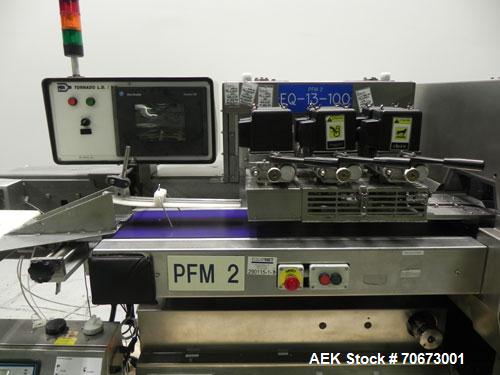

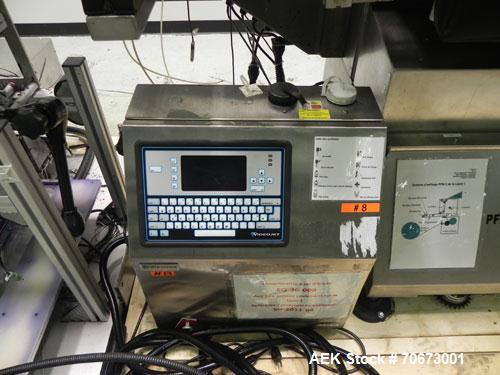

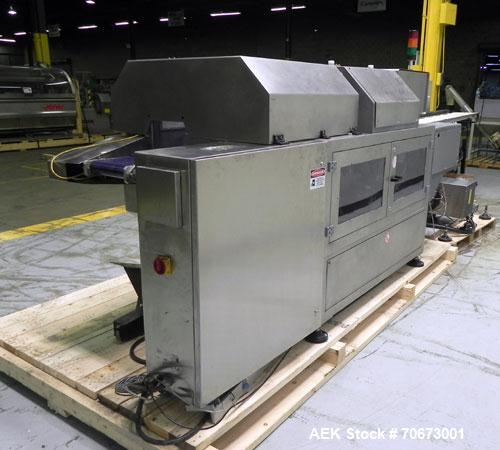

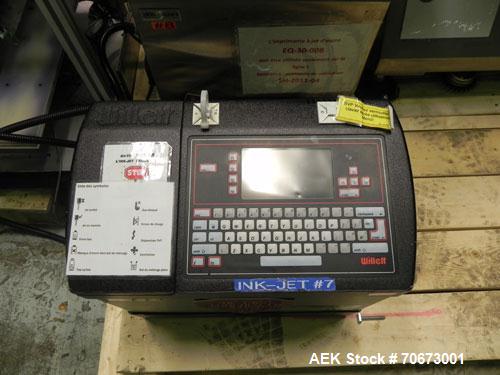

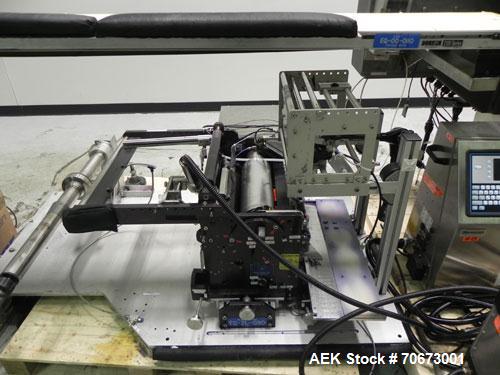

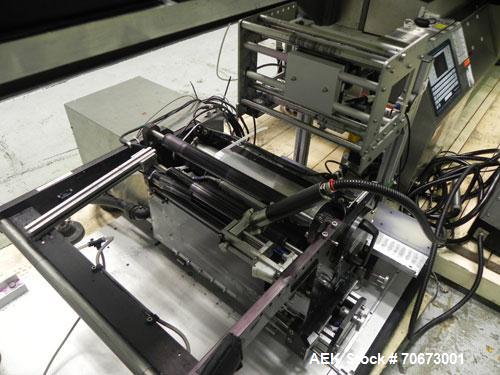

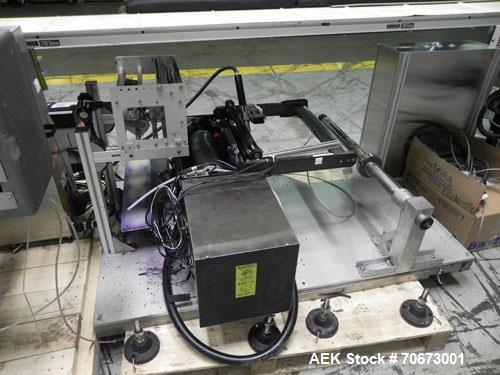

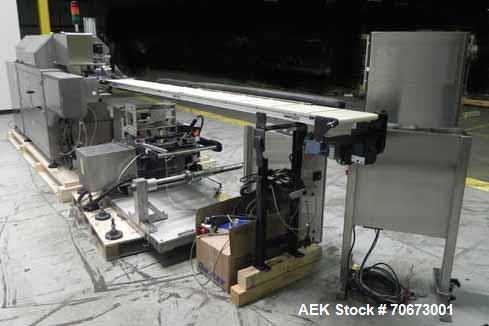

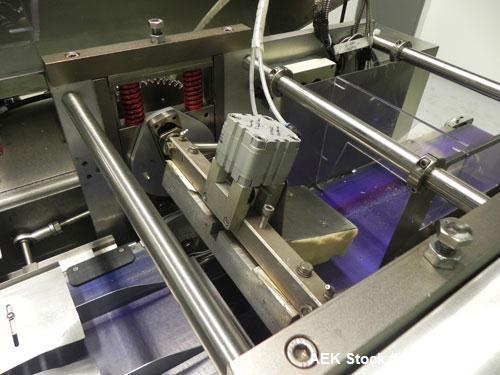

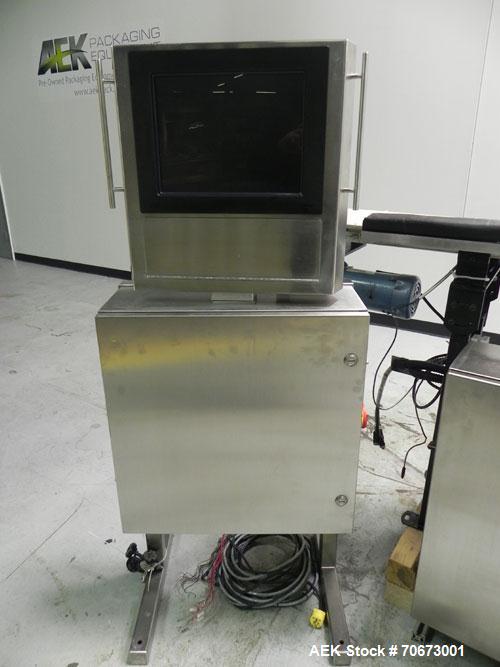

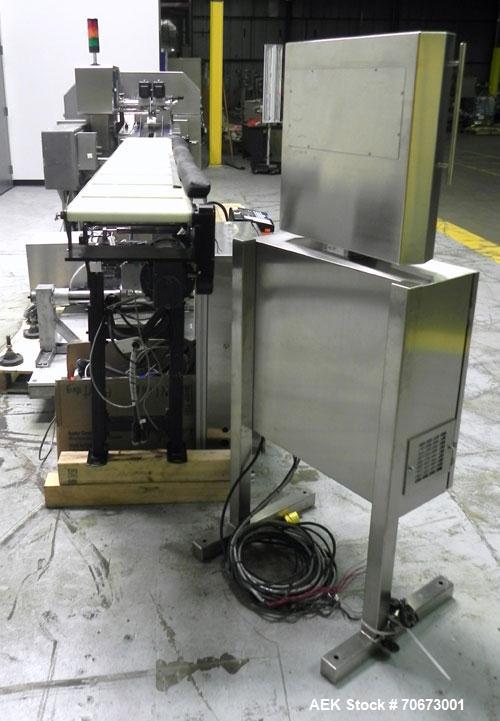

Used- PFM Model Tornado Inverted Seal Horizontal Flow Wrapper. Mechanical speed rated up to 100 ppm (40 meters per minute longitudinal seal speed), however product length and film will determine final maximum output. All stainless steel machine has a package size range of length 3.9" - 19.6" (100mm-500mm); width .39" - 11" (10mm-280mm); height 0 - 3.5" (0-90mm). The three maximum sizes cannot be run simultaneously. 1 Up long dwell seal jaw designed to run heat or cold seal wrapping material, polypropylene, perforated or laminates. Equipped with electric eye registration, Allen Bradley SLC 5/03 CPU PLC with Panelview 900 operator, 10' long x 12" wide cleated belt product infeed conveyor with approximately 1/8" high cleats on 11" centers, Greydon inline printer and Willett Model 450si ink jet coder. Electric 3/60/208/220V. Air 90 psi. Last ran medical device products. CE certified.
Manufacturer | PFM |
Model | Tornado |

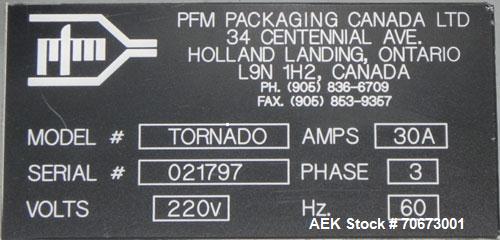

Serial # | 021797 |
Category | Packaging EquipmentPackaging Equipment |
Subcategory | Wrappers - Horizontal FlowWrappers - Horizontal Flow |
Model Number | PFM |
Speed Range CPM | 100 |
Package Size Range (Length) | 3.9"-19.6" |
Package Size Range (Width) | .39"-11" |
Package Size Range (Height) | 0-3.5" |

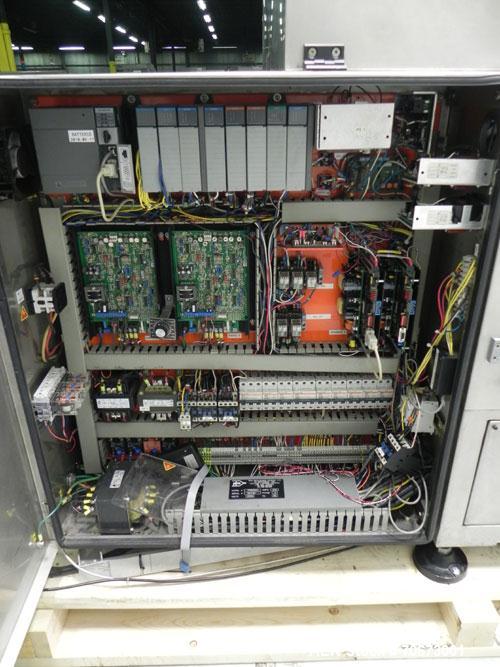

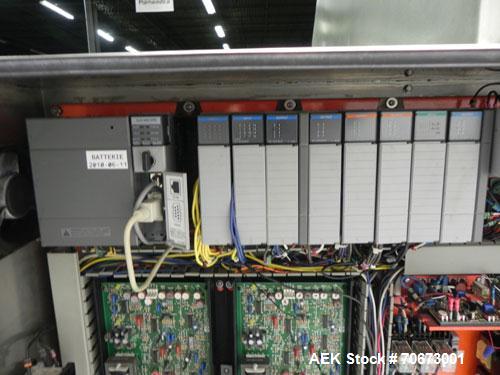

Brand of PLC | Allen Bradley SLC 5/03 |
Center Distance on Infeed Lugs | 11" |
Number of Web Arbors | Single |
Current Voltage | 208/220V |
OAD (Length) | 125 |
OAD (Width) | 67 |
OAD (Height) | 74 |
Manual | Yes |
Last Product Ran on Machine | Medical Devices |
Date Coder | Willett Model 450si |
Casters | No |
Gas Flush | No |
Hole Punch | No |
Splice Table | No |
Year Built | 1998 |
