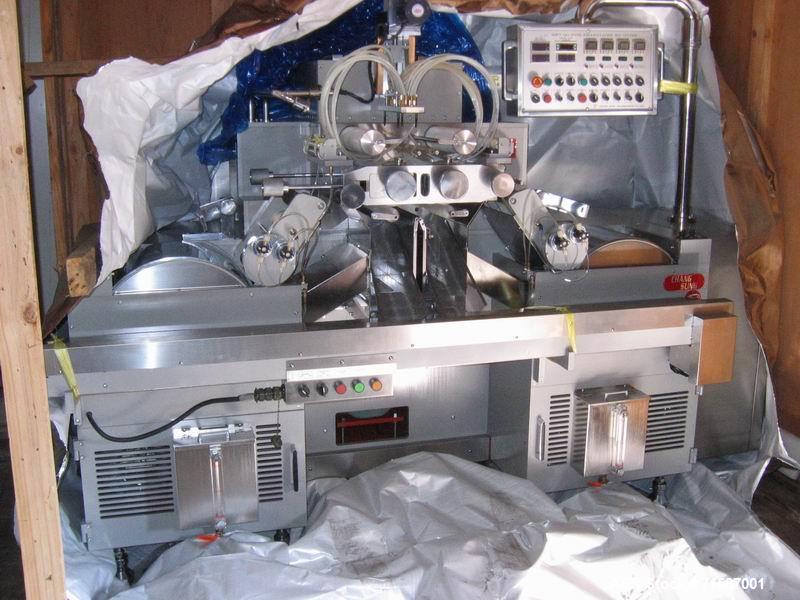

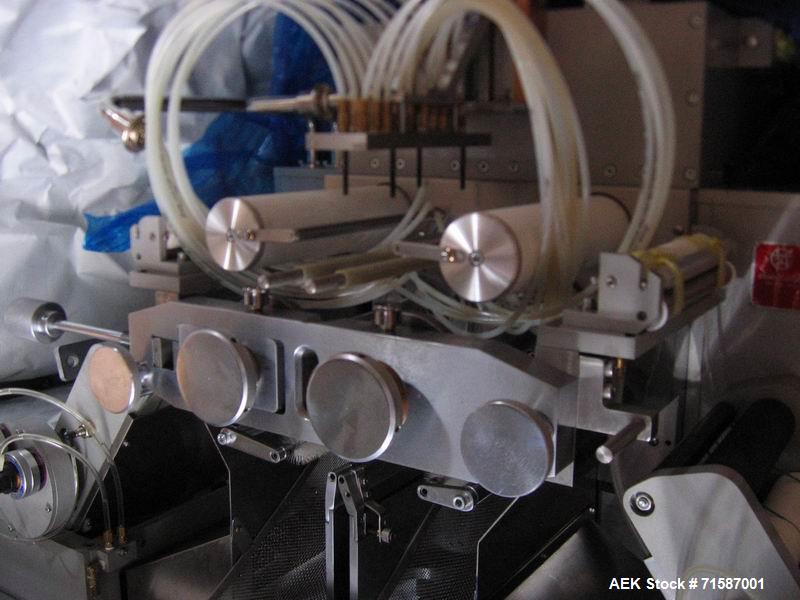

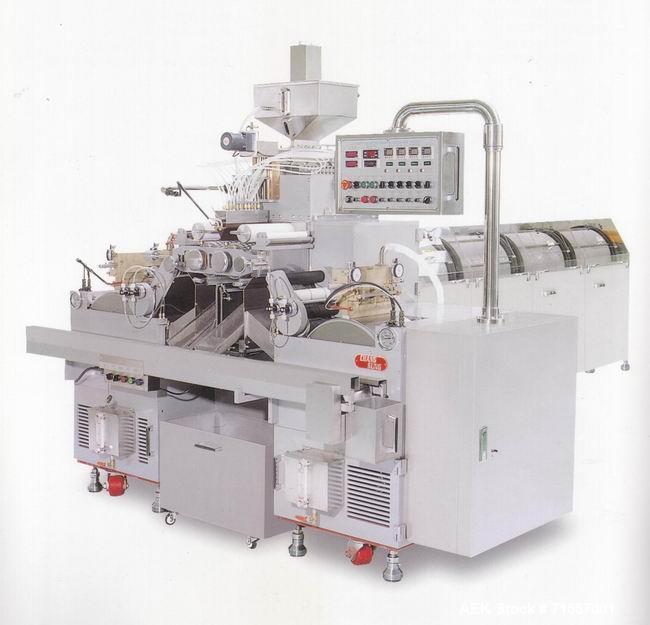

Used- Chang Sung Soft Gel Line. Production Rates: 41,000 129,000 caps per hour depending on product. Model CS-J1. Consisting of (1) Chang Sung Pharmatech Encapsulator 20 pistons, die roll size: 5,85" diameter x 9,75" (150 mm dia. x 250 mm) Duralumin. Cast drum size 19,5" diameter x 9,75" high (500 mm dia. x 250 mm high). Driven by a 3,75 hp (2,25 kW) 220V/50cycle/3ph motor. (1) Tumble dryer (6 buckets), size 210,6" x 35,1" x 47,58" high (5400 mm x 900 mm x 1220 mm high), driven by 1,12 HP x 6 (0.75 kW x 6) 220V/50cycle/3ph motor. (1) Reactor (Gelatin melting tank), capacity 400L x 2 with two 5 hp motors, two heating elements (2 x 5 kW), water sealed vacuum pump 5 hp. (1) Gelatin supplying tank, size 29,45" diameter x 42,9" high (755 mm diameter x 1100 mm high), capacity 180L x 2 tanks, temp range 158 194 F (70 90 C), temp. control with integrated sensor, heater 3 kW. (1) Medicine tank, size 26,52" diameter x 42,9" high (680 mm diameter x 1100 mm high), capacity 180L x 2 tanks, temp range 140 158 F (60 70 C), temp. control with integrated sensor, heater 3 kW. (1) Capsule drying vat (300 Vats), size 35,69" x 29,84" x 1,76" high (915 mm x 765 mm x 45 mm), loading 3000-4000 capsule per vat. (8) Capsule drying vat dolly, size 36,08" x 30,23" x 4,88" high (925 mm x 775 mm x 125 mm), loading 30-40 vat per dolly. (100) Polishing Rags. (1) AVR device. Mfg. 2004.roll size: 5,85" dia. X 9,75" (150 mm dia. x 250 mm) Duralumin. Cast drum size 19,5" dia. X 9,75" high (500 mm dia. x 250 mm high). Driven by a 3,75 HP (2,25 kW) 220V/50cycle/3ph motor. (1) Tumble dryer (6 buckets), size 210,6" x 35,1" x 47,58" high (5400 mm X 900 mm X 1220 mm high), driven by 1,12 HP x 6 (0.75 kW x 6) 220V/50cycle/3ph motor. (1) Reactor (Gelatin melting tank), capacity 400L X 2 with two 5 HP motors, two heating elements (2 x 5 kW), water sealed vacuum pump 5 HP. (1) Gelatin supplying tank, size 29,45" dia. X 42,9" high (755 mm dia. X 1100 mm high), capacity 180L x 2 tanks, temp range 158 194 F (70 90 C), temp. control with integrated sensor, heater 3 kW. (1) Medicine tank, size 26,52" dia. X 42,9" high (680 mm dia. X 1100 mm high), capacity 180L x 2 tanks, temp range 140 158 F (60 70 C), temp. control with integrated sensor, heater 3 kW. (1) Capsule drying vat (300 Vats), size 35,69" x 29,84" x 1,76" high (915 mm x 765 mm x 45 mm), loading 3000-4000 capsule per vat. (8) Capsule drying vat dolly, size 36,08" x 30,23" x 4,88" high (925 mm x 775 mm x 125 mm), loading 30-40 vat per dolly. (100) Polishing Rags. (1) AVR device. Mfg. 2004. Located in Continental Europe Pricing is subject to EU to USD exchange rates at time of purchase.
