Used-Winkworth GU-660 Double Spiral Ribbon Blender, interrupted, gross capacity 226 gallons (858 liters), net capacity 174 gallons (660 liters), speed 30 rpm, trough dimensions 48" long x 27.5" wide x 31.4" high (1750 mm x 700 mm x 800 mm), full size hinged counter-balanced sealed clamped cover, charging openings diameter 7.8" (2 x 200 mm), product discharge diameter 7.8" (200 mm), discharge height 32.3" (820 mm), 380V/50 Hz/7.5 kW/10 hp.
more info...
|

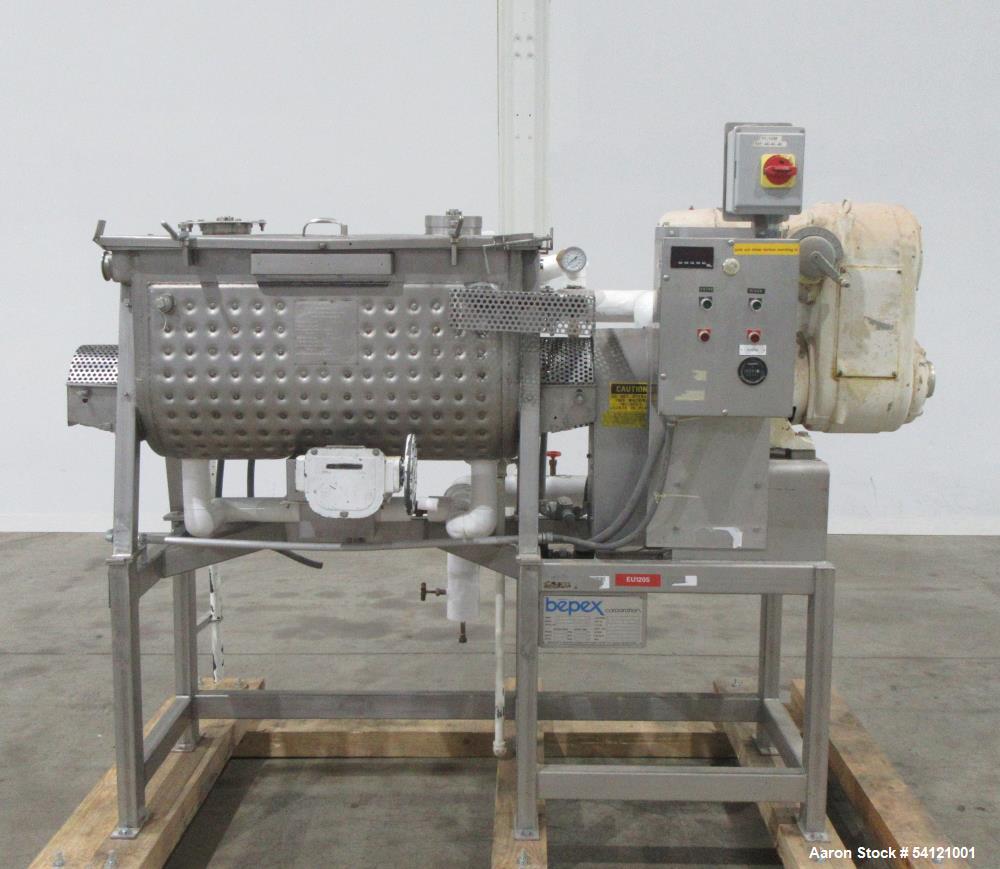

Used- Hosokawa Bepex Strong Scott Double Spiral Ribbon Blender, Model IMHS-2, 2 cubic feet working capacity, 316 stainless steel. Dimple jacketed trough approximately 14" wide x 30'' long x 13'' deep, internal rated full vacuum at 570 deg F, jacket rated 100 psi at 572 deg F, and 32 deg F at 100 psi. 3" diameter shaft, inner ribbon 1 1/2" wide x 1/4" thick, outer 3/8" wide x 1/4" thick welded to 3/4'' diameter posts. 3" end bottom outlet. Bolt on top cover with 2'', 6'' with cover, 4'' hand hole with a 2 1/2'' sight glass in the cover. Driven by a 3 hp, 3/60/230/460 volt, 1755 rpm XP motor thru a reducer. Approximate ribbon rpm 60. Mounted on a stainless steel frame with casters. Built 2004.
more info...
|
|
|
|
|
|
|
|
|

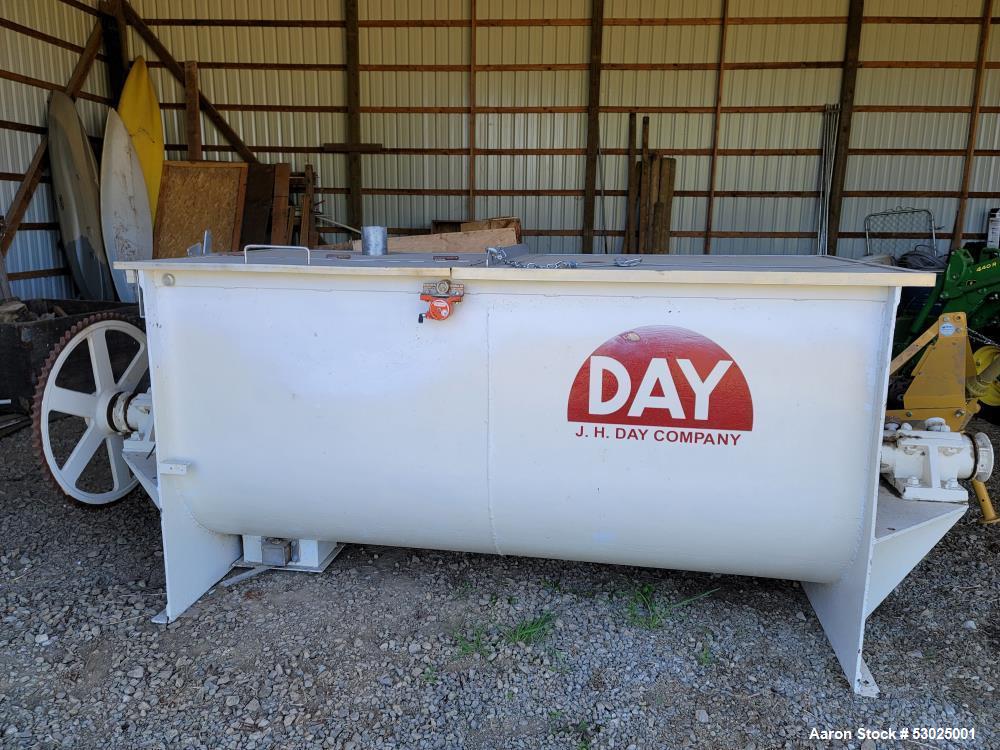

Used- J H Day Double Spiral Ribbon Blender, Model D, 17.5 Cubic Feet Working Capacity (19.5 Total), 304 Stainless Steel Clad. Non-Jacketed trough 24" wide x 60" long x approximately 26" deep. 2" Diameter shaft, inner ribbon 1-1/2" wide x 1/8" thick, outer ribbon 1-1/16" wide x 5/16" thick, welded to 3/4” diameter posts. 6” Center bottom outlet, no valve. (2) Section top hinged cover with (2) section top hinged safety grates, outboard roller bearings, standard stuffing box. Set up for chain and sprocket drive, no motor, or reducer. Mounted on carbon steel legs with have been cut.
more info...
|
|
|
|
|
|
|
|
|
|
|
Used- Lee Industries Double Spiral Ribbon Blender, 27.8 Cubic Feet (1200 Pound) Working Capacity, Model 1200TDR, 316 Stainless Steel. #4 Finish Non-jacketed trough 30’’ wide x 60’’ long x 32’’ deep. Open top, no cover. 3-1/2'' Diameter shaft, inner ribbon 2'' wide x 5/16'' thick, outer ribbon 2'' wide x 5/16'' thick, welded to 2'' diameter posts. (2) Stuffing boxes, (1) pillow block. Driven by an approximate 10hp gear motor, ratio 86.52 to 1. Approximate 20 output ribbon rpm. 11-3/4'' x 11-3/4'' End bottom discharge, height approximately 38”. Mounted on (4) 304 stainless steel legs.
more info...
|
Used- J.H. Day Double Spiral Ribbon Blender, model D-10F, 36 cubic feet working capacity, 40 total, carbon steel. Non-jacketed trough 30" wide x 78" long x approximately 32" deep. 2-1/2" diameter shaft, inner ribbon 1-1/2" wide x 1/8" thick welded to 3/4’’ diameter posts, outer ribbon 1-1/2" wide x 1/4" thick welded to 1-1/4" diameter posts. 6" center bottom outlet, no valve. (2) Section top hinged cover. Blender driven by a 10 hp, 3/60/208-220/440 volt, 1750 rpm gear motor, no ratio. Mounted on 4 carbon steel legs.
more info...
|
|
|
|
|
|
|
|
|
Used- Custom Double Spiral Ribbon Blender, 55 Cubic Feet Working Capacity, 304 Stainless Steel. Non-Jacketed trough 34-1/2” wide x 90-1/2” long x approximately 38” deep. 6" Diameter shaft, inner ribbon 2" wide x 1/4" thick, outer ribbon 1-1/2" wide x 1/4" thick, welded to 1” diameter posts. 8” Center bottom outlet with an air operated slide valve. (1) Piece bolt-on top cover with (1) 18” x 28” hinged door, (1) 12” x 24” hinged door, (1) 12” x 28” hinged door, (1) 12” x 36” opening. Outboard roller bearings, air seals. No motor, reducer or legs. Mounts on carbon steel lugs.
more info...
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Used- Aaron Process Equipment Ribbon Blender, 80 Cubic Feet, 304 Stainless Steel. Trough 40” wide x 96” long x approximate 48” deep, dimple jacketed on bottom only, rated 50 psi. 5” Diameter shaft, inner ribbon 2” wide x 1/2” thick, outer ribbon 2” wide x 5/8” thick, welded to 3/8” thick support bars. (1) Piece hinged top cover, split packing glands, outboard roller bearings. 6" Diameter center bottom outlet, no valve. Driven by a 40hp, 3/60/440 volt, 1760 rpm motor thru a reducer, no ratio. Mounts on 4 carbon steel legs.
more info...
|
|
|
|
|
Used- J.H. Day Double Spiral Ribbon Blender, 100 cubic feet working capacity (115 total), 304 stainless steel. Non-Jacketed trough 40" wide x 120" long x approximately 47" deep. 6" Diameter shaft, inner ribbon 2" wide x 3/8" thick, outer ribbon 2" wide x 1" thick, welded to 1-3/4" diameter posts. 8" Center bottom outlet, no valve, no top cover, outboard roller bearings, standard stuffing box. Set up for chain and sprocket drive. Requires motor and reducer. Mounted on stainless steel legs, no extensions.
more info...
|
|
|
|
|
|
|
|
|
|
|
|
|
Used- J.H. Day Double Spiral Ribbon Blender, 185 cubic feet working capacity, 304 stainless steel. Non-jacketed trough 50" wide x 144" long x approximately 59" deep. 6" Diameter shaft, inner ribbon 2" wide x 3/8" thick, outer ribbon 2" wide x 1" thick, welded to 2" diameter posts. 10" x 12" Center bottom outlet with a slide gate valve. (3) Section bolt-on top cover, outboard roller bearings, standard stuffing box. Chain and sprocket drive with a 100 hp, 3/60/230/460 volt, 1775 rpm thru a reducer, no ratio. Mounted on carbon steel legs with 34" tall extensions.
more info...
|
|
|
|
|
|
|
Used- Mueller Double Spiral Ribbon Blender, 220 cubic feet working capacity, 304 stainless steel. 304 Stainless steel non-code dimple jacketed trough 60" wide x 129" long x approximately 60" deep, rated 300 psi at 400 degrees F. Approximately 6" diameter shaft, inner ribbon 3" wide x 1/4" thick, outer ribbon 3" wide x 1/2" thick, welded to 3-1/2" diameter posts. 3" Diameter center bottom outlet, no valve. (1) Piece domed top 316 stainless steel cover with 1", (4) 1-1/2", 2", (3) 3", (2) 6", 17" x 22" with hinged door, 7-1/2" x 21-1/2", 10-1/2" x 13". (2) Chesterton 442-50 split mechanical seals, outboard roller bearings. Mixer driven by a triple chain drive, 50 hp, 3/60/230/460 volt, 1770 rpm motor thru a Falk reducer, ratio 21.35 to 1. Mounted on stainless steel legs which have been cut.
more info...
|
|
|
|
|
|
|
|
|
|
|
|
|
