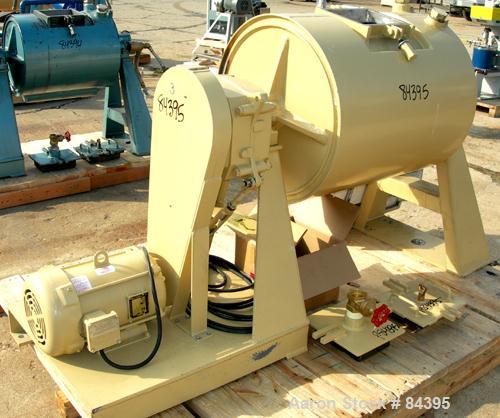

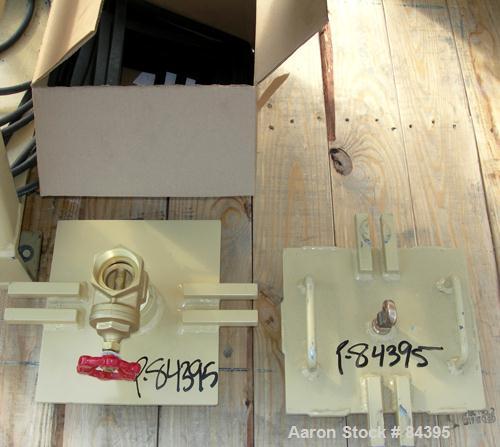

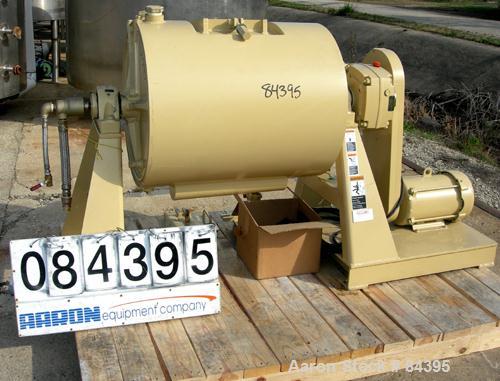

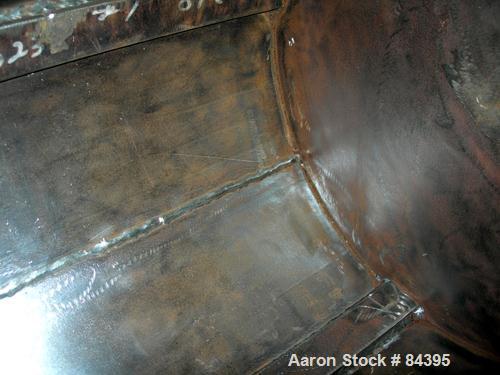

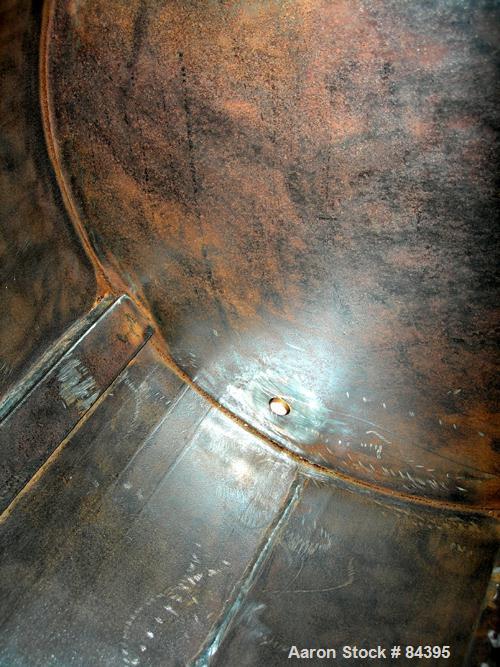

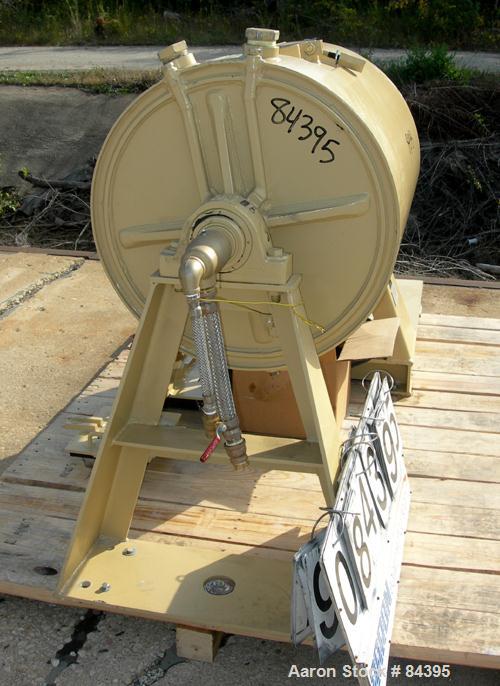

USED: Paul O Abbe ball mill, model BM8A. 24" diameter x 30" long inside shell. Cylinder material abrasion resistant steel. Fully welded lifter bars. Total mill volume 59.8 gallons. Free flowing cooling jacket with welded baffles for even distribution of cooling fluid, rated less than 14.7 psig @ 250 deg F. Rotary union with braided steel hoses. Manhole 7.75" x 9.25". Grinding cover carbon steel. Wet discharge cover with grate having 0.25" slots covered with wire mesh. 2" NPT port for discharge valve. Balance block: counter weight for cover. Drive: primary reduction belt drive, secondary reduction shaft mounted gear reducer. Motor 7.5 hp, 3/60/230/460 volt. Cylinder speed 34 rpm. 2 trunnions, heavy duty support stands. 18" clearance to floor. Total weight empty 1,850 lbs. Year 2005.
