Used- Pfaudler Wipe Film Evaporator

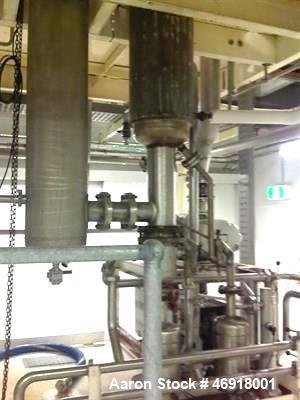

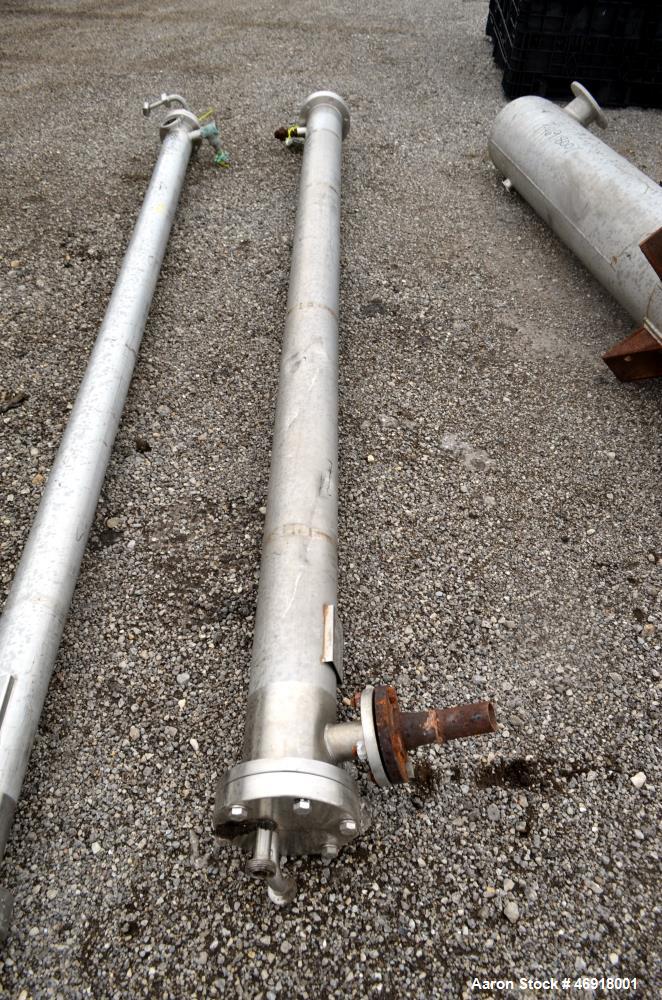

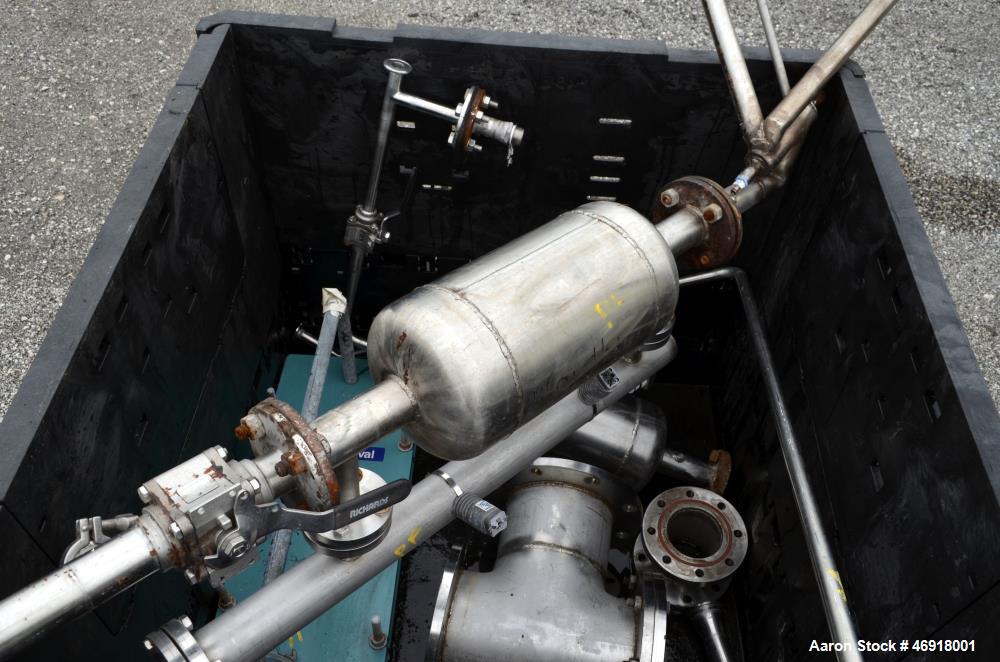

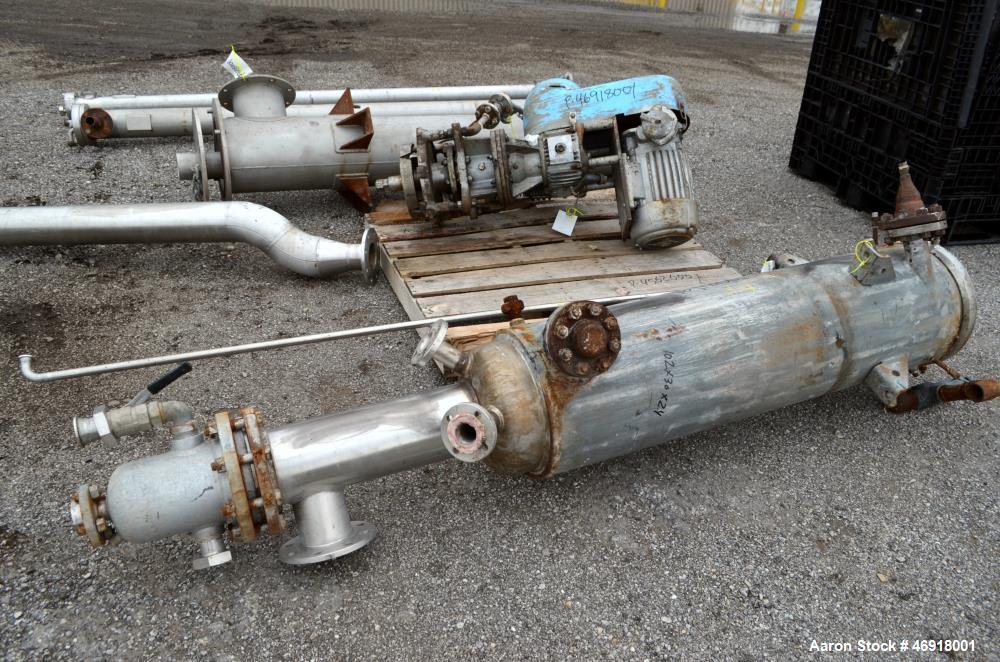

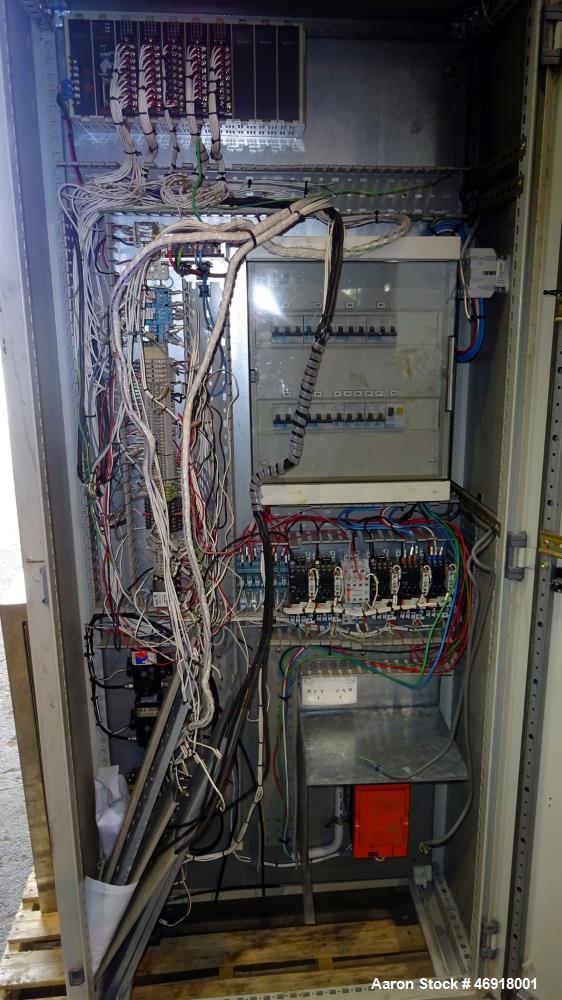

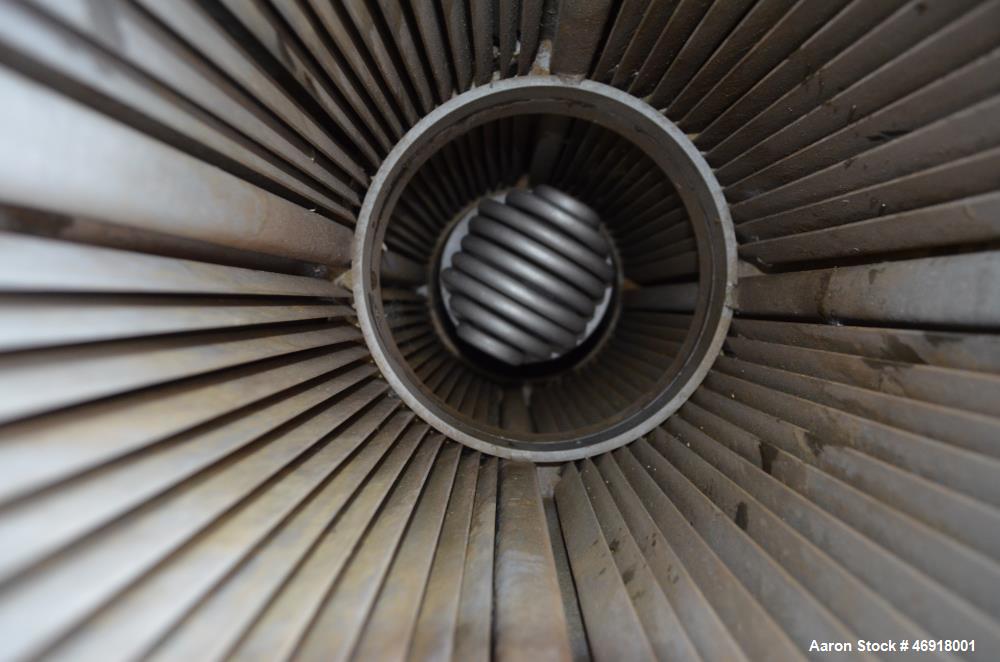

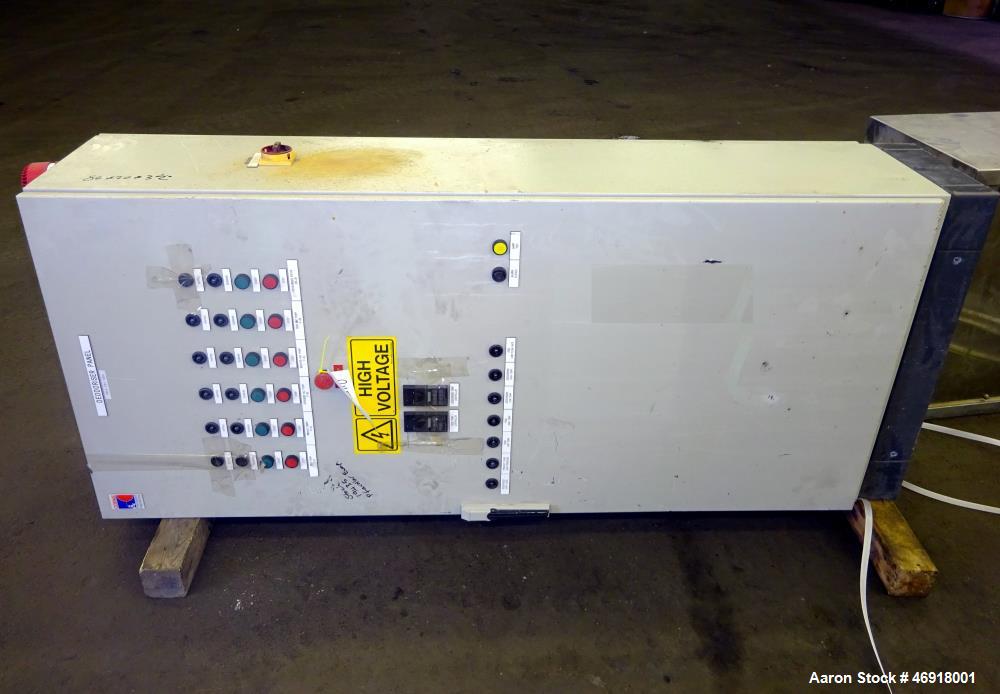

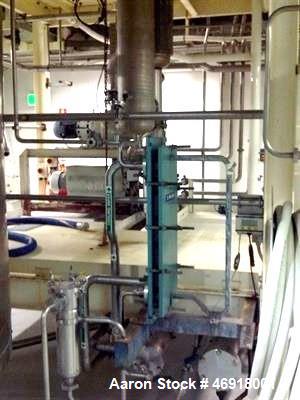

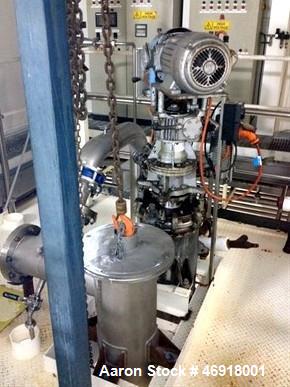

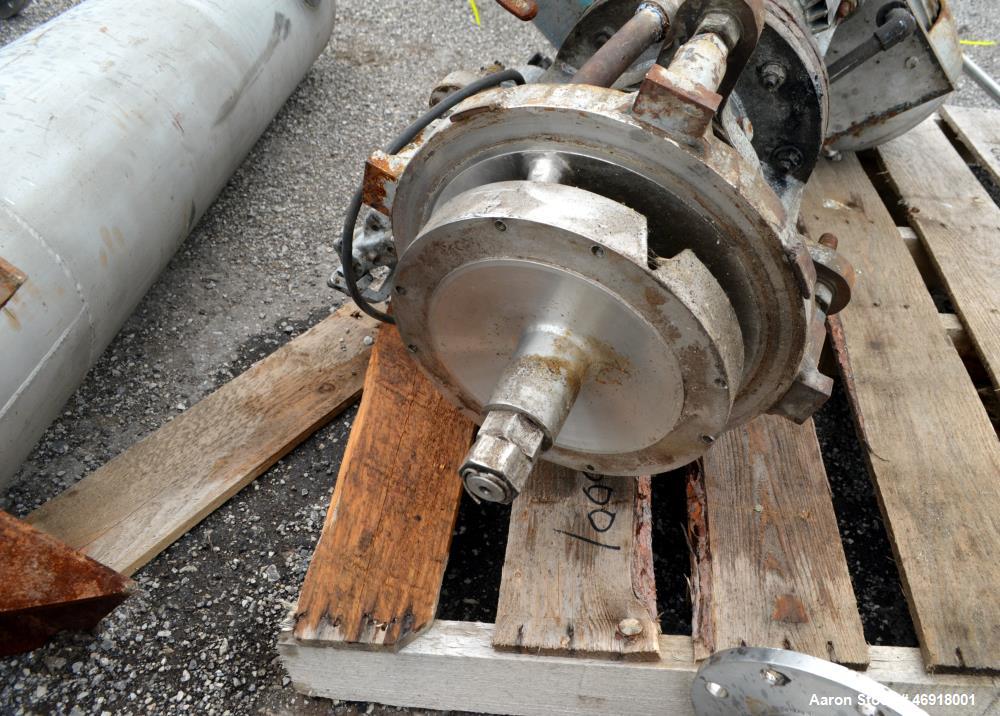

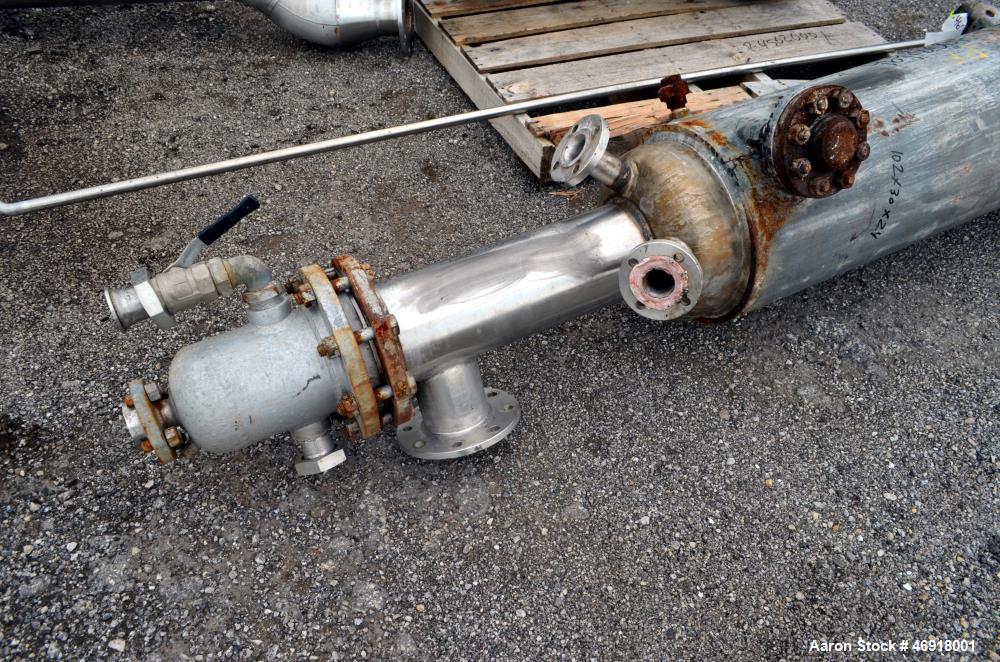

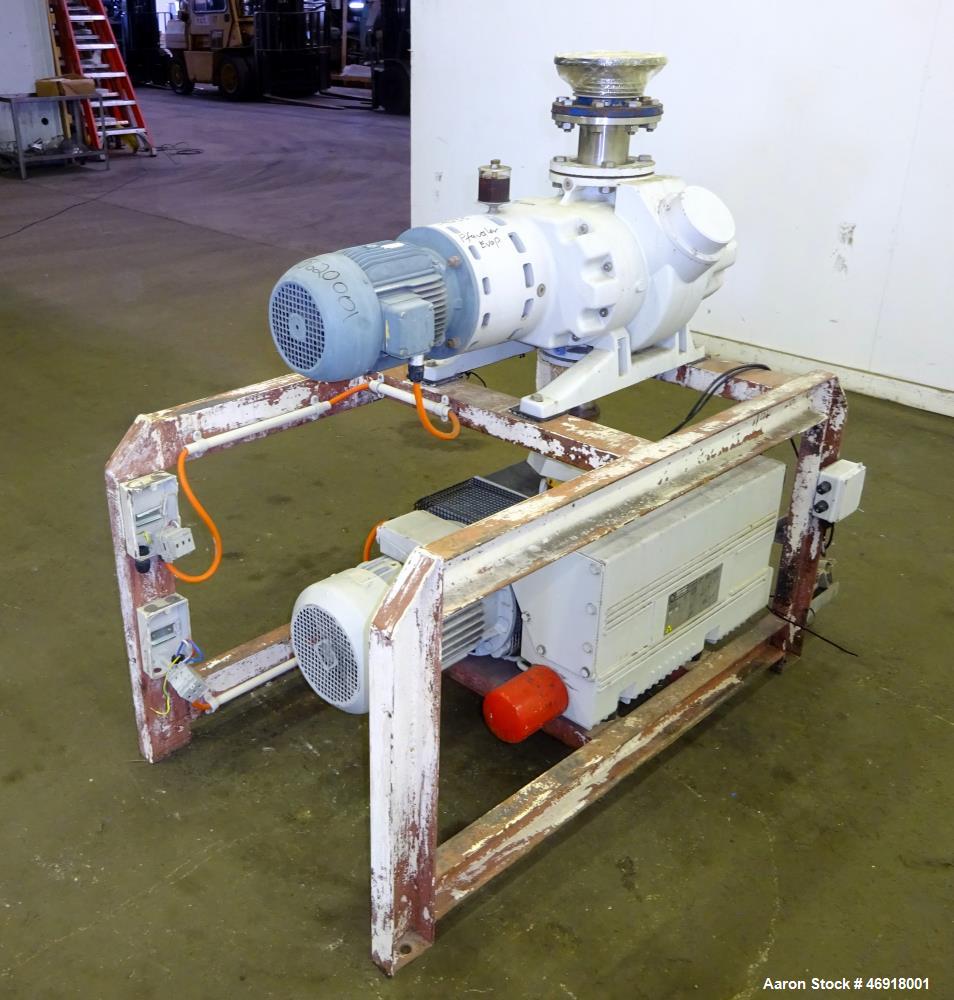

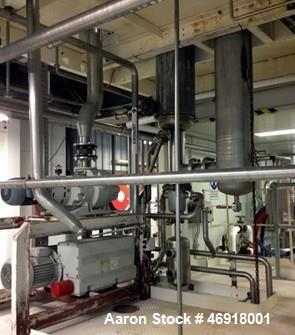

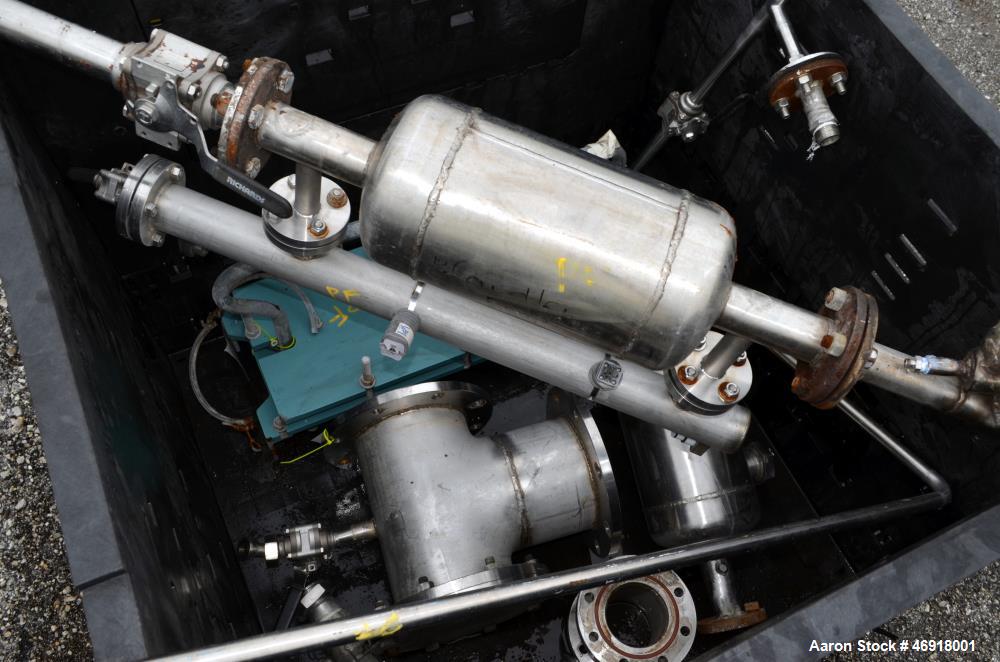

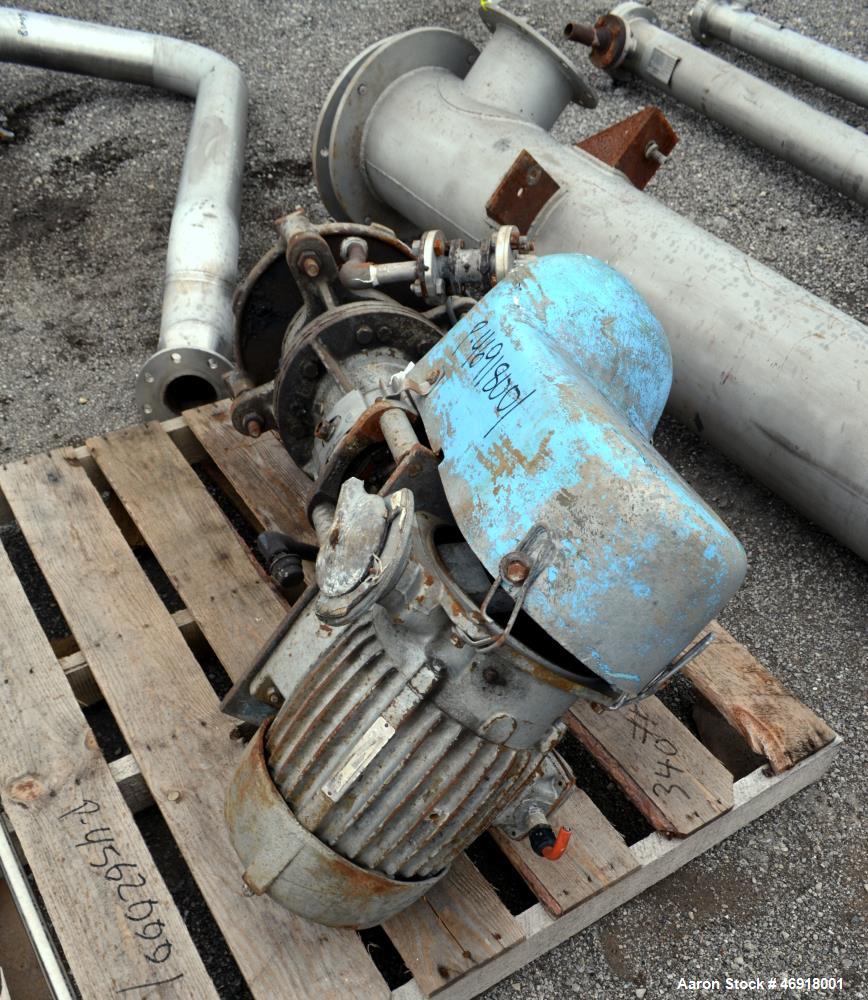

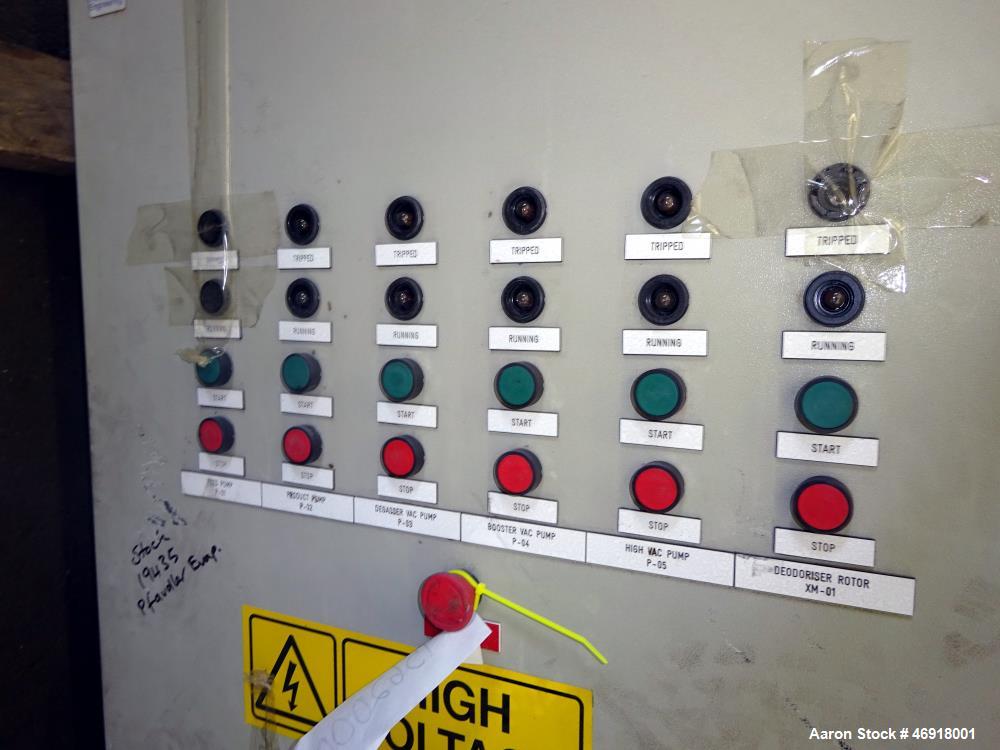

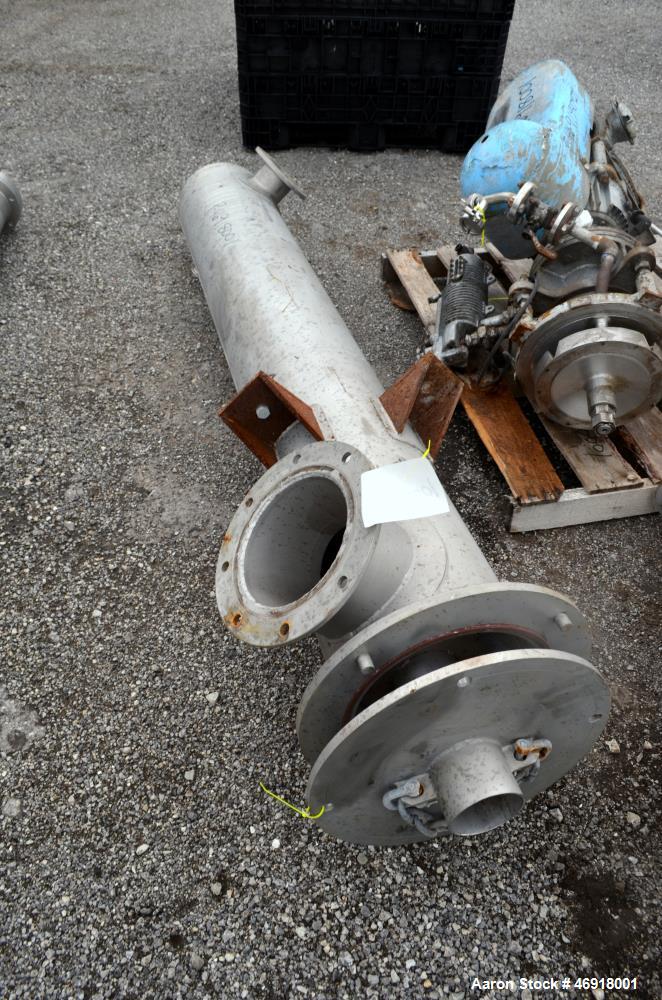

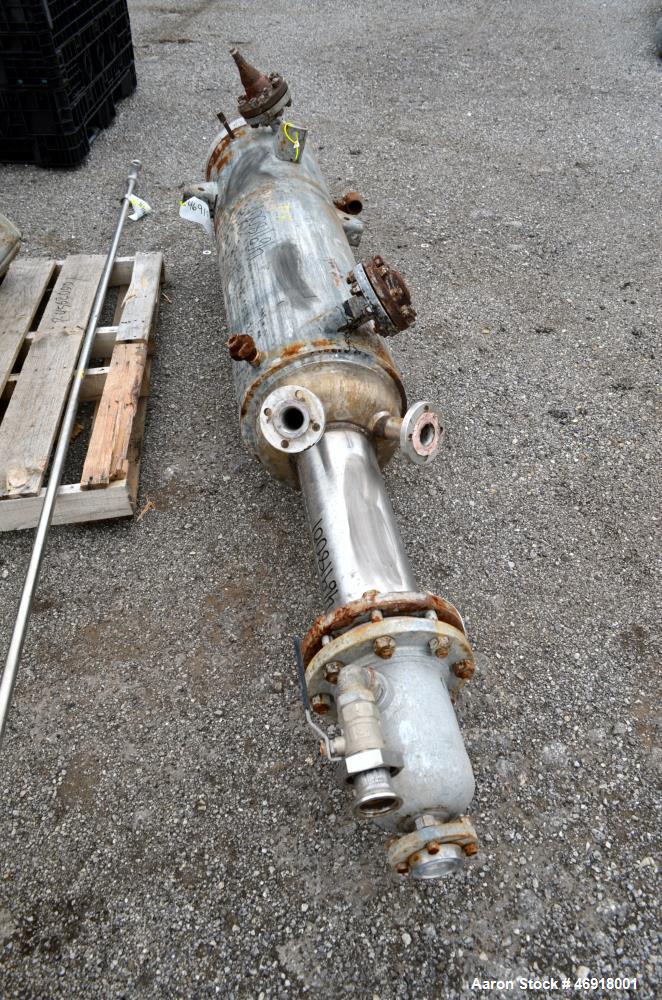

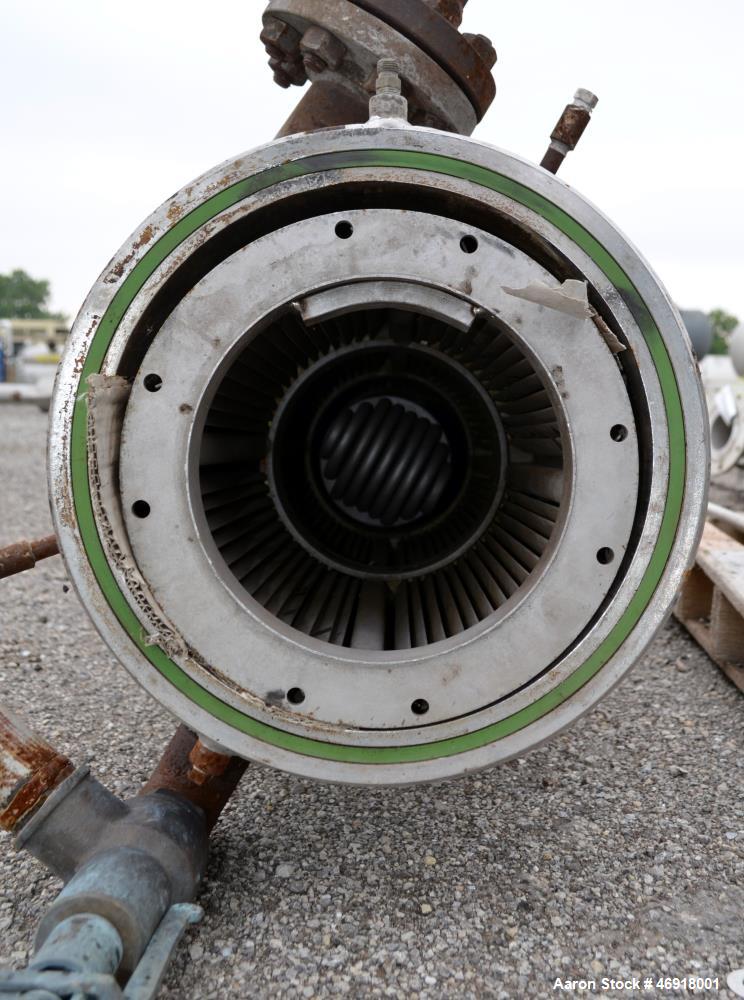

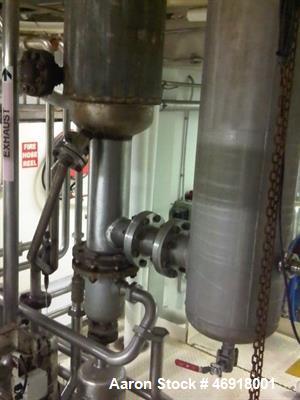

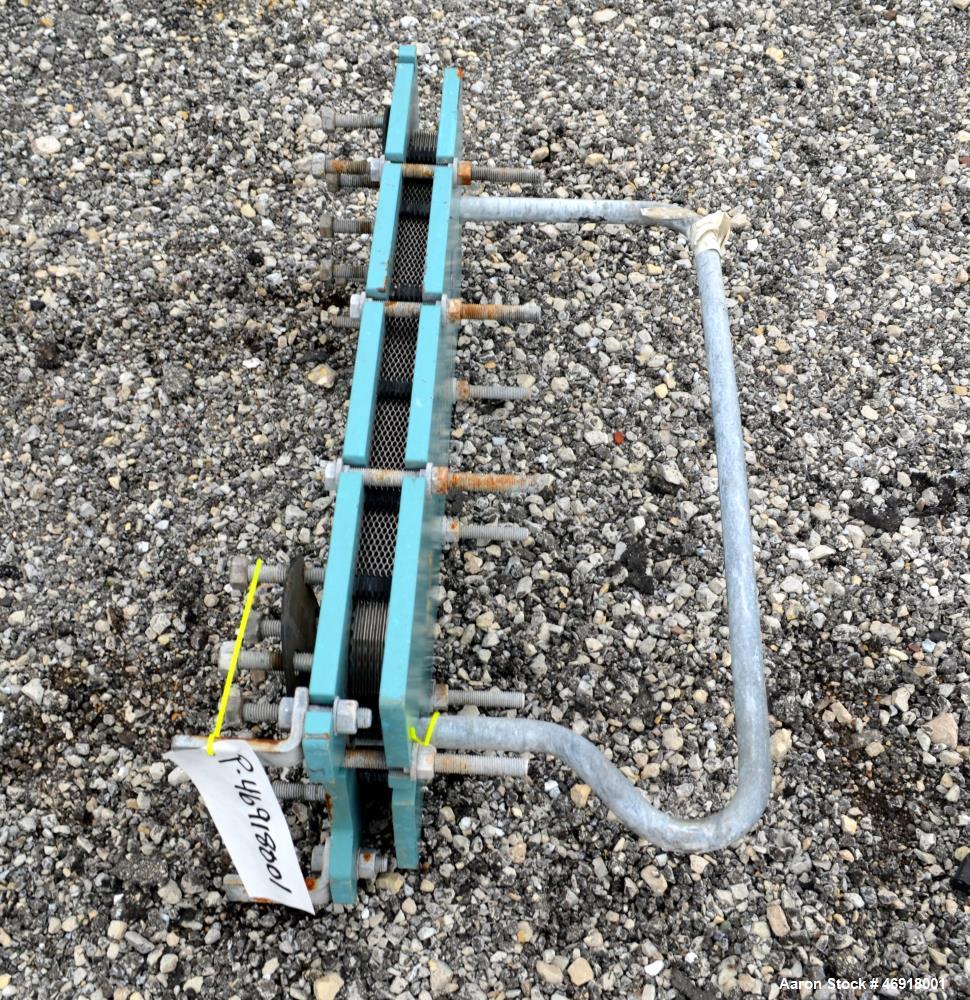

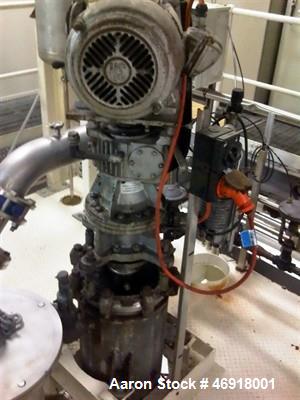

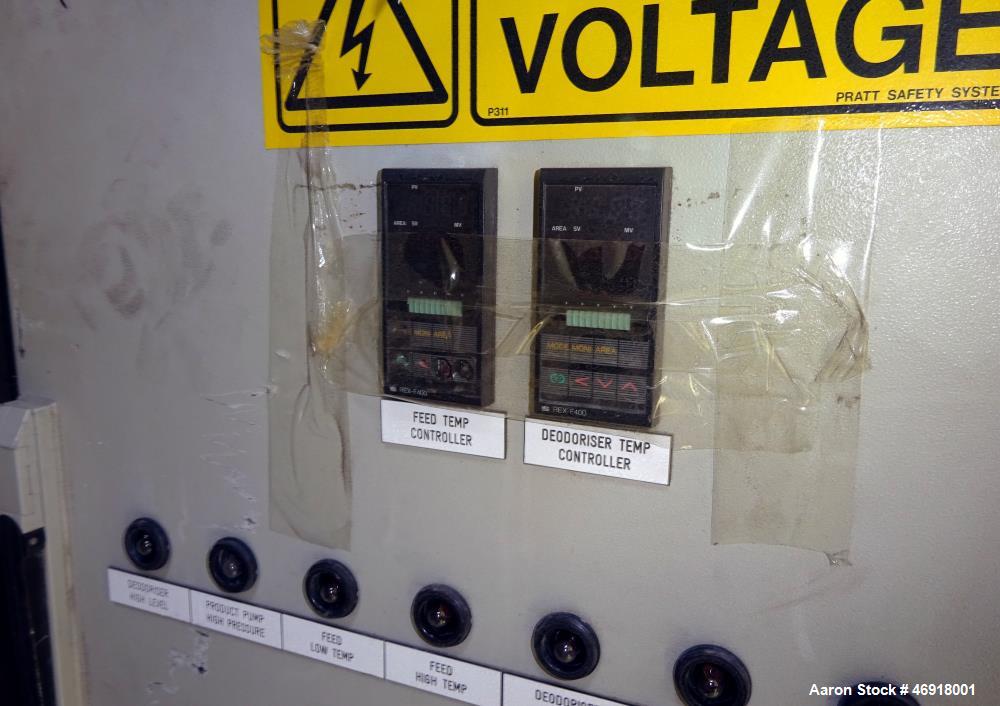

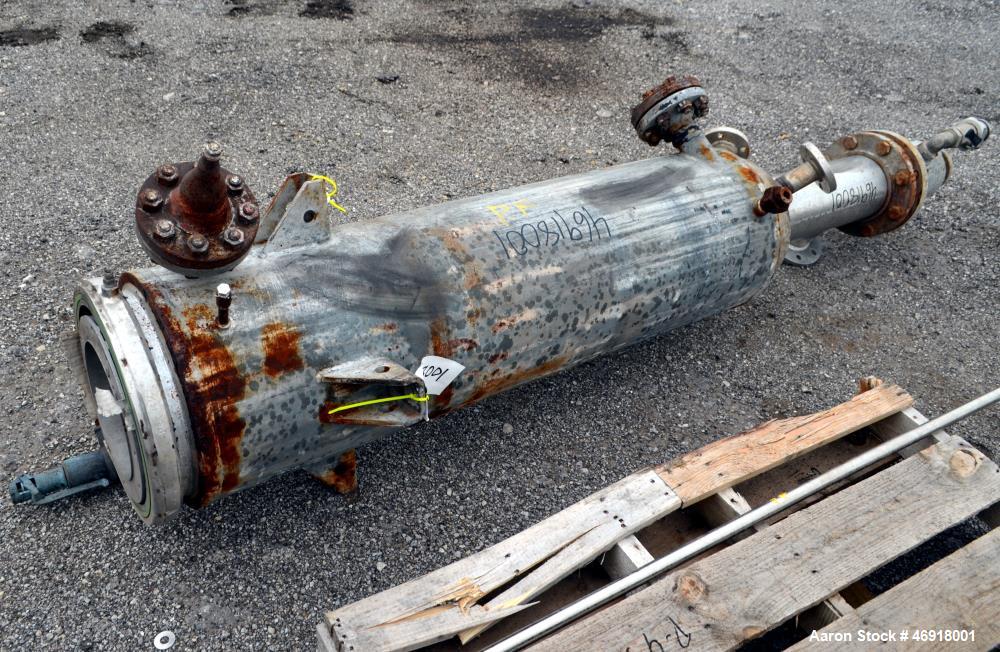

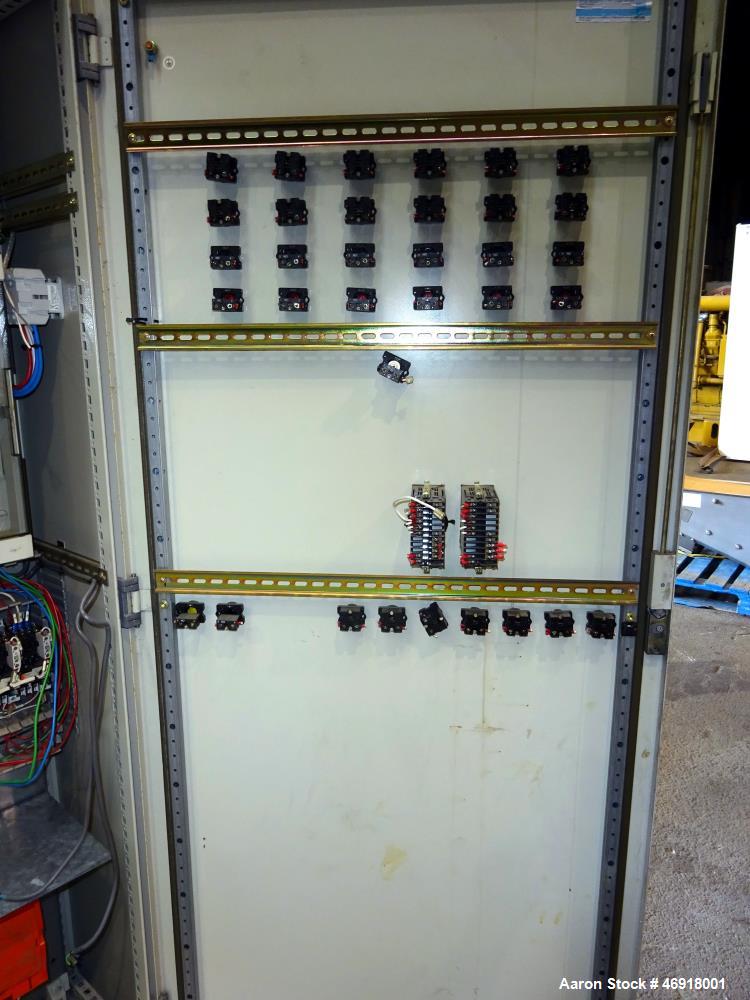

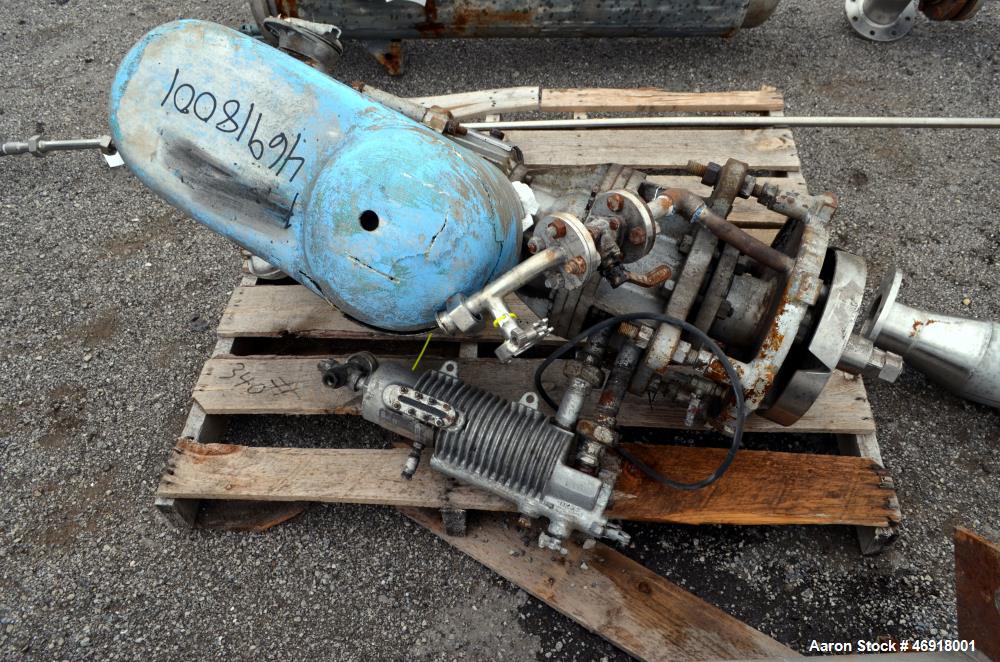

Used- Pfaudler Wiped Film Evaporator, 12 Square Foot Evaporating Area, 18.4 Square feet Condensing Surface, 316 Stainless Steel. Carbon steel jacketed chamber approximate 12" diameter x 48" straight side. Internal rated Vacuum at 340 degrees F, approximate jacket rating 90 psi. Includes distributor plate, feed Weir, internal condenser, and rotor driven by a Pfaudler 3TWV drive, Model SV-45990C-AKC, Serial# 38771X, ratio 5 to 1. Driven by a 3 hp, 3/60/208-220/440 volt, 1800 rpm variable speed motor with lubricator. 1" Top feed, 4" bottom vapor outlet, 1-1/2", 2" residue outlets, 2" condenser inlet & outlet, 1-1/2" distillate outlet. Mounts on side lugs. Includes a Leybold Ruvac vacuum pump, Type WAU-1001, Serial# 11741-A971200005, and a Leybold vacuum pump, Model SV300-190-31, Serial# J97-11-00041. (1) Alfa Laval plate heat exchanger, Model M6-FM, Serial# 9810140712, (1) Hipex shell & tube heat exchanger, Model PT150-18-3000, Serial# S1162A, (1) Hipex shell & tube heat exchanger, Model PT115-18-3000, Serial# S1162B, (1) control panel and miscellaneous piping. Last use was on Food grade Omega 3 DHA Fish Oil.
Used- Pfaudler Wiped Film Evaporator, 12 Square Foot Evaporating Area, 18.4 Square feet Condensing Surface, 316 Stainless Steel. Carbon steel jacketed chamber approximate 12" diameter x 48" straight side. Internal rated Vacuum at 340 degrees F, approximate jacket rating 90 psi. Includes distributor plate, feed Weir, internal condenser, and rotor driven by a Pfaudler 3TWV drive, Model SV-45990C-AKC, Serial# 38771X, ratio 5 to 1. Driven by a 3 hp, 3/60/208-220/440 volt, 1800 rpm variable speed motor with lubricator. 1" Top feed, 4" bottom vapor outlet, 1-1/2", 2" residue outlets, 2" condenser inlet & outlet, 1-1/2" distillate outlet. Mounts on side lugs. Includes a Leybold Ruvac vacuum pump, Type WAU-1001, Serial# 11741-A971200005, and a Leybold vacuum pump, Model SV300-190-31, Serial# J97-11-00041. (1) Alfa Laval plate heat exchanger, Model M6-FM, Serial# 9810140712, (1) Hipex shell & tube heat exchanger, Model PT150-18-3000, Serial# S1162A, (1) Hipex shell & tube heat exchanger, Model PT115-18-3000, Serial# S1162B, (1) control panel and miscellaneous piping. Last use was on Food grade Omega 3 DHA Fish Oil.
