USED: Guedu pan dryer, Hastelloy C-22 contact areas. 1000 to 2000 liter working capacity, 3000 liter total. Vessel is 68" di...

Stock# 80031

Image 1 - Click to Enlarge

Download All Photos For This Item

USED: Guedu pan dryer, Hastelloy C-22 contact areas. 1000 to 2000 liter working capacity, 3000 liter total. Vessel is 68" di...

Stock # 80031

ITEM SOLD!

View All 7 available items

SELL YOUR VACUUM PAN DRYERS

DESCRIPTION

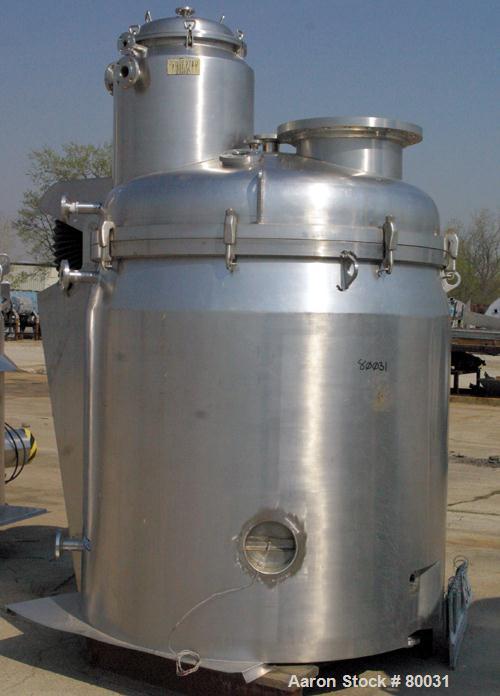

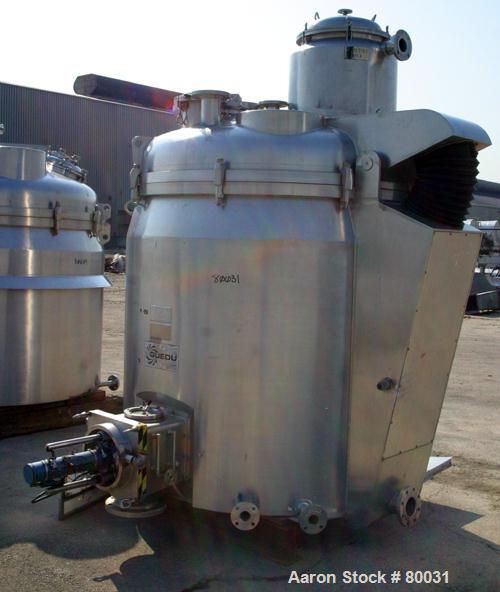

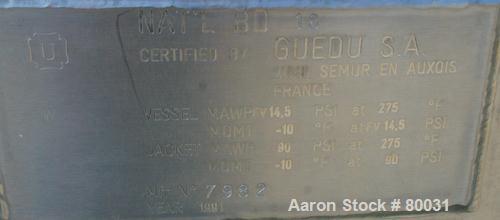

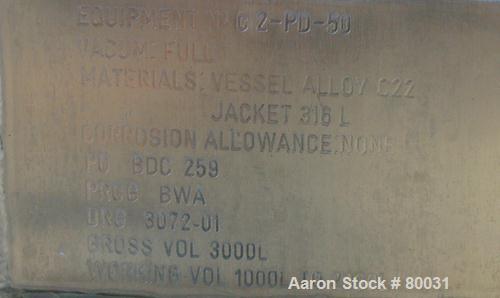

USED: Guedu pan dryer, Hastelloy C-22 contact areas. 1000 to 2000 liter working capacity, 3000 liter total. Vessel is 68" diameter x 70" straight side, dished bolt-on top, flat bottom. Internal rated 14.5 psi/fv at 275 deg F, 316 stainless steel jacket rated 90 psi at 275 deg F. Openings: top (1) 19", (1) 10" with 6" sight glass in cover, (1) 4", (2) 3", (1) 1", (1) 20" manway with cover, (1) 6" drive; approximate 10" side bottom outlet with plug valve; 11" center bottom outlet. OAD 90" wide x 110" long x 128" tall.
