Used- Wyssmont Model Turbo-Dryer Model N-25-28

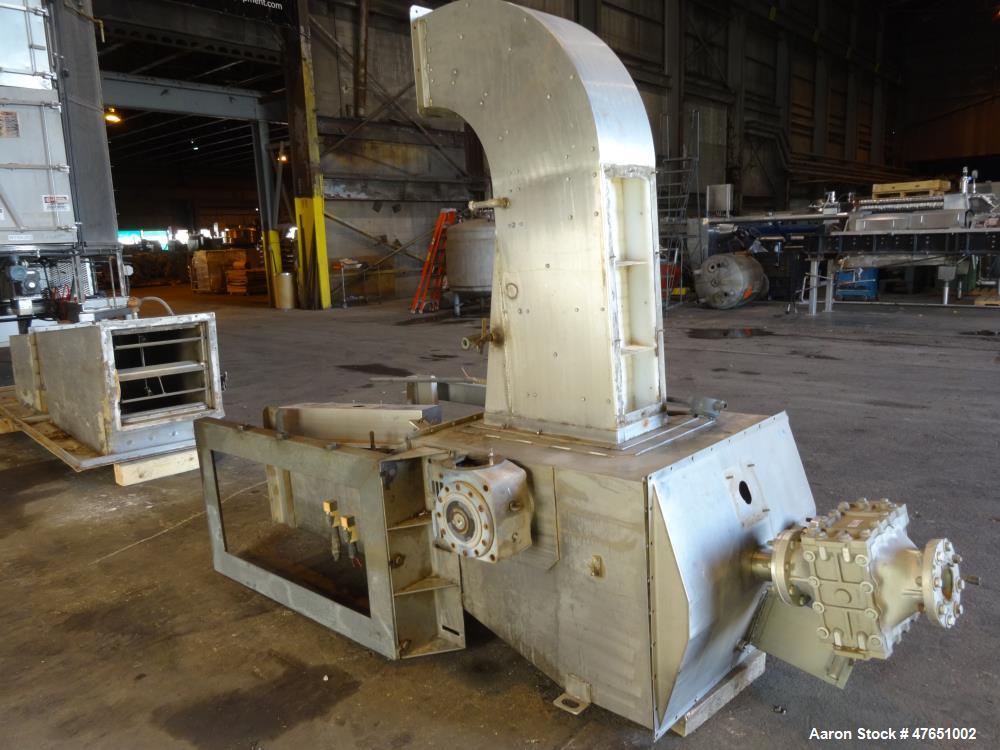

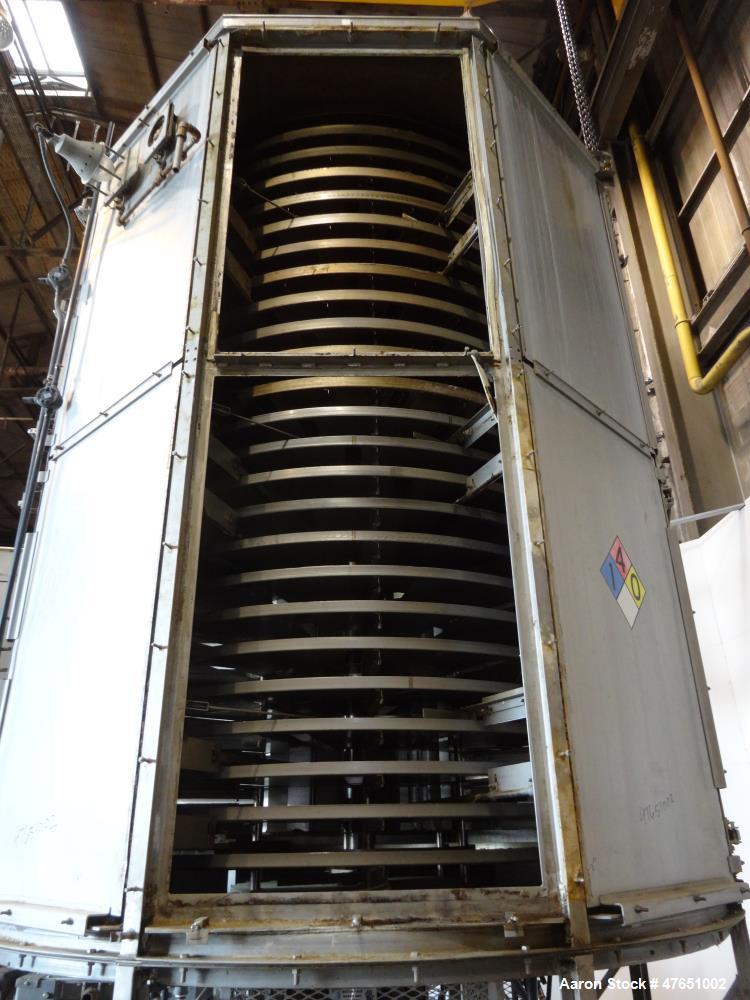

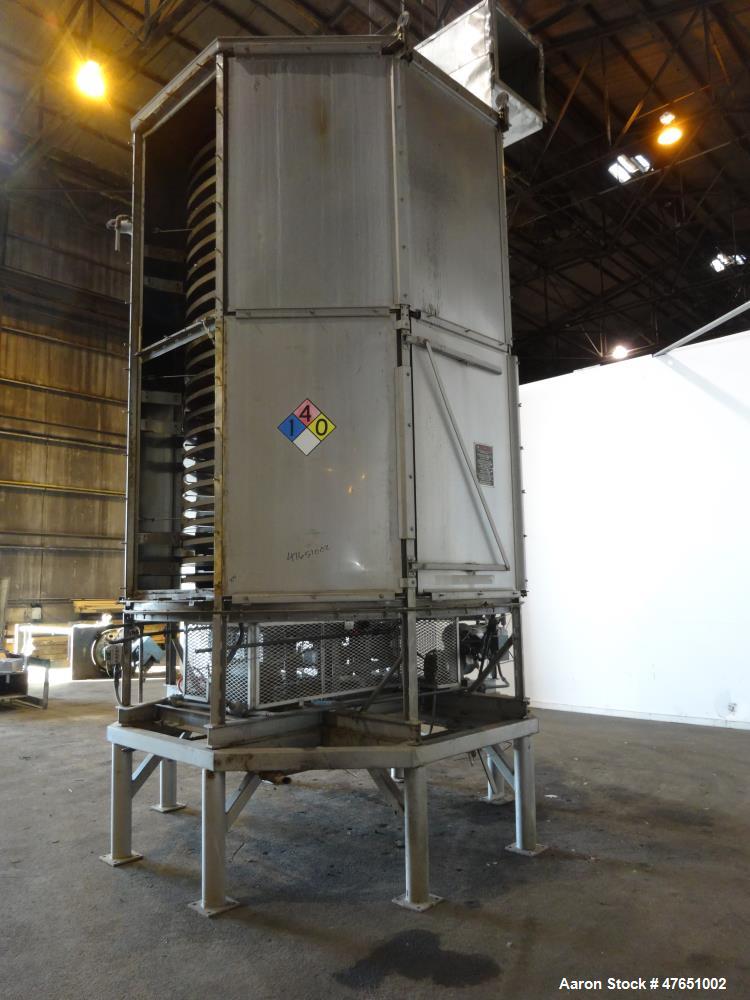

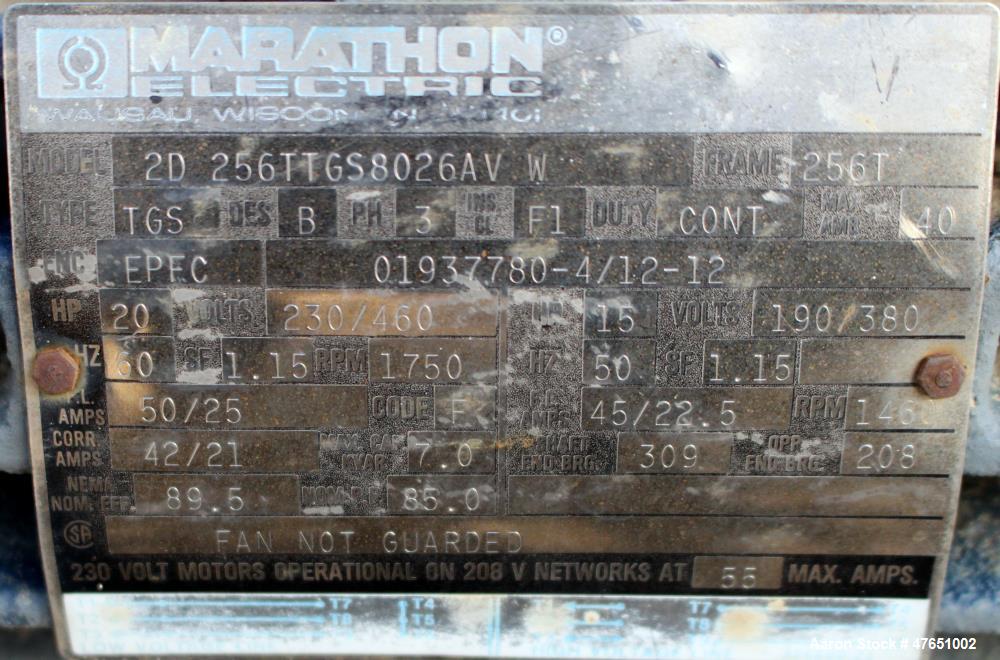

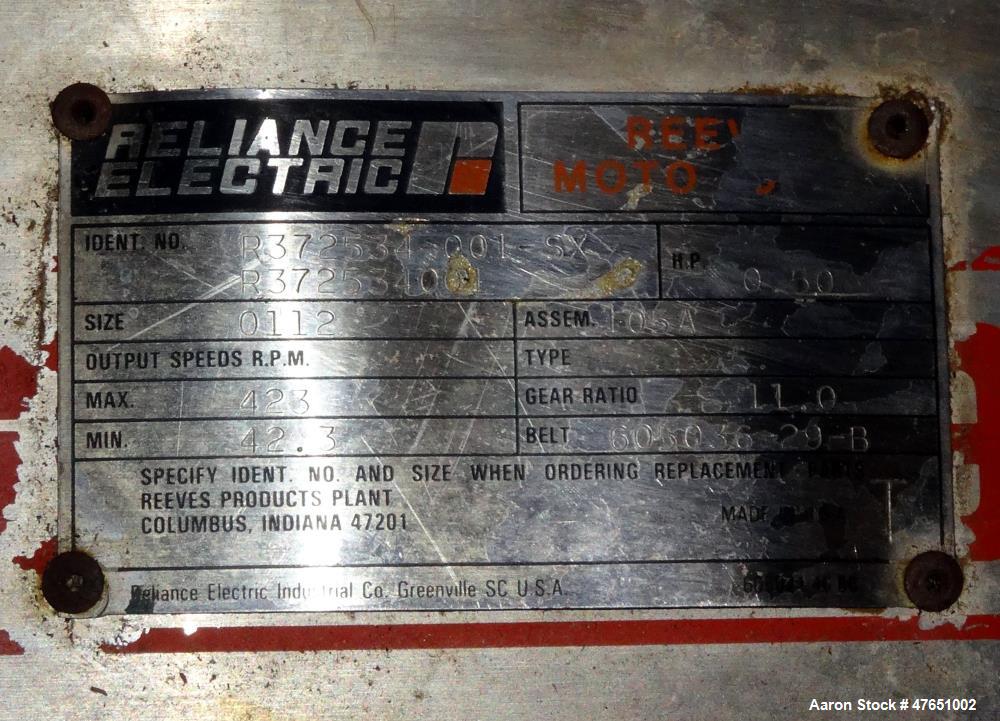

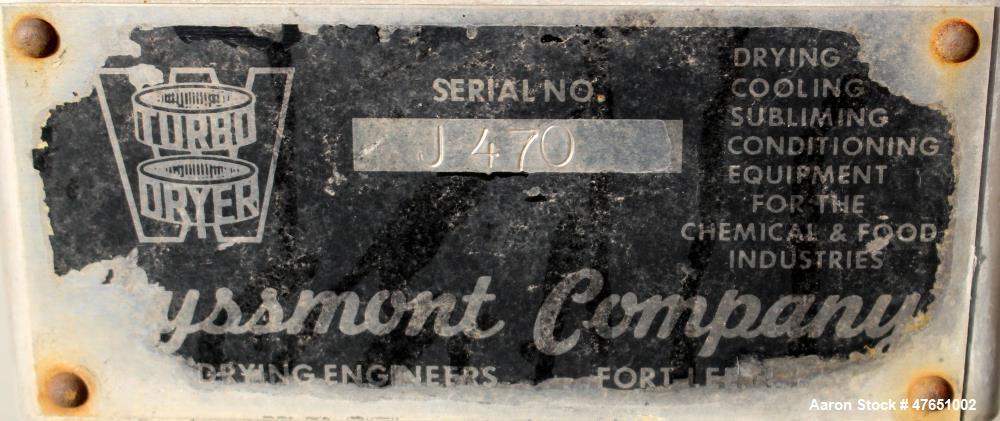

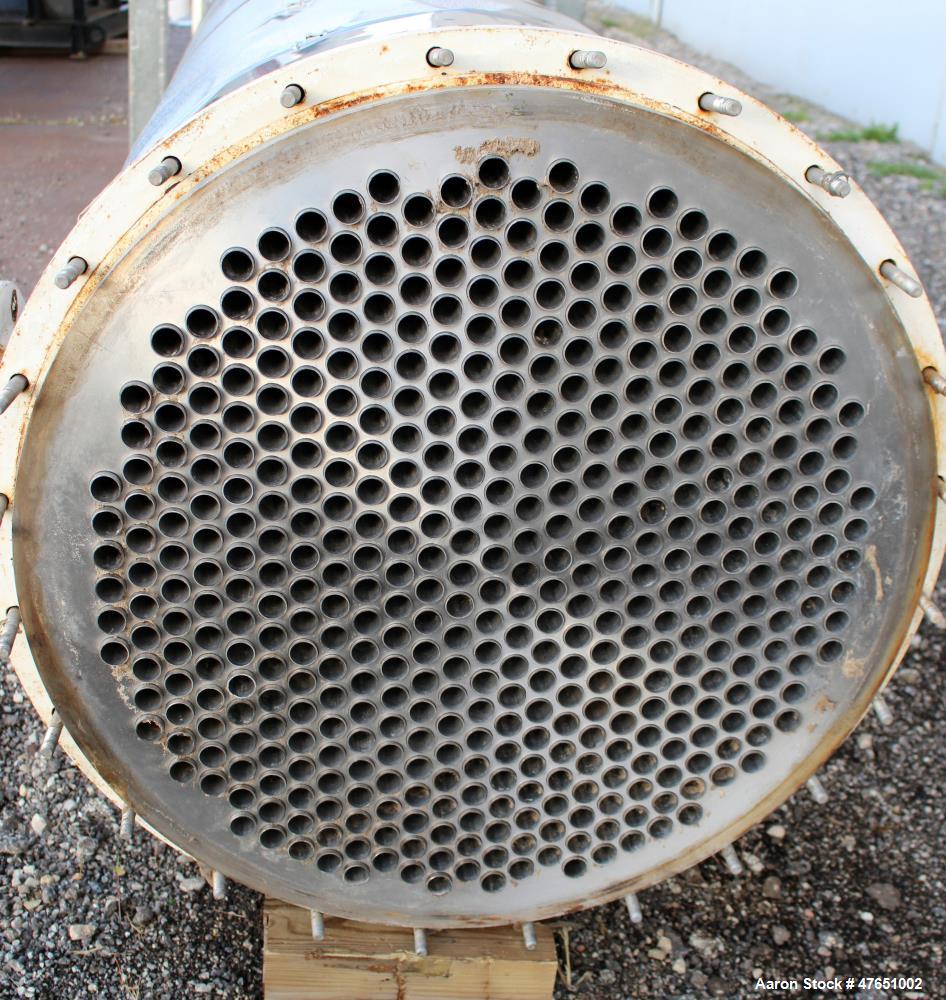

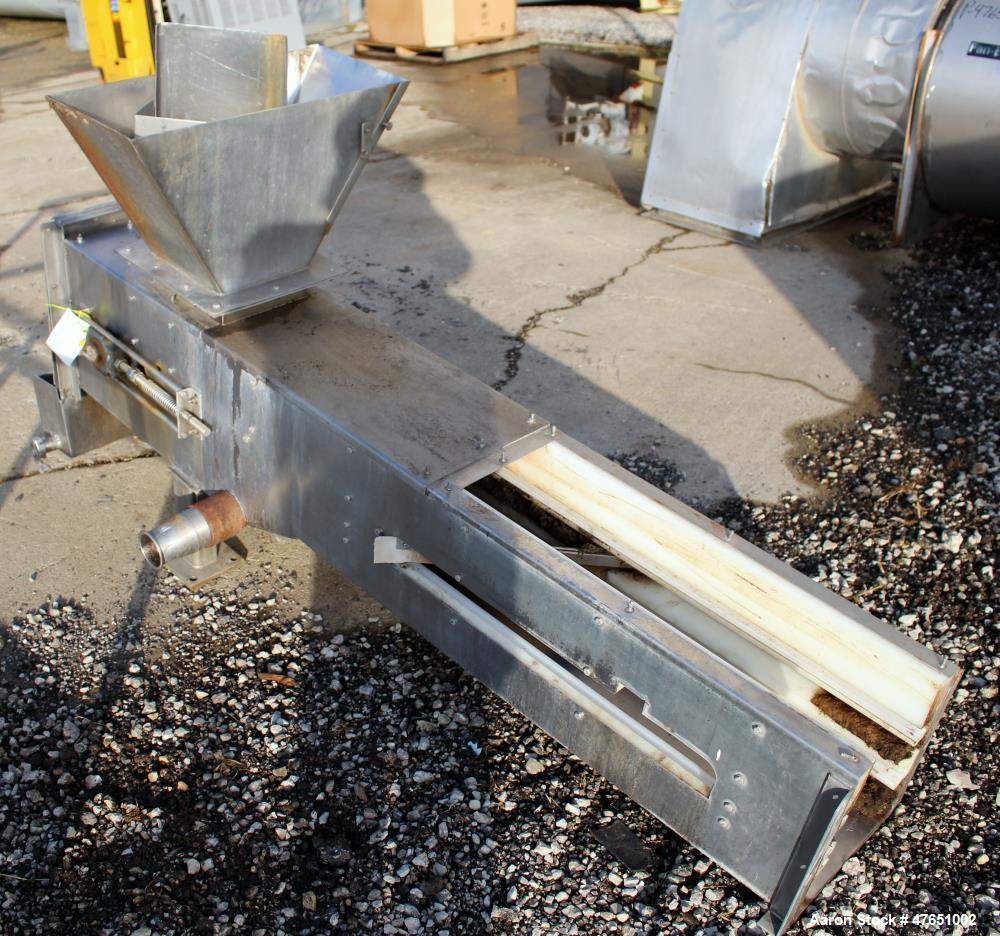

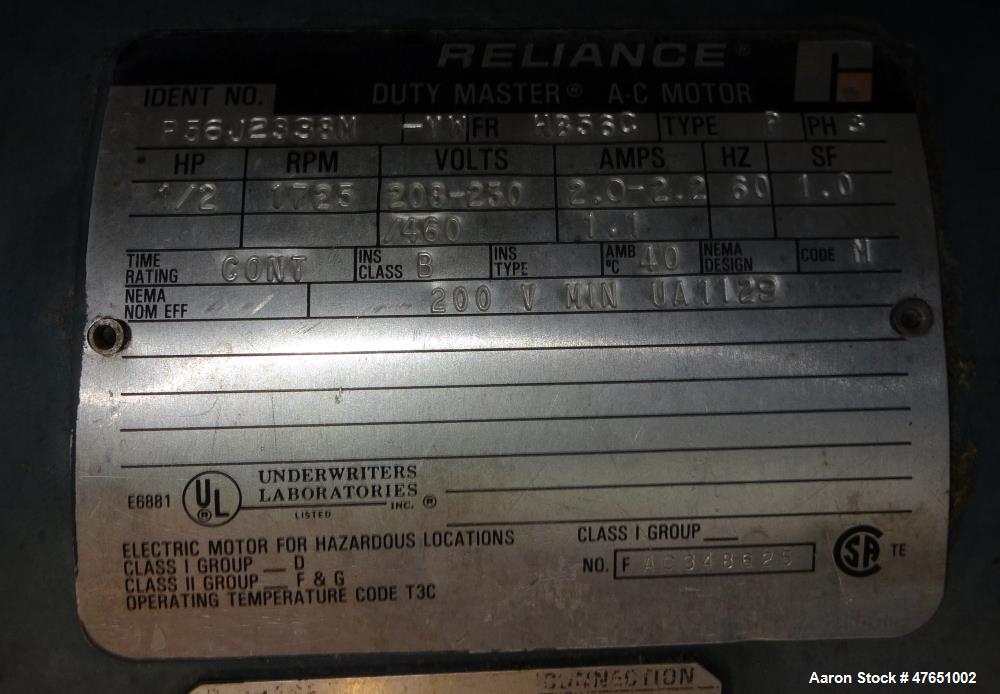

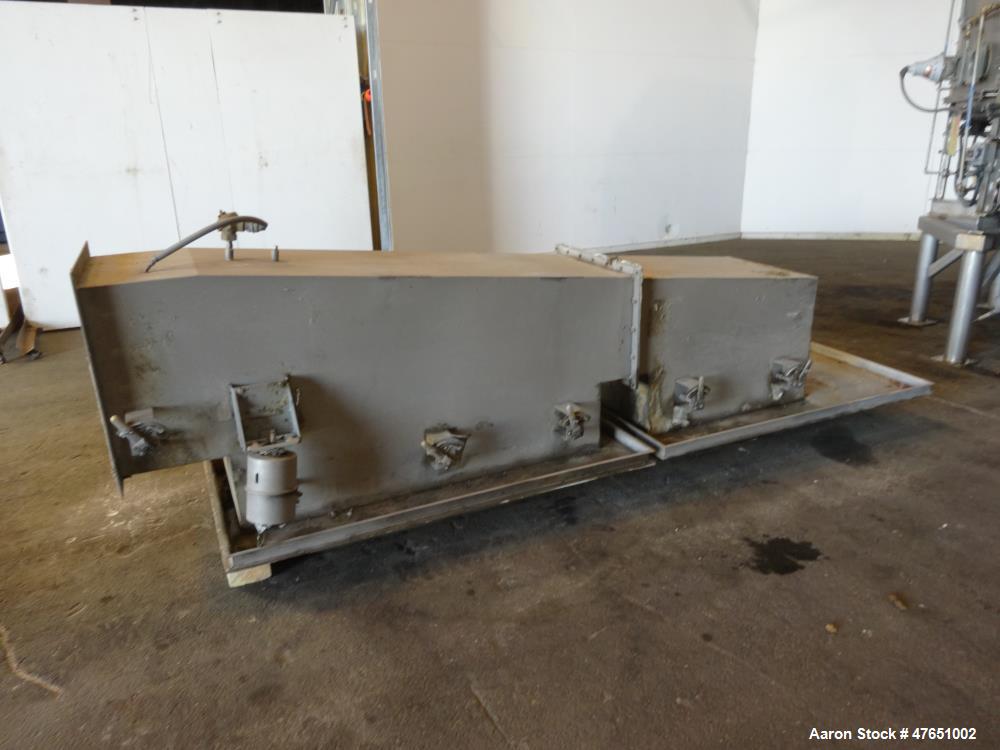

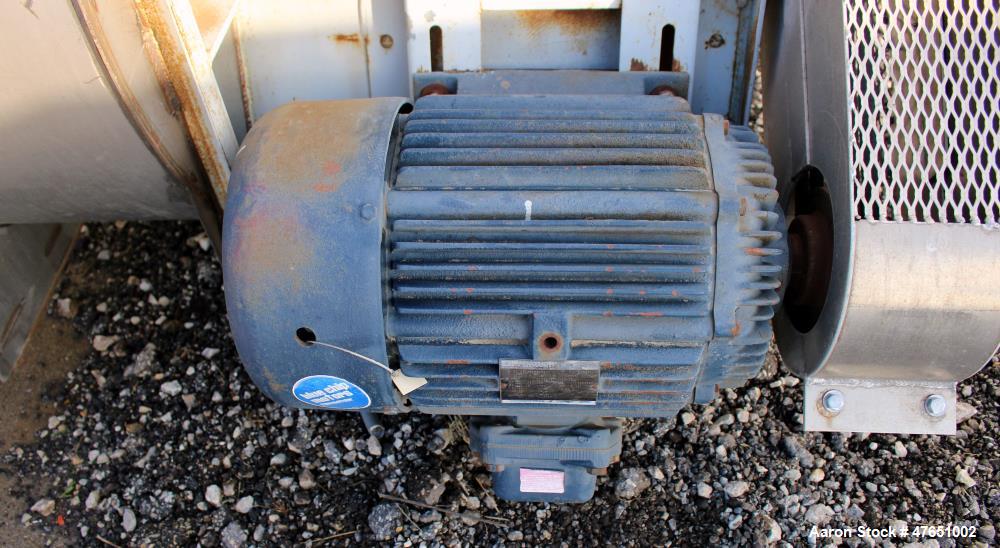

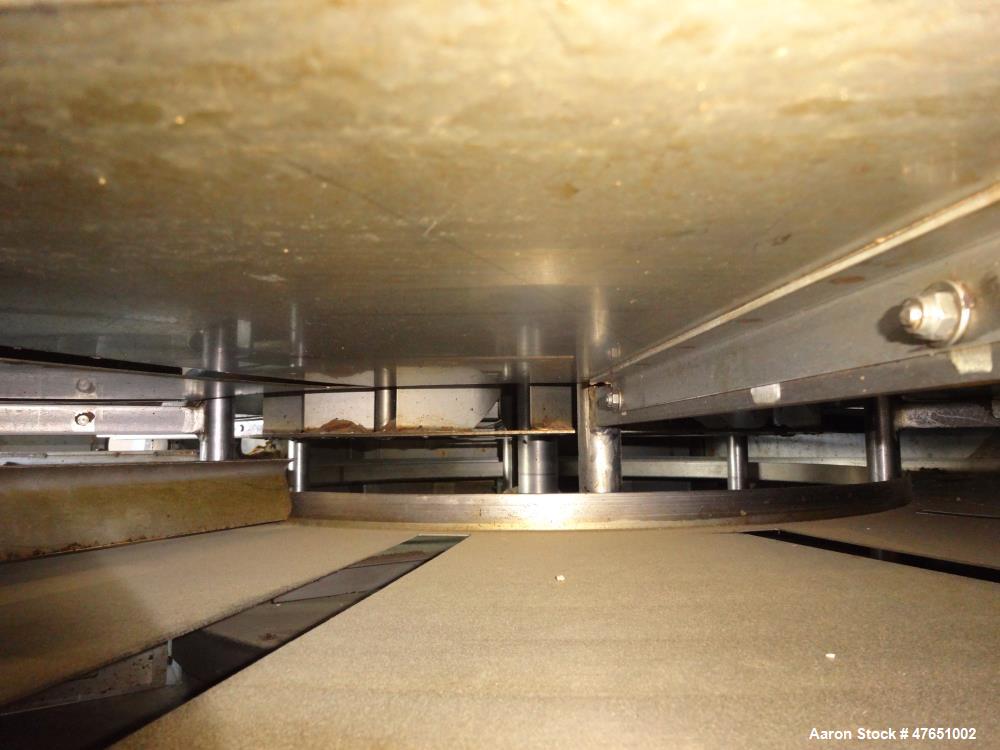

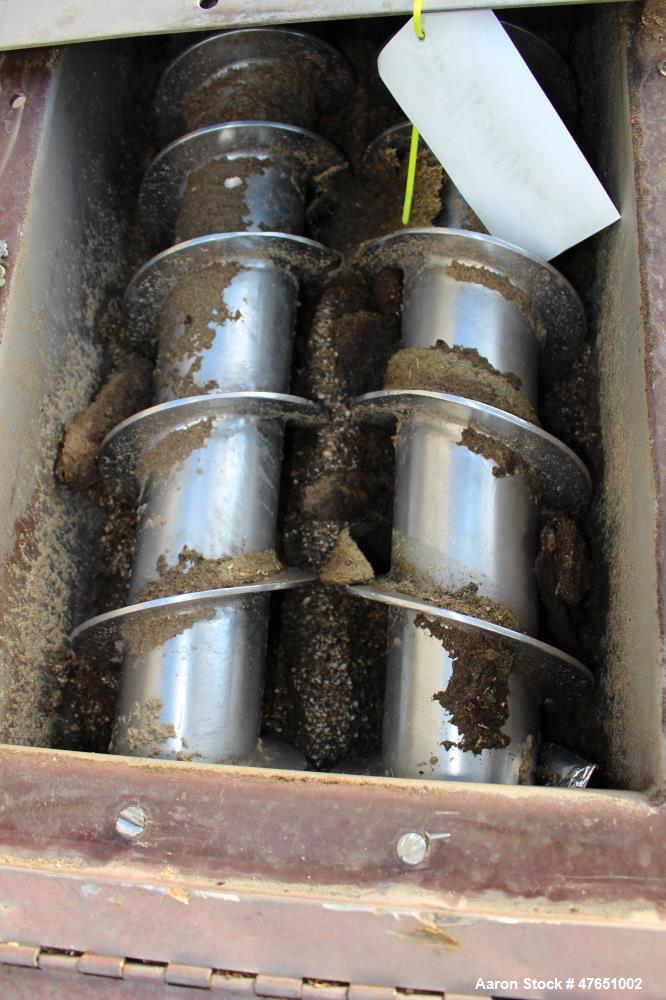

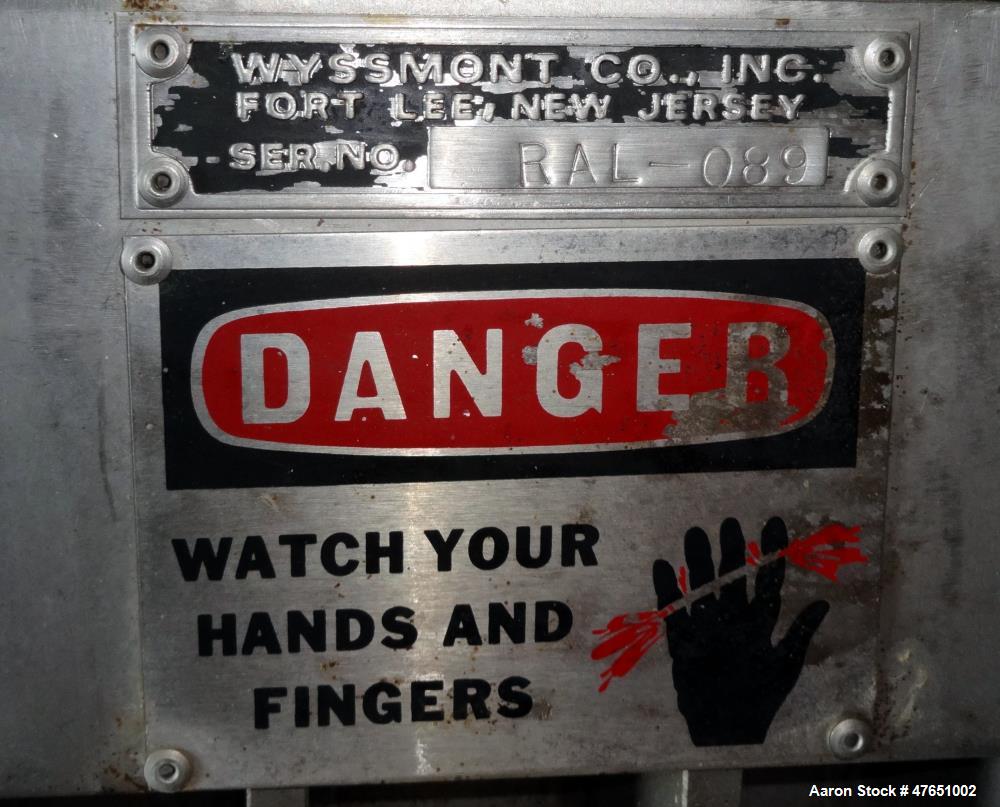

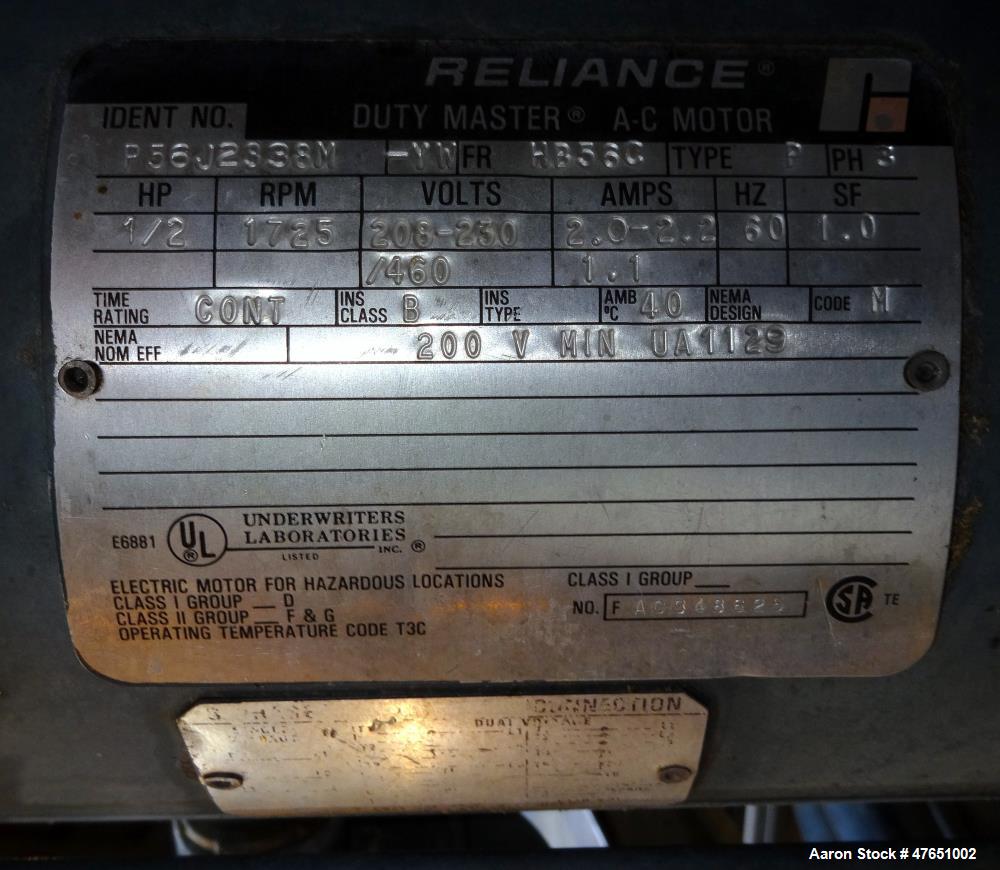

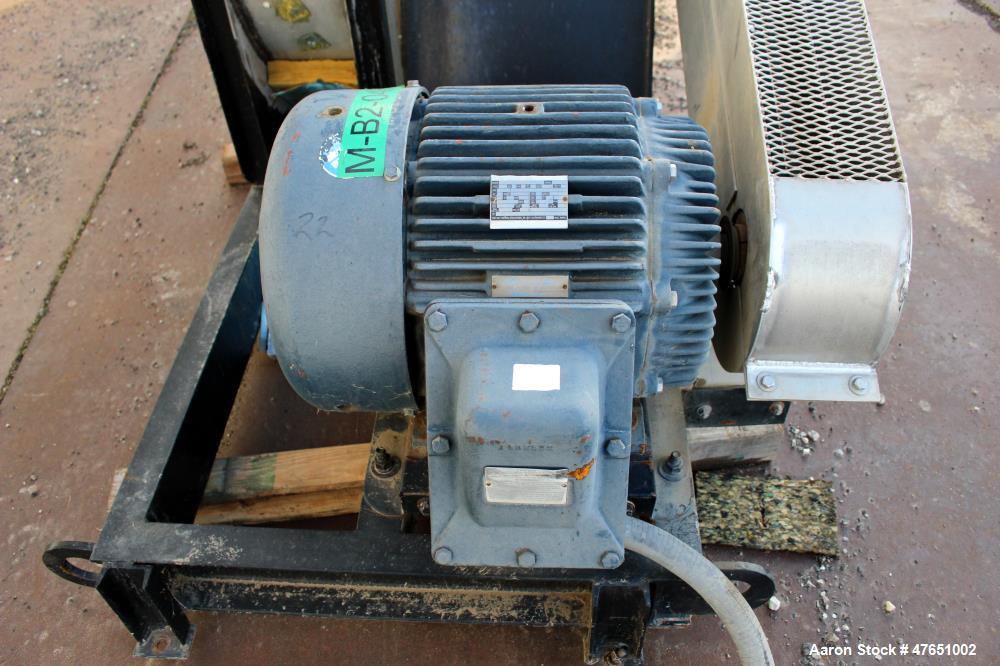

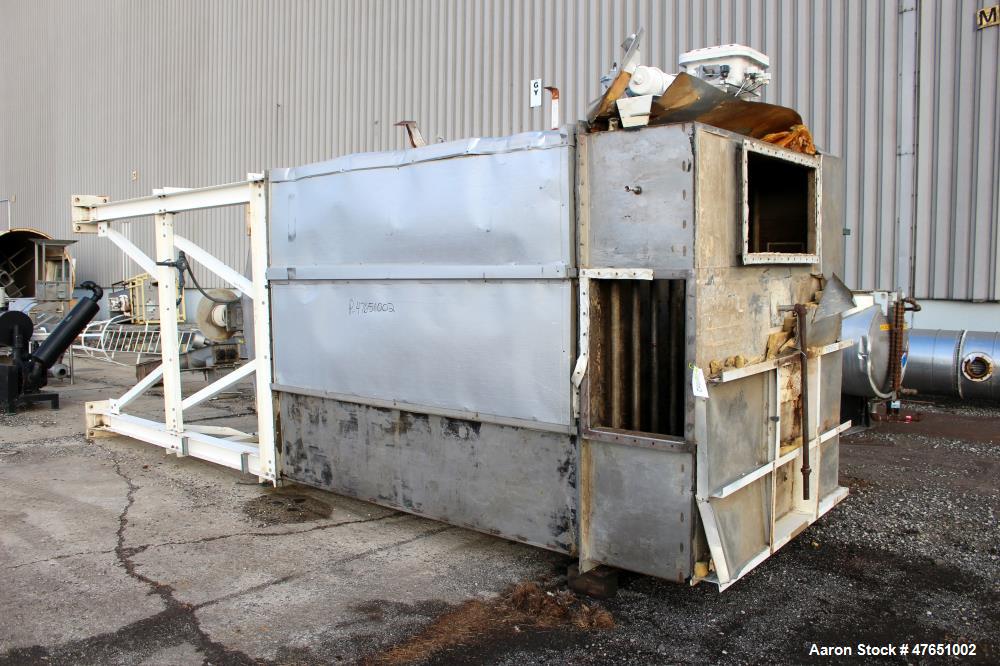

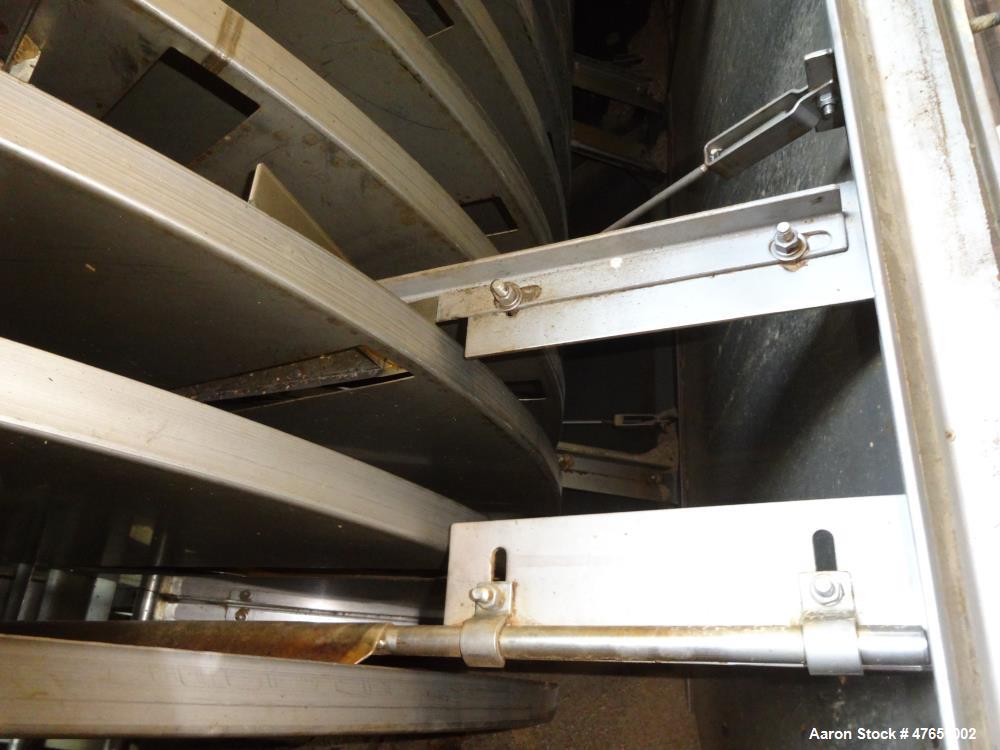

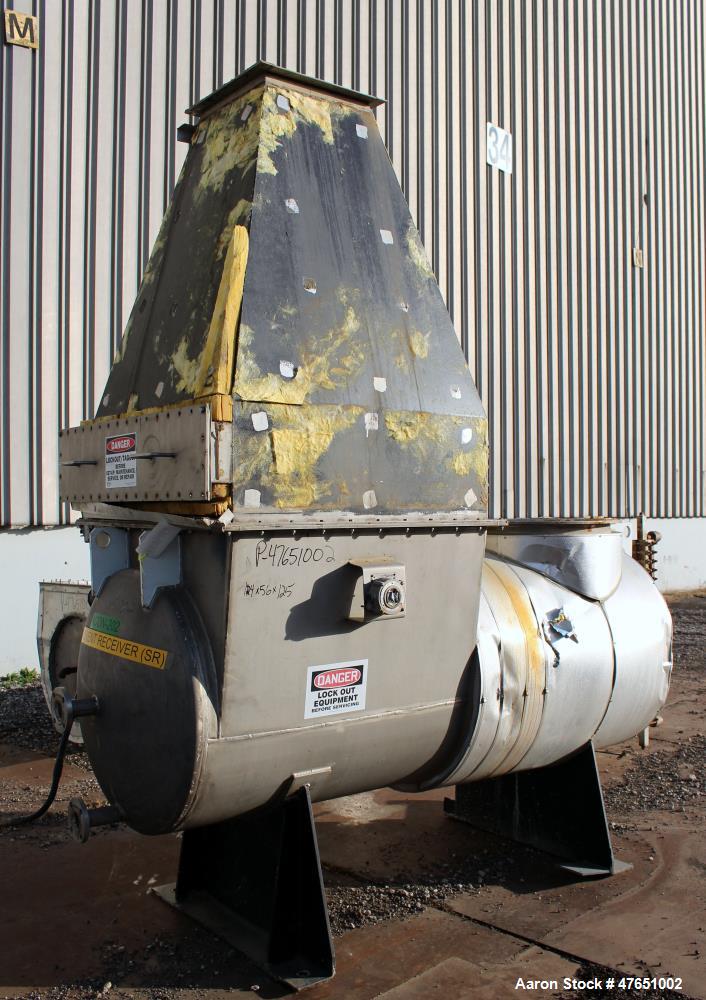

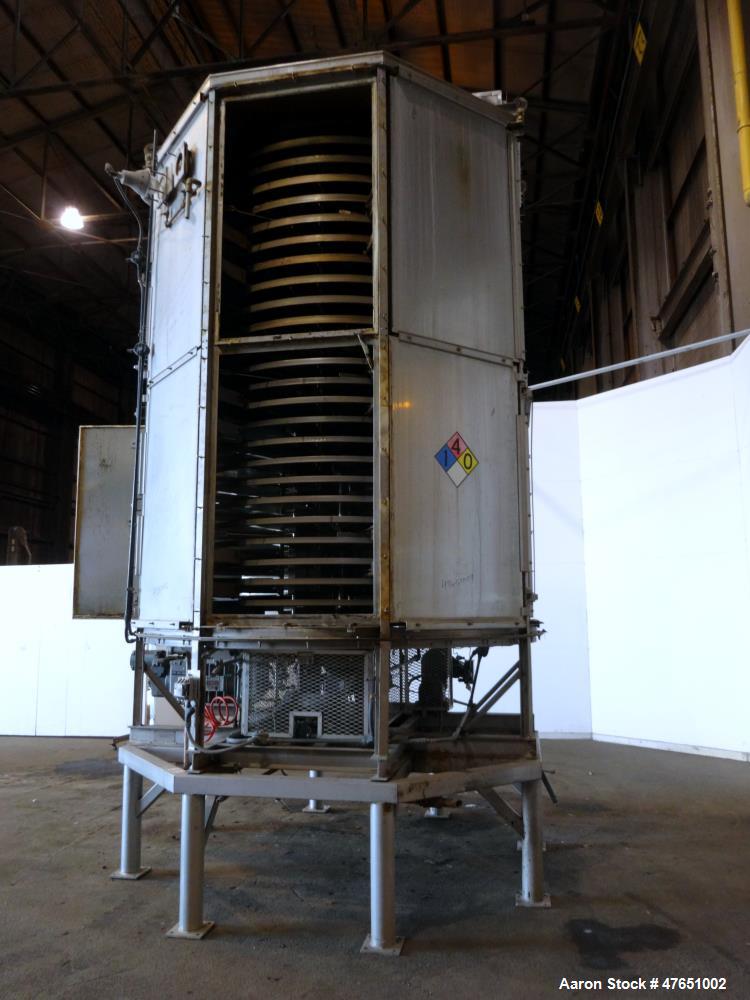

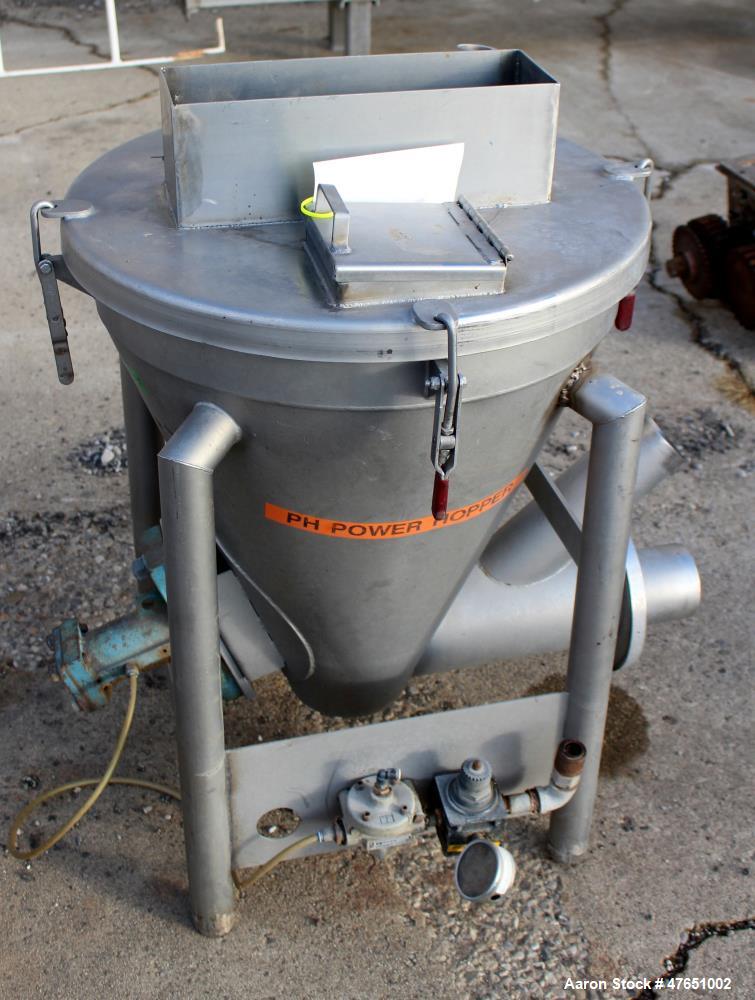

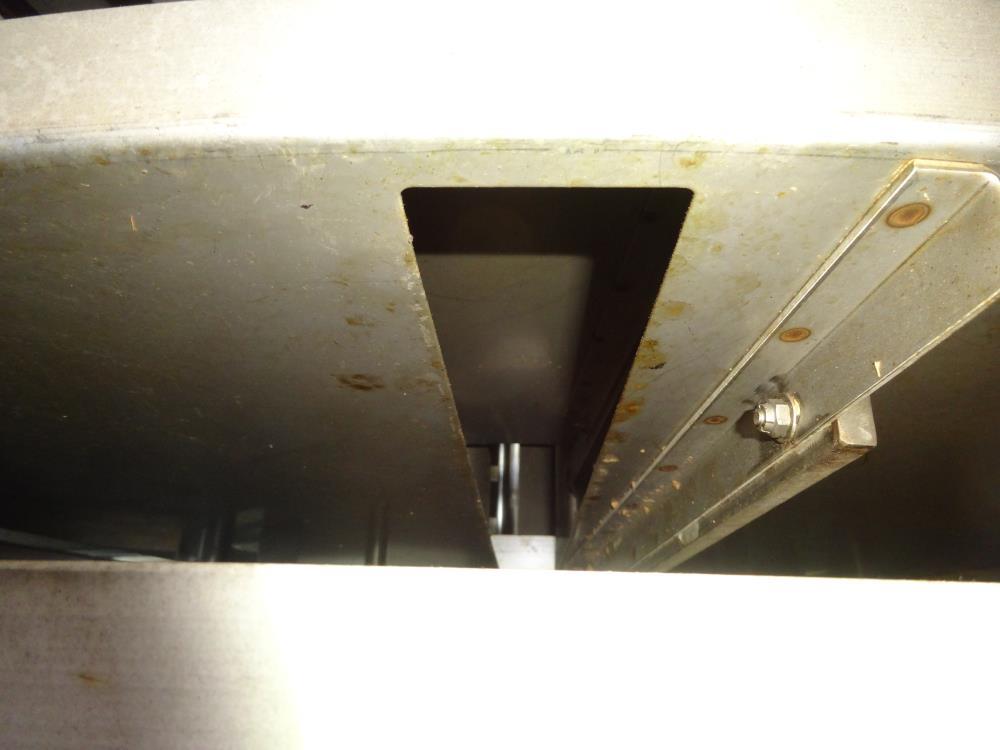

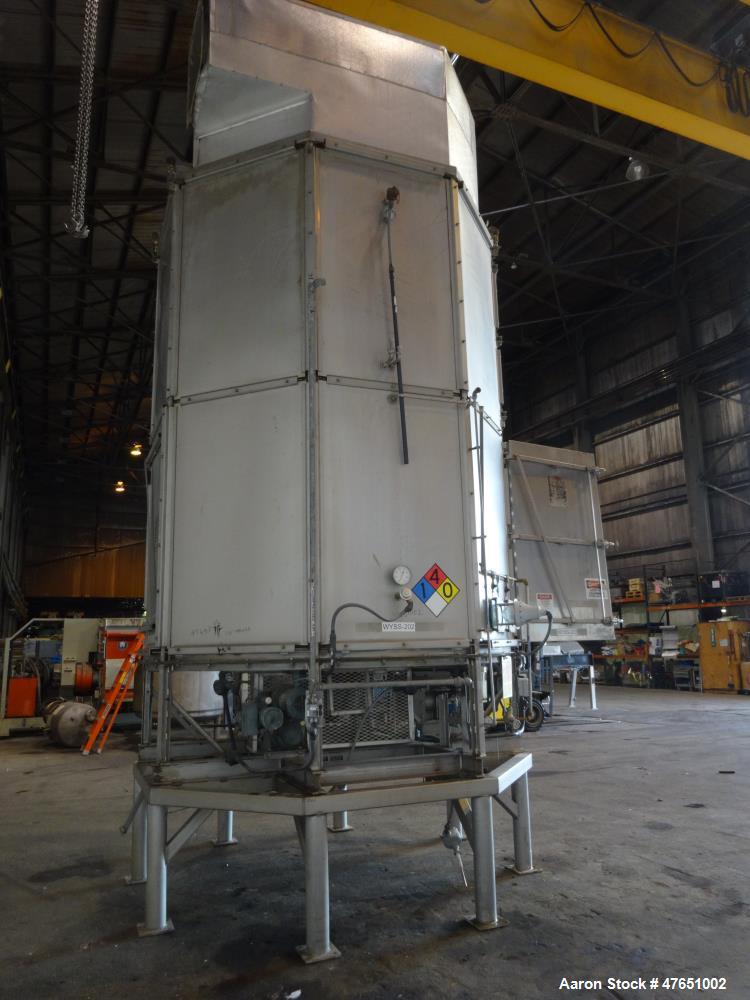

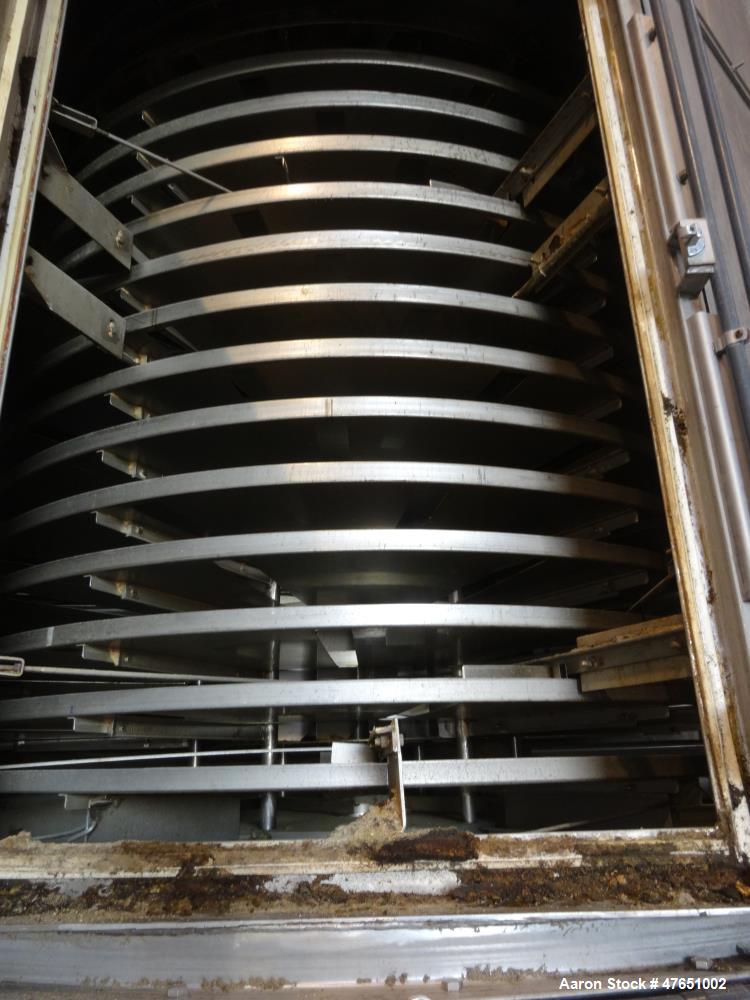

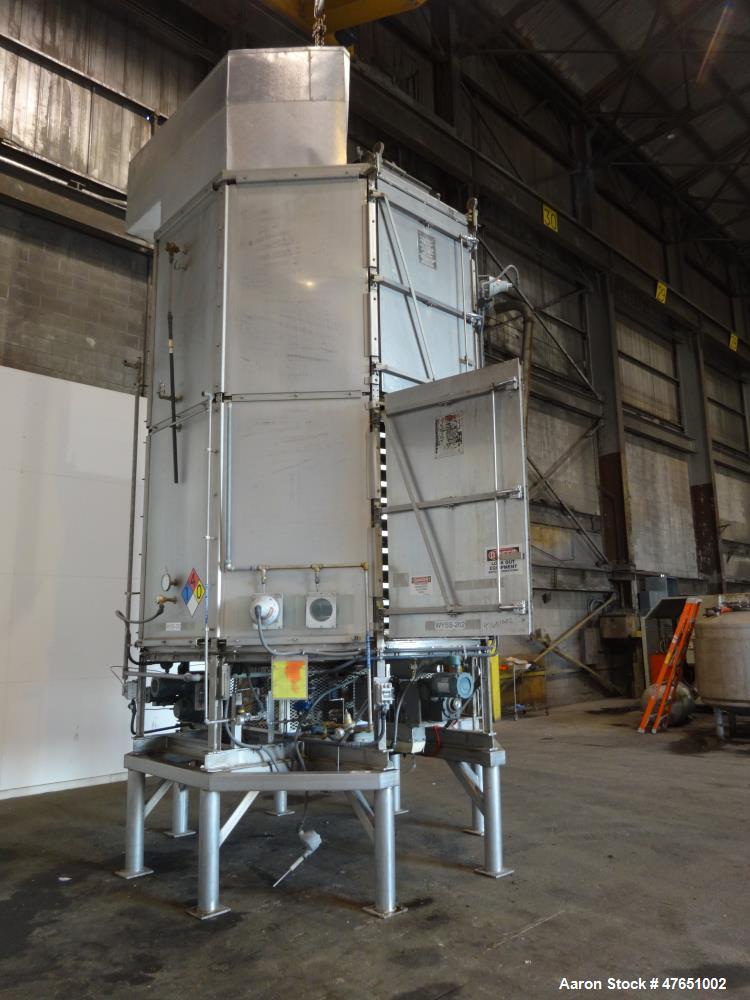

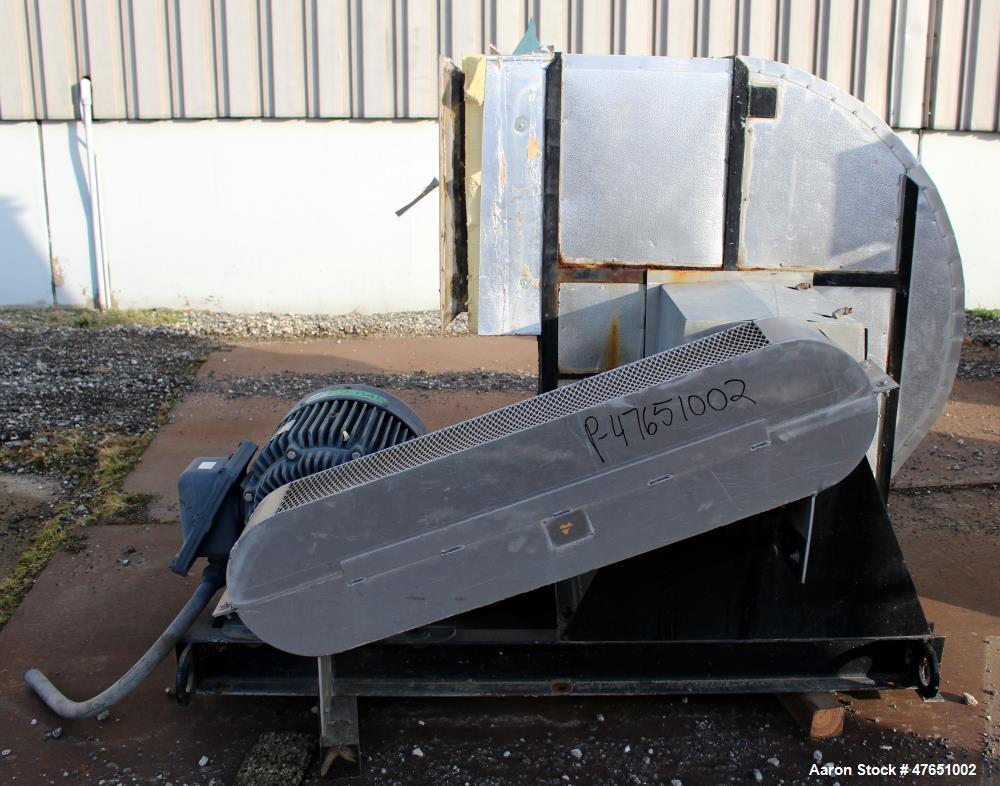

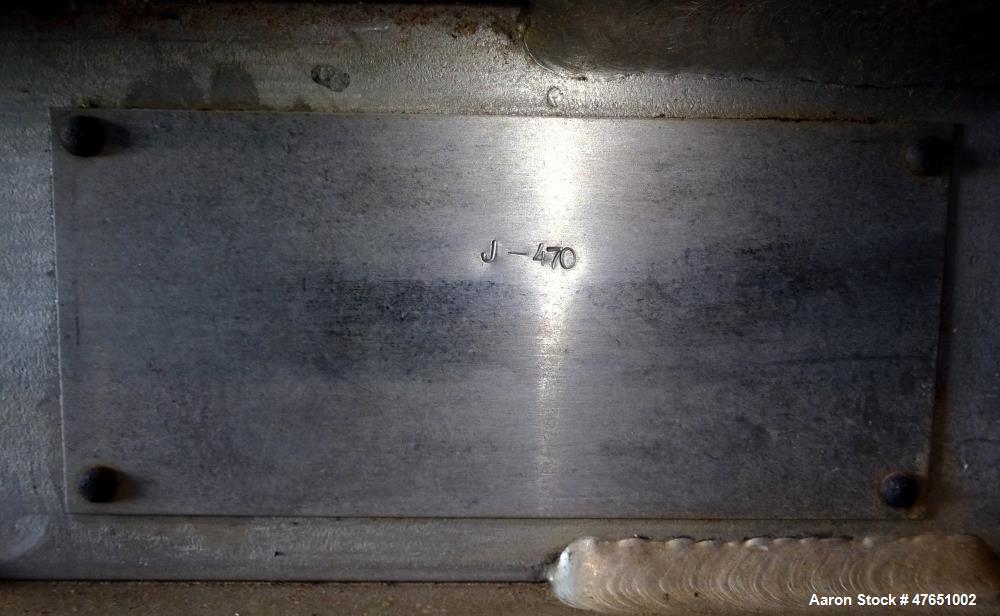

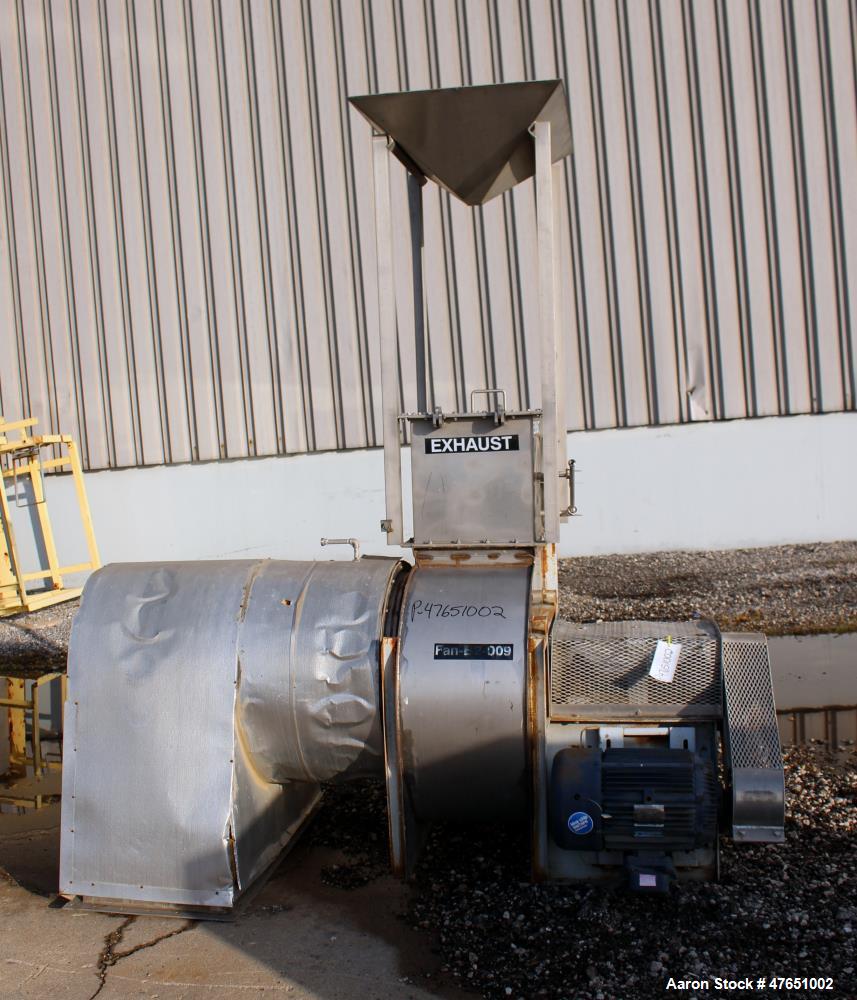

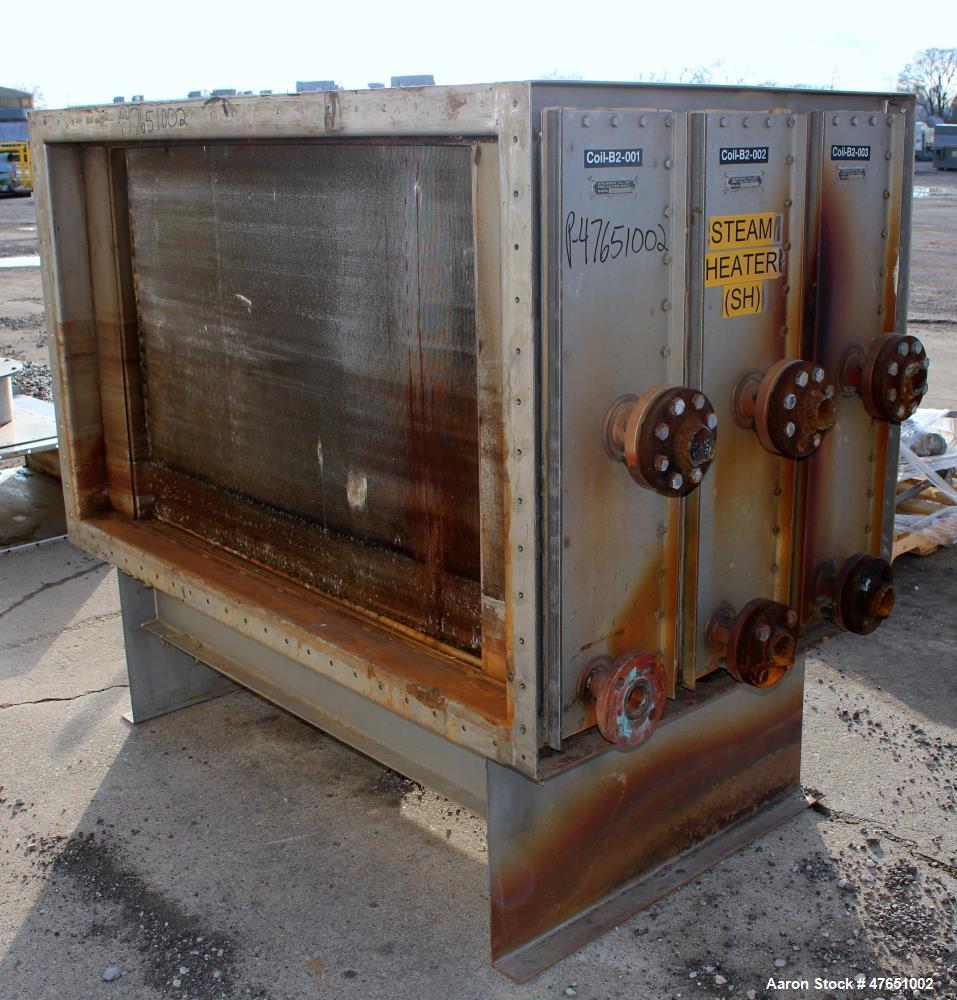

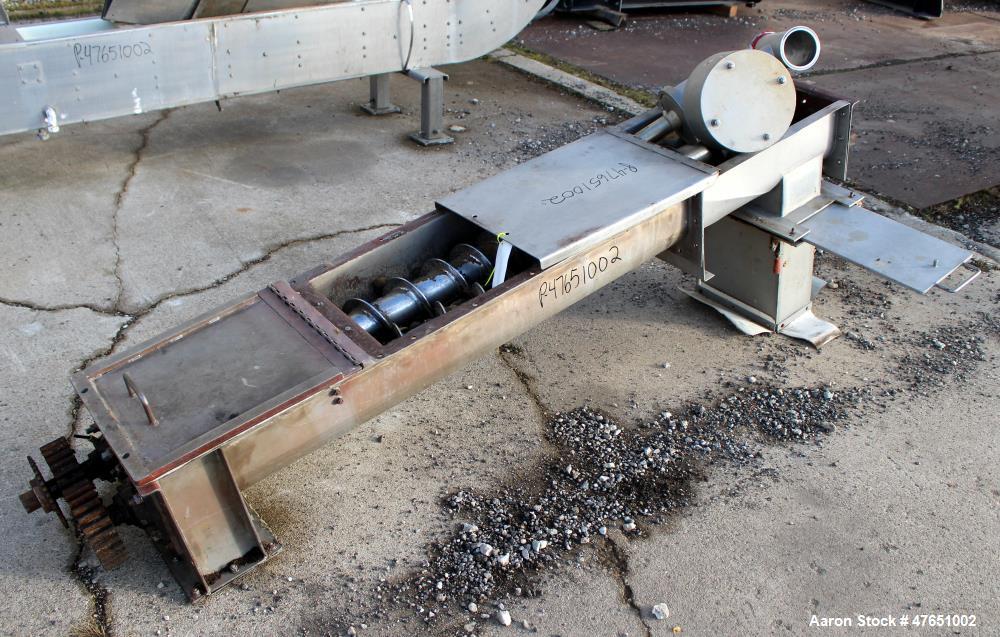

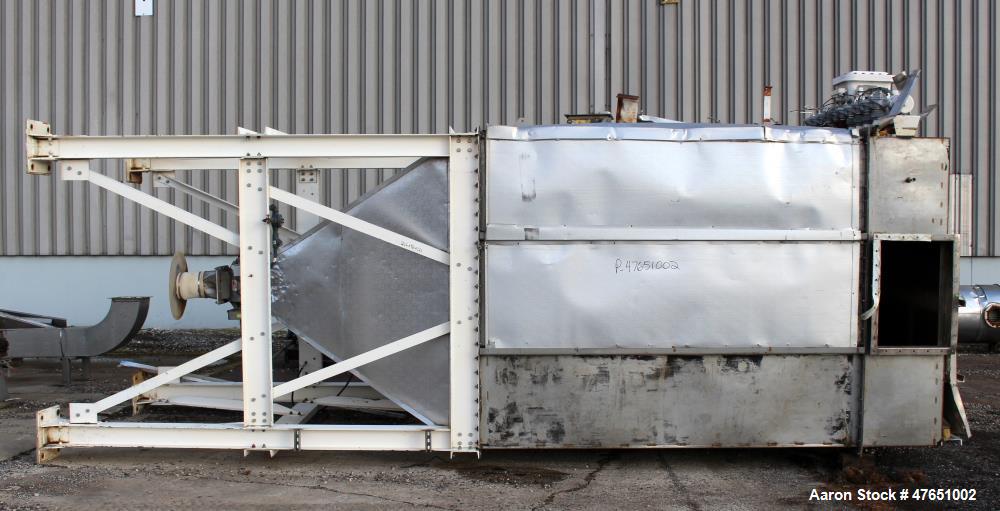

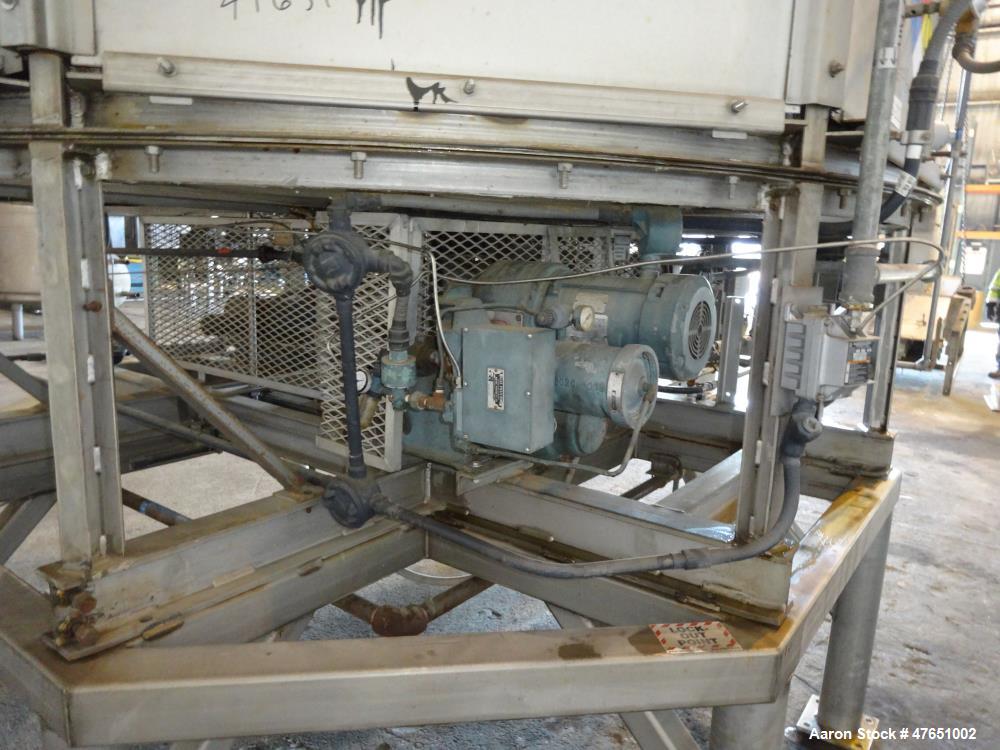

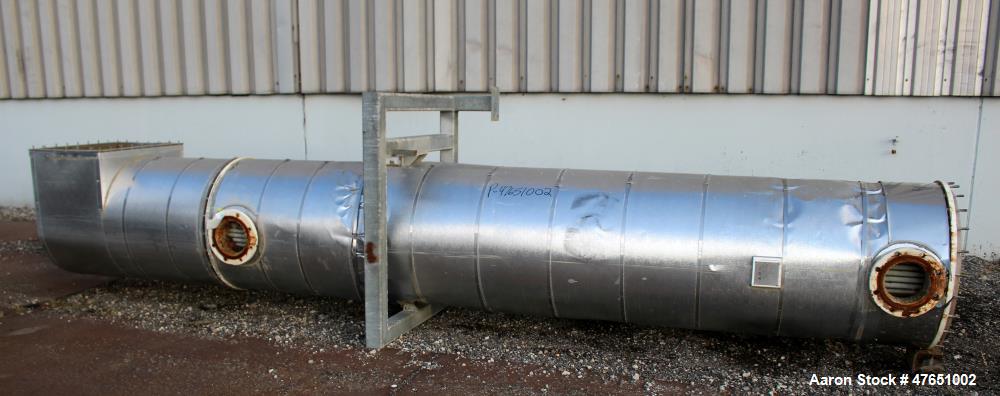

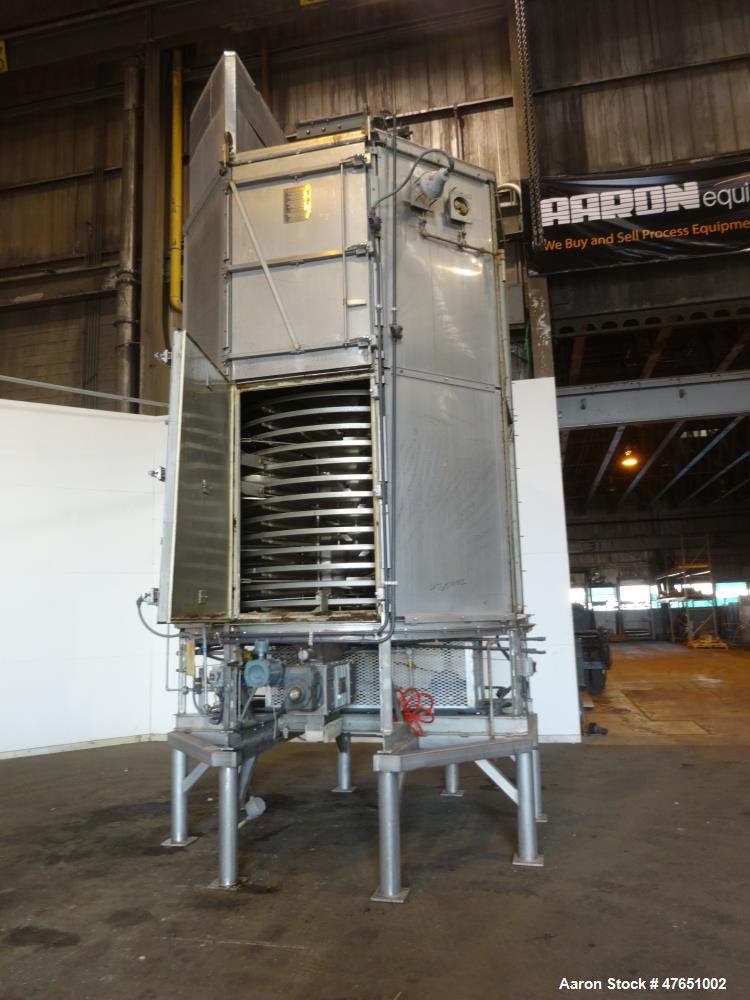

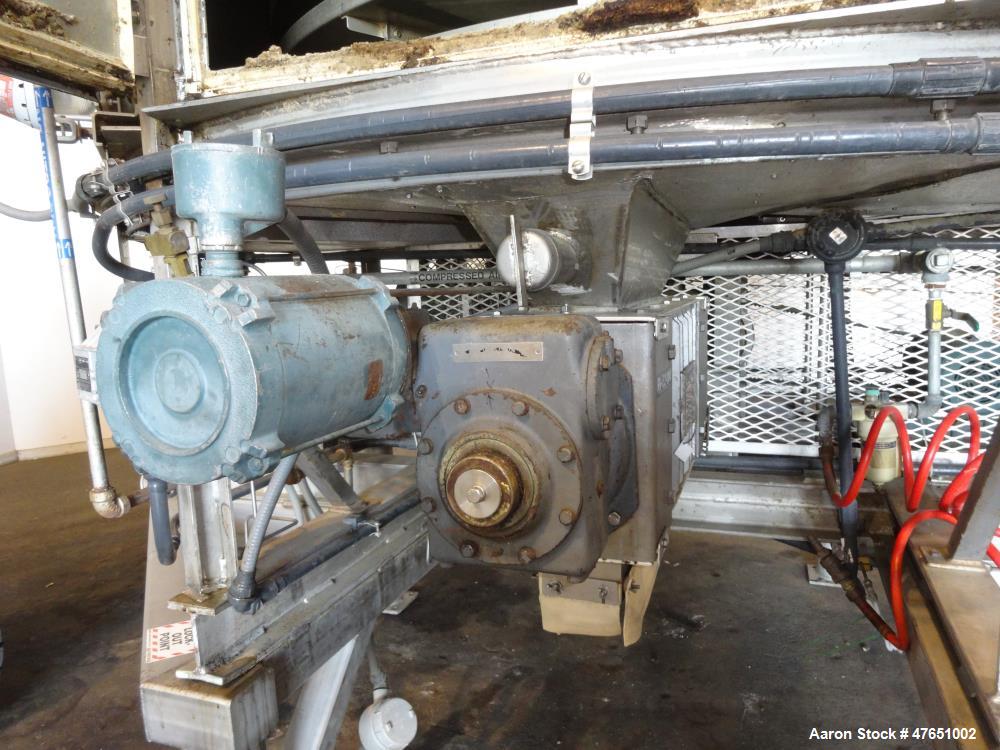

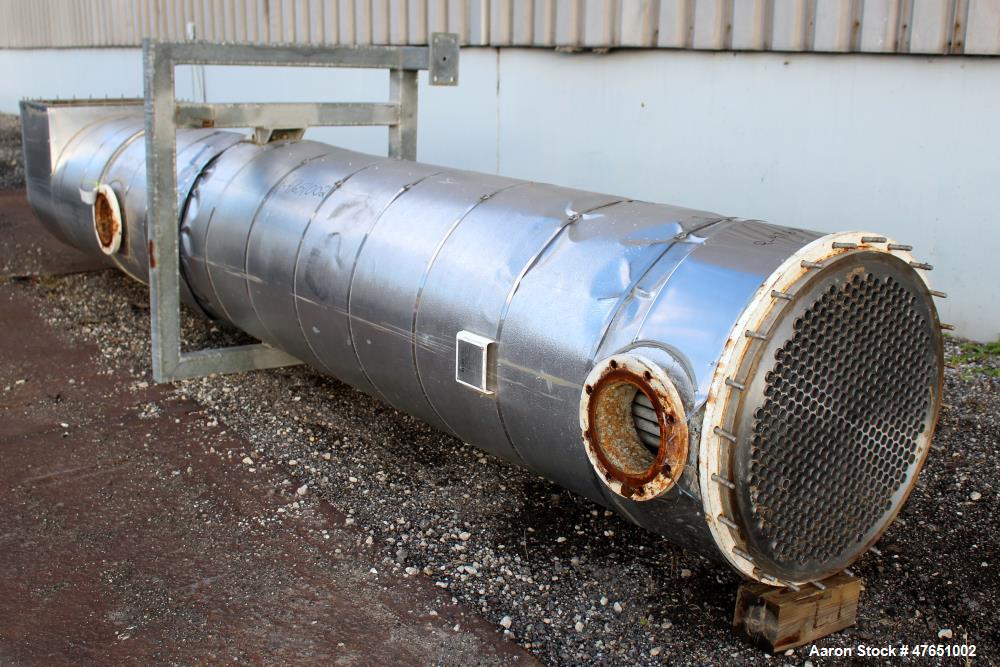

Used- Wyssmont Turbo-Dryer, Model N-25-28, 304 Stainless Steel. Wet feed at 70 degrees F. 675 pounds per hour, dry feed 171 pounds per hour. Entrainer flow to drying zone 7,359 ACFM at 310 degrees F., heat consumption 1,293,240 BTU/hour, (1487 pounds/hour), exhaust 6,674 ACFM at 220 degrees F., dryer temperature 220 degree F. on top, 280 degree F. on bottom. Unit approximate 114" diameter x 16 tall. (13) PTFF coated 22" wide x 2" tall lip x 4-7/8" spaced top trays with adjustable wipers, (12) 22" Wide x 1-1/2" tall lip x 4-7/8" spaced bottom trays with adjustable wipers, driven by a 1/2hp motor. Top inlet with a Wyssmont Multi-screw feeder, model MSF-1554-173, (2) 6" diameter x approximate 80" long screws. (1) Turbo fan assembly driven by a 1hp gear motor. Off center bottom discharge with a rotary valve, driven by a 1/2hp gear motor. Dryer mounts on a 33" tall stainless steel frame, serial# J-470, built 1995. Includes a Condenser solvent receiver, approximate 1635 square feet condenser, Wyssmont steam heater, Sly model SBR-1011-8 stainless steel dust collector, approximate 1320 square feet filter area, 20hp exhaust fan, 40hp recirculation fan, approximate 10-1/2" wide pleated plastic belt conveyor, and control panels.
