Used- Jeffrey Fluid Bed Dryer, Model TMV

10288037

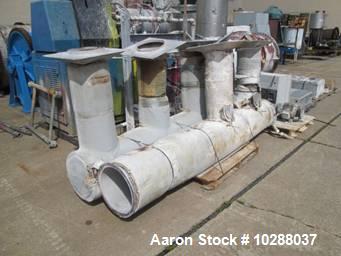

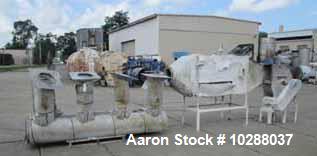

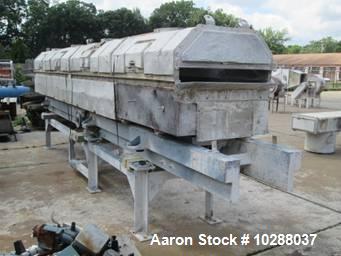

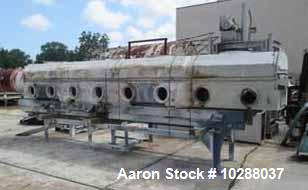

Used- Jeffrey 3' x 20' Fluid Bed Dryer. Gas fired, slotted bed. Model TMV, Stroke 3/8", rpm 700 stainless steel slotted bed, with carbon steel housing and hood. Dryer is set up with 4 zones, five feet long each. Last used as 3 zones for heat, 1 zone for cooling. Hood is insulated and bolted on. Hood is equipped with (4) 20" outlets, with rubber boots. Hood is then connected to a exhuast manifold, also insulated. 3 hp shaker motor, belt driven with belt guard. 3 phase 230/460 voltage. Gas Burner, with gas trane and 10 hp Buffalo blower. Blower is belt driven with a 14" x 20" discharge. Prints state gas burner is rated for 2 million BTU. Equipped with 5 hp Buffalo blower and manifold for cooling zone. Equipped with Allen Bradley processor in cabinet. Equipped with control panel with motor starters. Installation and operations manual included.
